5.2 Dimensions
5.2.1 90 kW Enclosure
130BE557.10
800 mm
2200 mm (86.6 in)
605 mm
31.5 in
23.8 in
17.5 mm (0.69 in)
32.25 mm (1.27 in)
46.5 mm (1.83 in)
46.5 mm (1.83 in)
110 mm (4.33 in)
223 mm (8.78 in)
486.5 mm (19.15 in)
686.5 mm (27.03 in)
1400.0 mm (55.12 in)
792.0 mm (31.18 in)
D E
A B
C C
A Front view B Side view C Center of gravity
D Bottom view E Top view

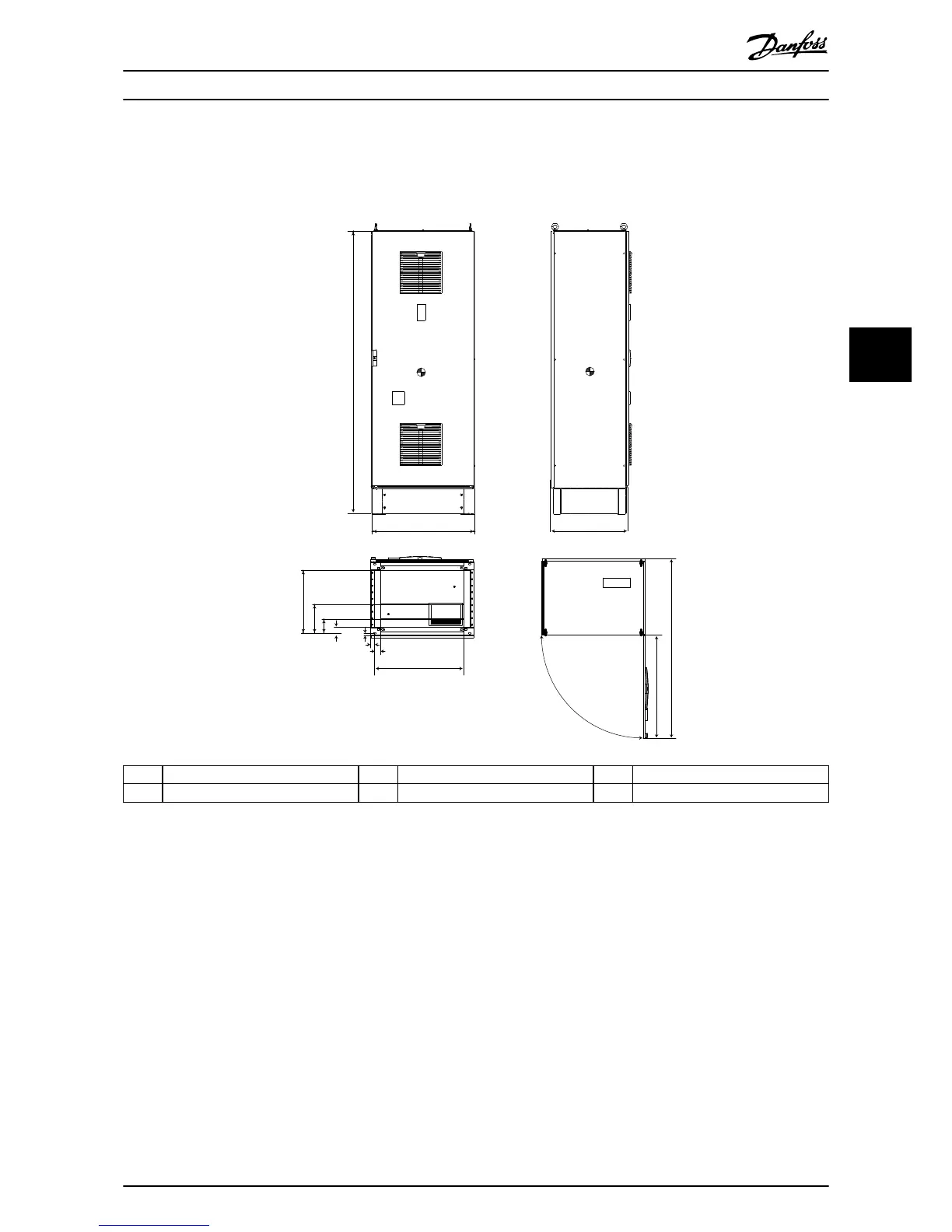

Illustration 5.1 Front, Side Dimensions, Door Clearance, and Center of Gravity for 90 kW Enclosure
