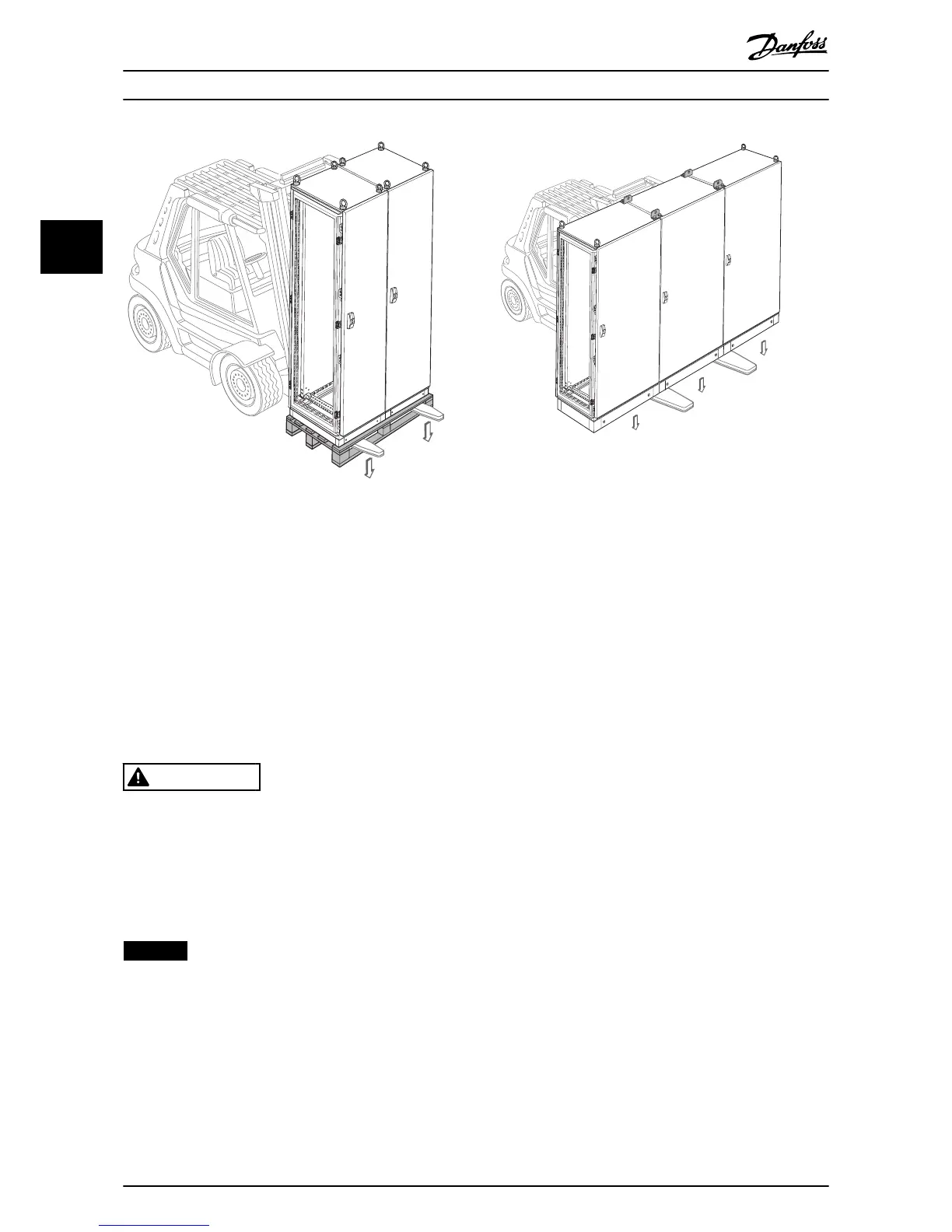

Illustration 3.9 Approved Procedure for Fork Lift Transport of a
Triple Enclosure
3.5.4 Storage
Store the unit in a dry location. Keep the equipment
sealed in its packaging until installation.
Periodic forming (capacitor charging) is not necessary
during storage.
3.6
Assembling a Standard Unit with a Pedestal
In most applications, the pedestal is used to allow airow
into the unit cabinets to provide proper cooling.
CAUTION
The pedestal/plinth can be installed already, or delivered
as lose component, depending on the customer request
or transport limitations. The pedestal/plinth can be
required to allow air ow for proper cooling and/or cable
termination for maximum bending space.
3.6.1 Positioning the Pedestal
NOTICE
Prepare the mechanical installation of the VLT
®
Plus
Panel carefully to ensure a proper result and avoid extra
work during installation. To become familiar with the
space demands, start taking a close look at the
mechanical drawings in this manual and in the customer
documentation, delivered with the VLT
®
Plus Panel for
latest information.
1. Place the pedestal in desired location, paying
attention to the following:
•
Ambient conditions (see
chapter 5.1 Technical Design Consider-
ations)
•
Cooling requirements (see
chapter 3.2 Cooling)
•
Unit dimensions and door clearances
(see chapter 5.2 Dimensions)
2. Pull the cables (mains, 230 V supply, and motor
cables) up through the pedestal.
3. Bolt the pedestal to the oor.
Mechanical Installation
VLT
®
Plus Panel
18 Danfoss A/S © 09/2015 All rights reserved. MG13B102
