Danfoss VLT series Installation Guide

5.2.2 250 kW Enclosure
130BE558.10
1000 mm
2200 mm (86.6 in)
605 mm
39.4 in
23.8 in
17
.5 mm (0.69 in)
32.25 mm
(1.27 in)
46.5 mm
(1.83 in)
46.5 mm (1.83 in)
110 mm (4.33 in) 223 mm (8.78 in)
486.5 mm (19.15 in)
478.75 mm
(18.85 in)
D E
400.0 mm
(15.75 in)
1100.0 mm (43.31 in)
500.0 mm (19.69 in)
A B
C C
A Front view B Side view C Center of gravity
D Bottom view E Top view

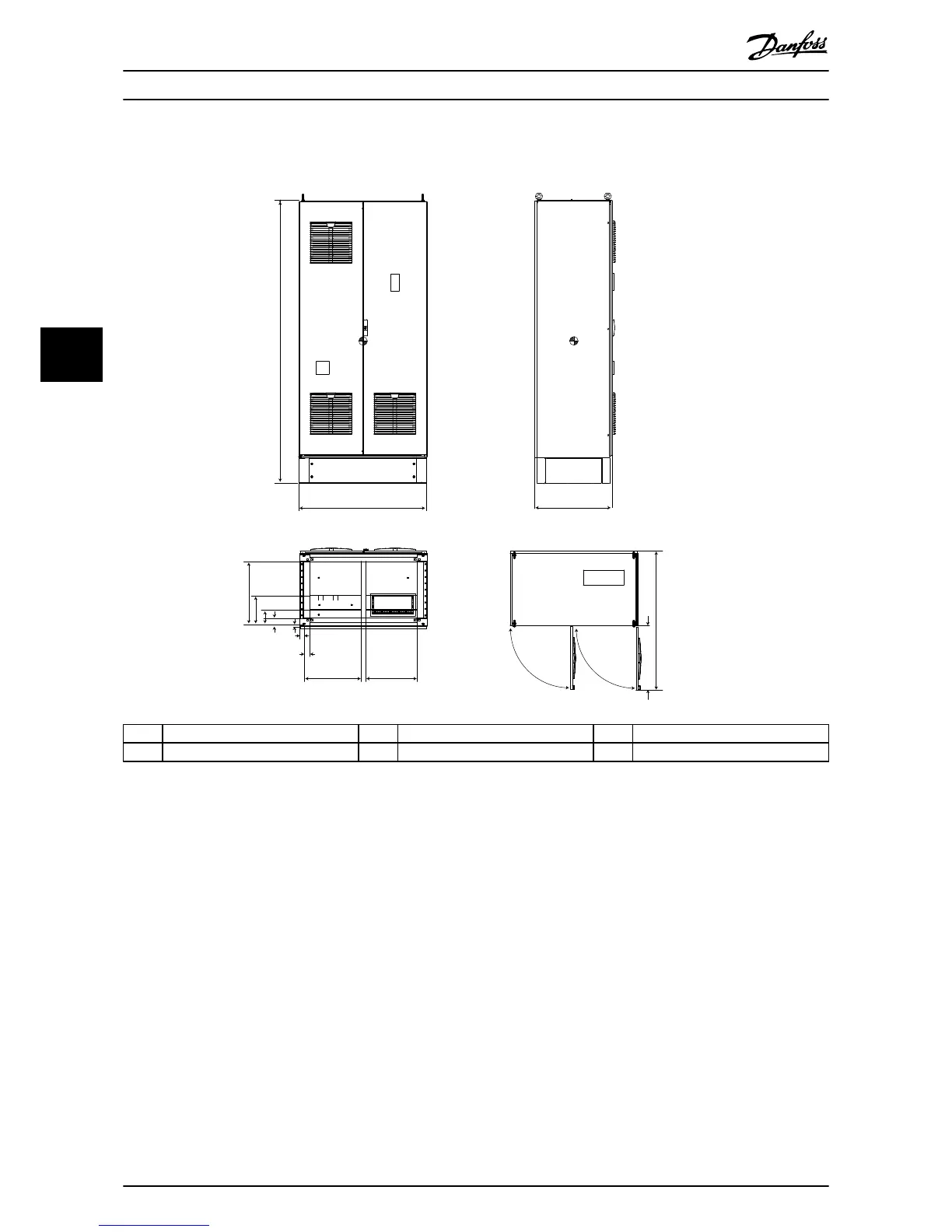

Illustration 5.2 Front, Side Dimensions, Door Clearance, and Center of Gravity for 250 kW Enclosure
Specications
VLT
®
Plus Panel
32 Danfoss A/S © 09/2015 All rights reserved. MG13B102
55

Danfoss VLT series Specifications

General

Series	VLT
Category	DC Drives
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	Profibus, CANopen
Enclosure Rating	IP20, IP21, IP55, IP66
Cooling Method	Forced Air Cooling, Convection Cooling
Control Mode	Sensorless Vector, Closed Loop Vector
Ambient Temperature	-10°C to +50°C (14°F to 122°F)
