5.2.3 315 kW and 400 kW Enclosure
130BE559.10
600 mm
800 mm
2200 mm (86.6 in)
605 mm
23.6 in 31.5 in
23.8 in
1400.0 mm (55.12 in)
792.0 mm (31.18 in)
600.0 mm
(23.62in)
32.25 mm (1.27 in)
46.5 mm (1.83 in)
46.5 mm (1.83 in)
110 mm (4.33 in) 223 mm (8.78 in)
486.5 mm (19.15 in)
486.5 mm
(19.15 in)
32.25 mm (1.27 in)
46.5 mm (1.83 in)
686.5 mm
(27.03in)
D E
A B
C C
A Front view B Side view C Center of gravity
D Bottom view E Top view

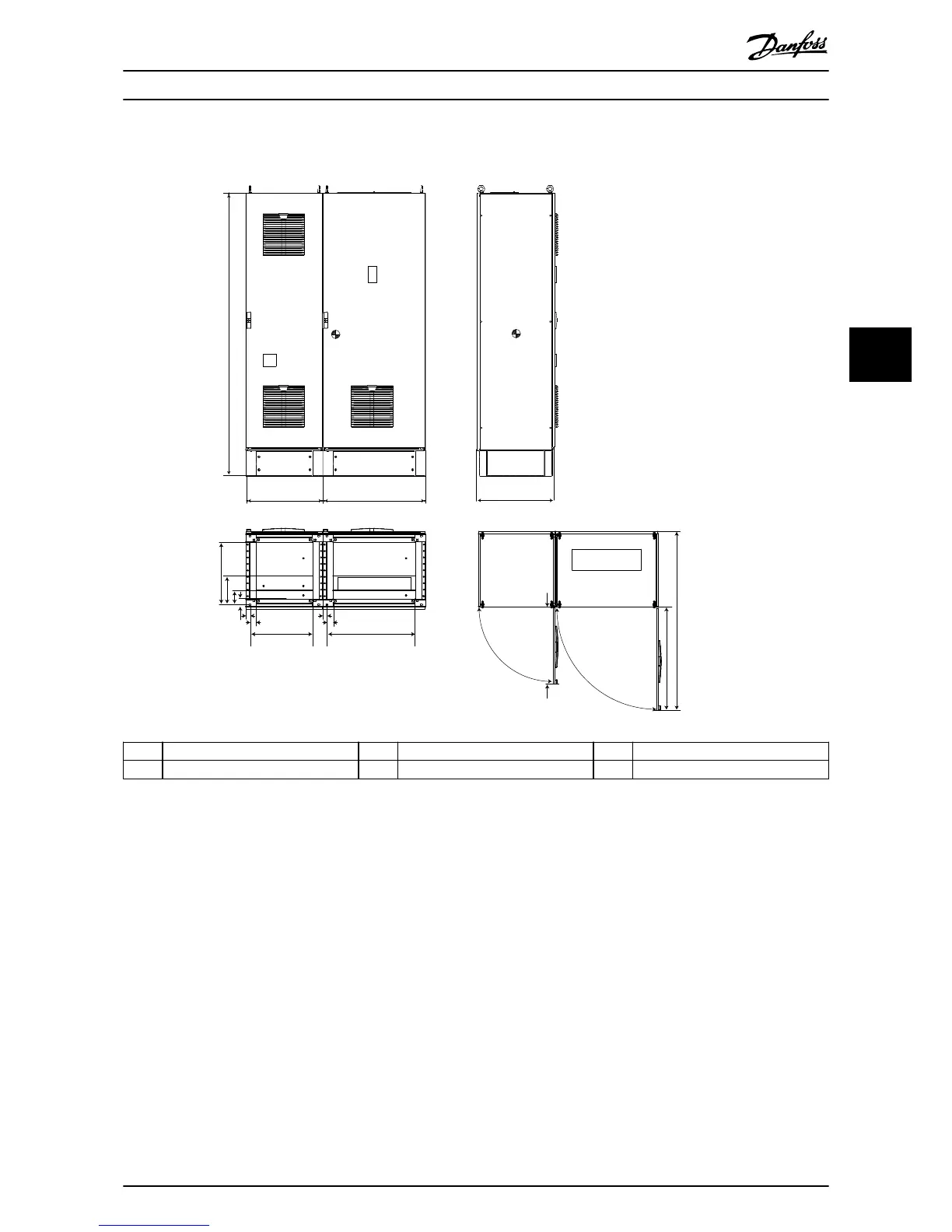

Illustration 5.3 Front, Side Dimensions, Door Clearance, and Center of Gravity for 315 kW and 400 kW Enclosure
