130BE555.10
2
1
3
4
5
6
7

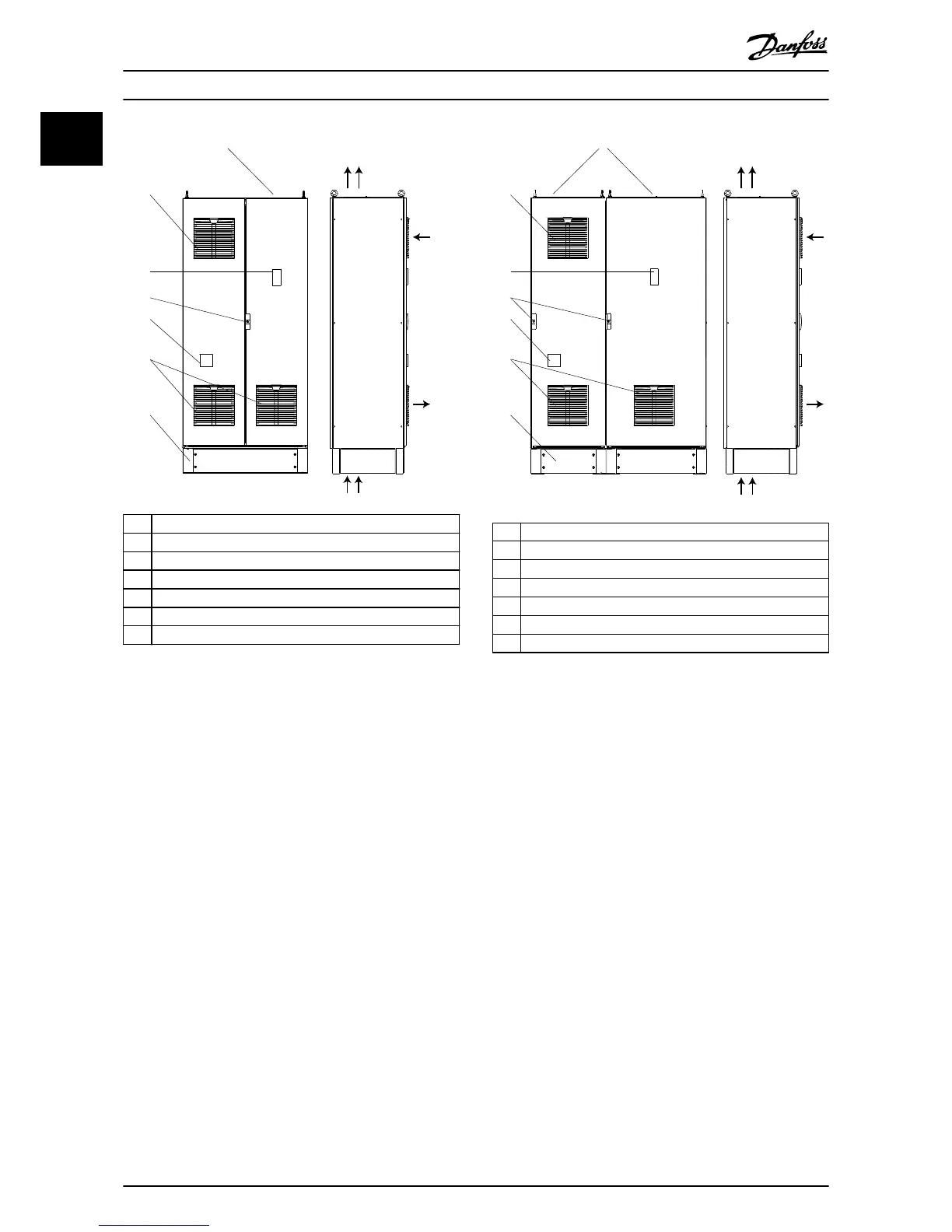

1 Air outlet, top
2 Air inlet, control
3 Local control panel
4 Door handle
5 Mains switch
6 Air outlet, electronic equipment/control
7 Plinth with air inlet, front (optional)
Illustration 1.2 VLT
®
Plus Panel, 250 kW Enclosure
130BE556.10
2
1
3
4
5
6
7
1 Air outlet, top
2 Air inlet, control
3 Local control panel
4 Door handle
5 Mains switch
6 Air outlet, electronic equipment/control
7 Plinth with air inlet, front (optional)
Illustration 1.3 VLT
®
Plus Panel, 315 kW and 400 kW Enclosure
Introduction
VLT
®
Plus Panel
6 Danfoss A/S © 09/2015 All rights reserved. MG13B102
11
