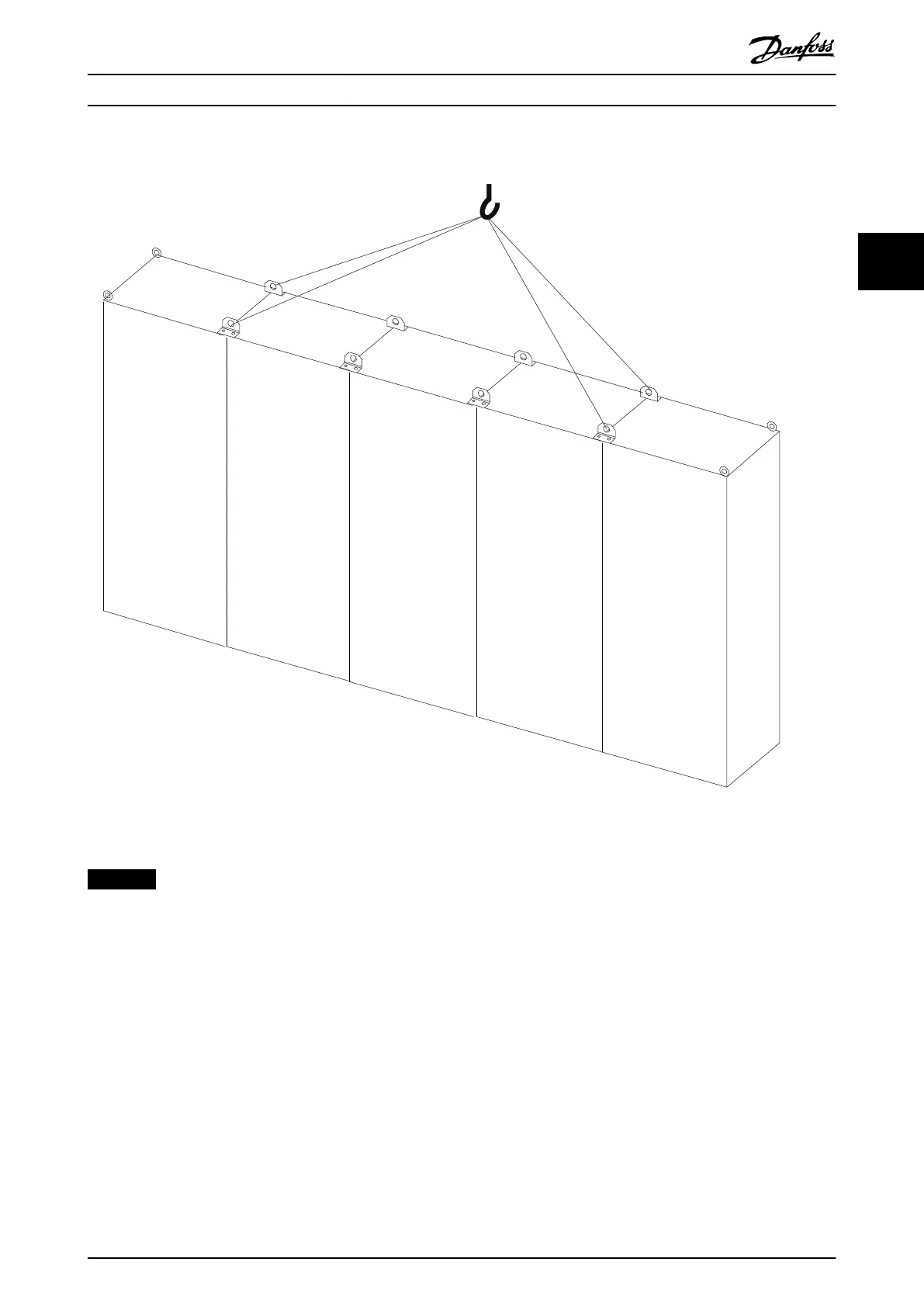

Illustration 3.4 Recommended lifting method, Enclosure Size F15
NOTICE
The plinth is provided in the same packaging as the frequency converter, but is not attached during shipment. The
plinth is required to allow airow cooling to the frequency converter. Position the frequency converter on top of the
plinth in the nal installation location. The angle from the top of the frequency converter to the lifting cable must be
>60°.
In addition to Illustration 3.1 to Illustration 3.3, a spreader bar can be used to lift the frequency converter.
