NOTICE
When changing the function of S201, S202, or S801, do
not to use force during the switch over. Remove the LCP
xture (cradle) when operating the switches. Do not
operate the switches when the frequency converter is
powered.
130BT310.11

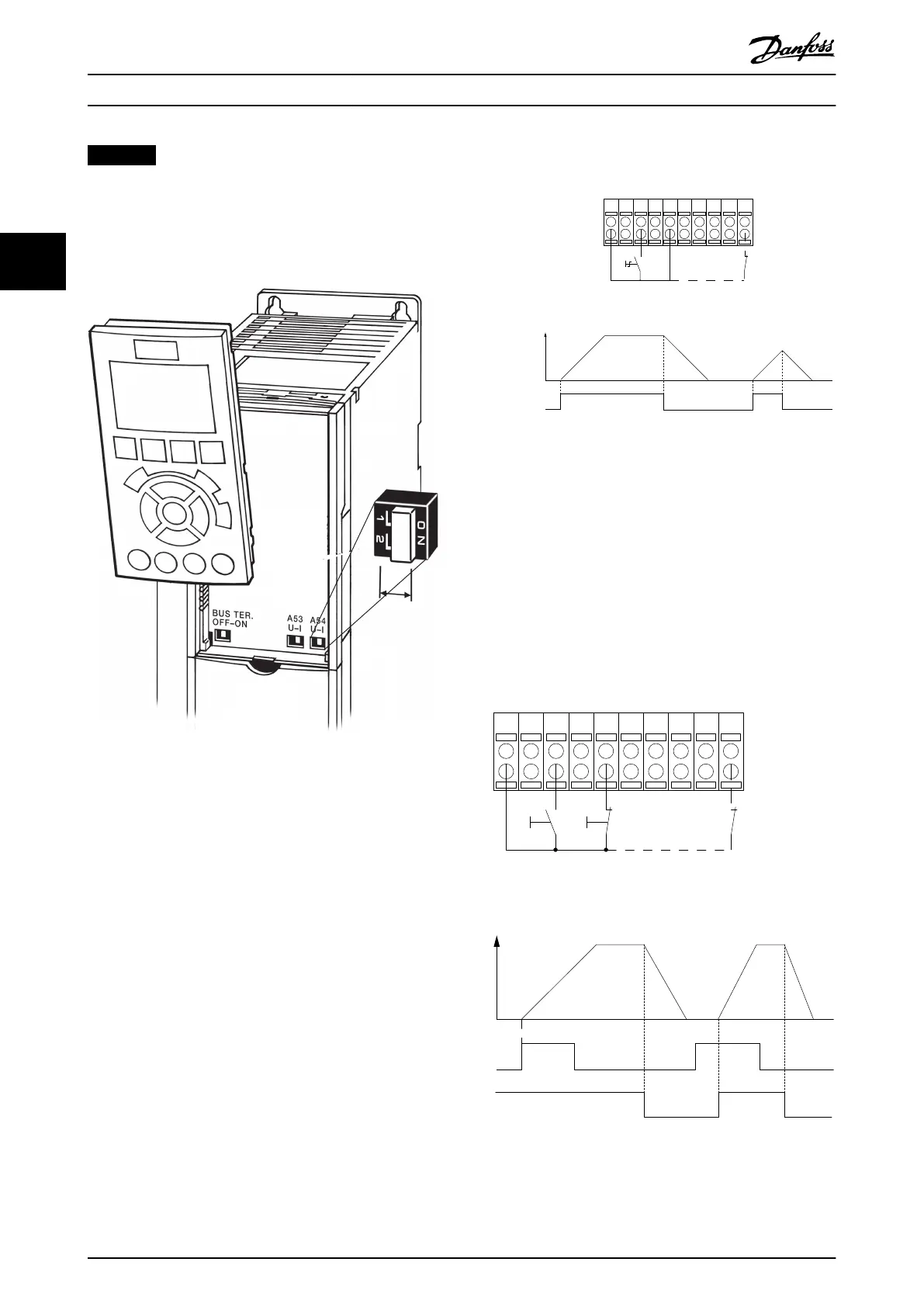

Illustration 3.55 Switch Location
3.5
Connection Examples
3.5.1 Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8]
Start
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [0]
No operation (Default coast inverse)
Terminal 37 = STO
12 13 18 37
130BA155.12
322719 29 33 20
P 5-12 [0] P 5-10 [8]
Start/Stop
+24V
Speed
Safe Stop
Start/Stop
[18]
Illustration 3.56 Wiring Start/Stop
3.5.2 Pulse Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9]
Latched start
Terminal 27= Parameter 5-12 Terminal 27 Digital Input [6]
Stop inverse
Terminal 37 = STO
12 13 18 37
130BA156.12
322719 29 33 20
P 5 - 12 [6] P 5 - 10[9]
+24V
Speed
Start Stop inverse Safe Stop
Start (18)
Start (27)
Illustration 3.57 Wiring Pulse Start/Stop
How to Install
VLT
®
AutomationDrive FC 302
56 Danfoss A/S © 04/2016 All rights reserved. MG34Q402
33
