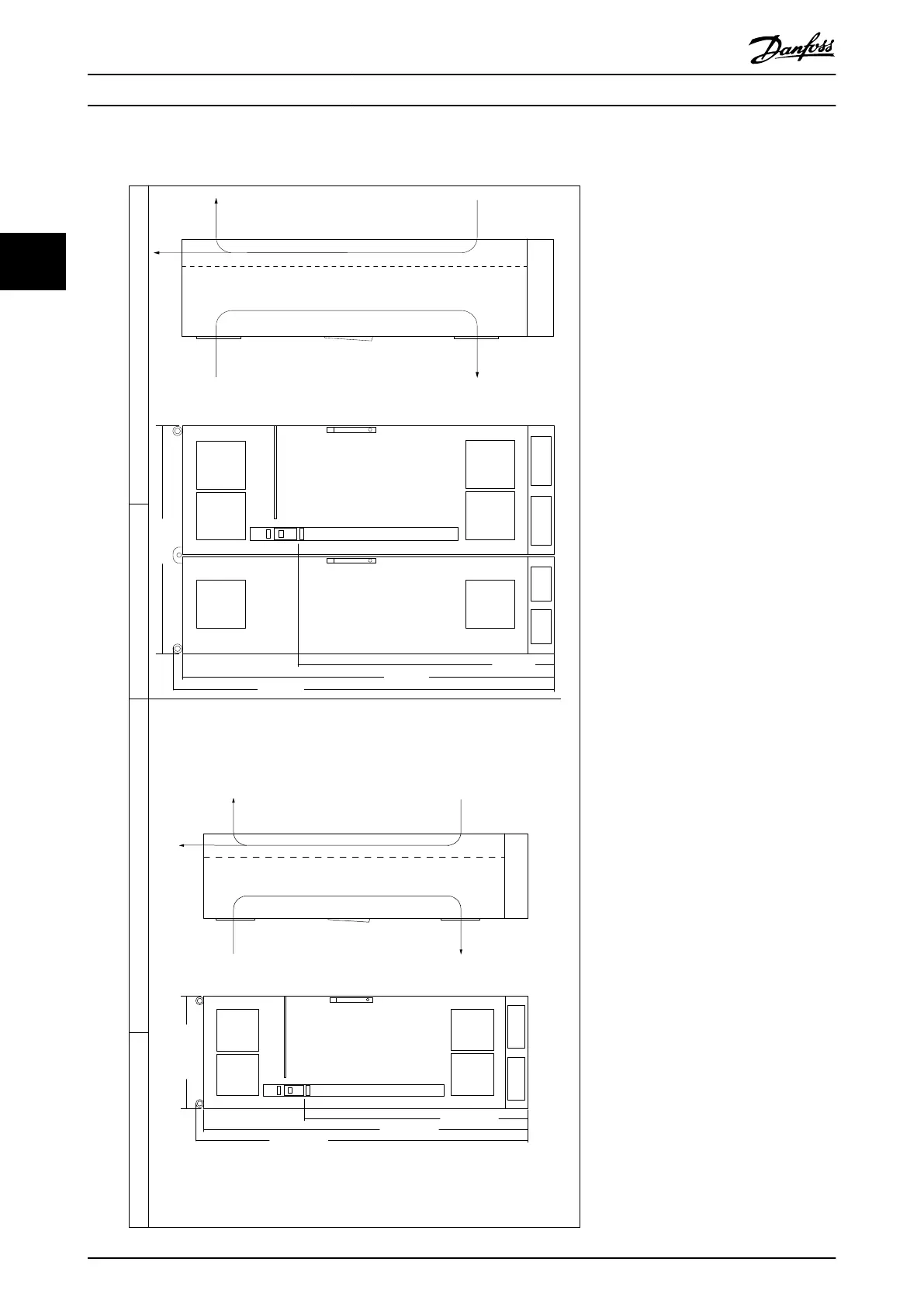

3.1.4 Mechanical Dimensions
F8 IP21/54 – NEMA 1/12 F9 IP21/54 – NEMA 1/12
130BB754.11
800 (31.50)
607 (23.90)
IP/21 NEMA 1
IP/54
NEMA 12
1400 m
3
/h
(824 cfm)
1050 m
3
/h
(618 cfm)
1970 m
3
/h
(1160 cfm)
2280 (89.76)
2205 (86.81)
1497 (58.94)
130BB568.11
1400 (55.12)
607 (23.90)
IP/21 NEMA 1
IP/54
NEMA 12
2100 m
3
/h
(1236 cfm)
1575 m
3
/h
(927 cfm)
1970 m
3
/h
(1160 cfm)
2280 (89.76)
2205 (86.81)
1497 (58.94)
All dimensions in mm (in)
Table 3.1 Mechanical Dimensions, Enclosure Sizes F8 and F9
