578
(22.8)
130BE151.10
776
(30.6)

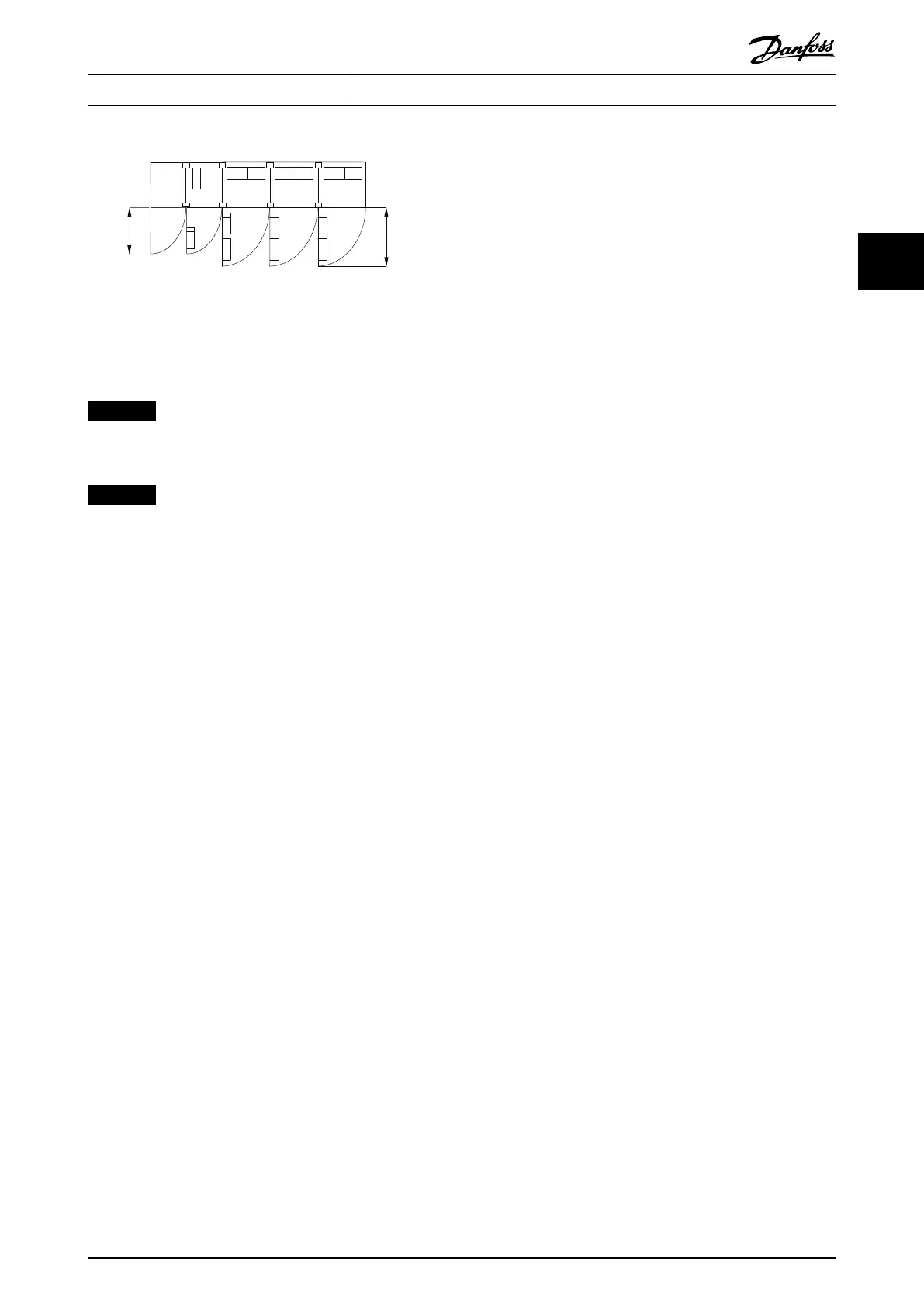

Illustration 3.12 Space in Front of Enclosure Size F15
Wire access
Ensure that proper wire access is present including the
necessary bending allowance.
NOTICE
All cable lugs/shoes must mount within the width of the
terminal bus bar.
NOTICE
Because the motor wiring carries high frequency current,
it is important that mains cables, motor cables, and
control wires are run separately. Use metallic conduit or
separated shielded wire. Failure to isolate mains cables,
motor cables, and control wiring could result in the
mutual signal coupling which may cause nuisance trip
cases.
How to Install Operating Instructions
MG34Q402 Danfoss A/S © 04/2016 All rights reserved. 19
3 3

Danfoss VLT series Specifications

General

Series	VLT
Category	DC Drives
Output Voltage	0-100% of input voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit, Ground Fault
Communication Interfaces	Profibus, CANopen
Enclosure Rating	IP20, IP21, IP55, IP66
Cooling Method	Forced Air Cooling, Convection Cooling
Control Mode	Sensorless Vector, Closed Loop Vector
Ambient Temperature	-10°C to +50°C (14°F to 122°F)
