System 9700 User Manual
Page 27 of 56

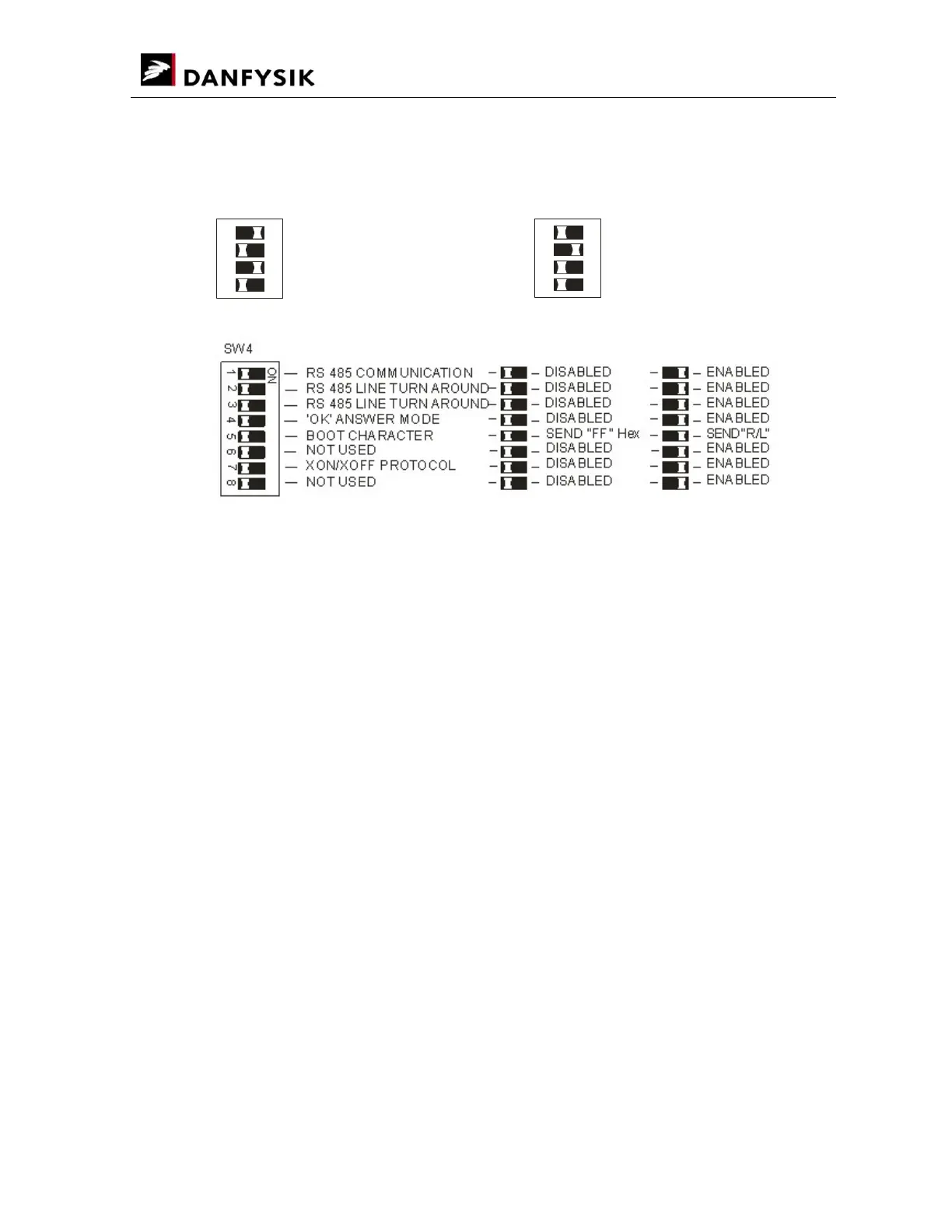

3.3.1.3. LINE FUNCTION PROTOCOL SETUP (Esc<LINE)
The “LINE FUNCTION PROTOCOL SETUP” is for setting up serial line protocols.
SW3 FOR LOCAL LINE
SW3 FOR REMOTE LINE
ON ON
1
2 3
4
1
2 3
4
5
2
Parameters:
Remote Line: RS485 Communication: Disabled
(=0) RS485 Line turnaround time: Disabled Line turn around set bit 0
RS485 Line turnaround time: Disabled Line turn around set bit 1
OK Answer mode: Disabled
BOOT character: "FF" / "R" (Remote)
NU Disabled
XON/XOFF Protocol: Disabled
NU Disabled
Local Line: RS485 Communication: Disabled
(=1) RS485 Line turnaround time: Disabled Line turn around set bit 0
RS485 Line turnaround time: Disabled Line turn around set bit 1
OK Answer mode: Disabled
BOOT character: "FF" / "L" (Local)
NU Disabled
XON/XOFF Protocol: Disabled
NU Disabled
Line turn around set bit:
2, 3: 0, 0 Delay = 0
2, 3: 1, 0 Delay = 1ms approx.
2, 3: 0, 1 Delay = 2ms approx.
2, 3: 1, 1 Delay = 3ms approx.
The line turnaround time setting also includes RS422.
