36•dap4UserManual

Available Selections:

Wtr Vlv (Water Valve): Engy Svg Cool Chilled Wtr Cool

 ChilledWtrReg AuxChillWtr

None

Note: If None is selected, Wtr Vlv Voltage, Wtr Vlv Action and Engy Lockout Time will appear on

the display module screen.

E-Saver Assist: None

1 Comp*

2 Comp*

4 Comp*

* If E-Saver Assist is selected with 1, 2 or 4 compressors, the display module will display “Disch

Temp Is Required”. An optional discharge temperature sensor is required. If left at none, there

will be no message.

Note:E-SaverAssistwillonlyappearifeitherEngySvgCoolorAuxChillWtrareselected.

Wtr Vlv Voltage: 0 – 10 (factory setting)

4 – 7

6 – 9

7 – 10

2 – 10

Wtr Vlv Action: Direct (factory setting) or Reverse

Engy Lockout Time: 15m (factory setting), 30m, 45m, and 60m

Once a selection or selections have been made, move the cursor to the title block by pressing the

ENTER key

PresstheDOWNkeytoviewthenextscreen:

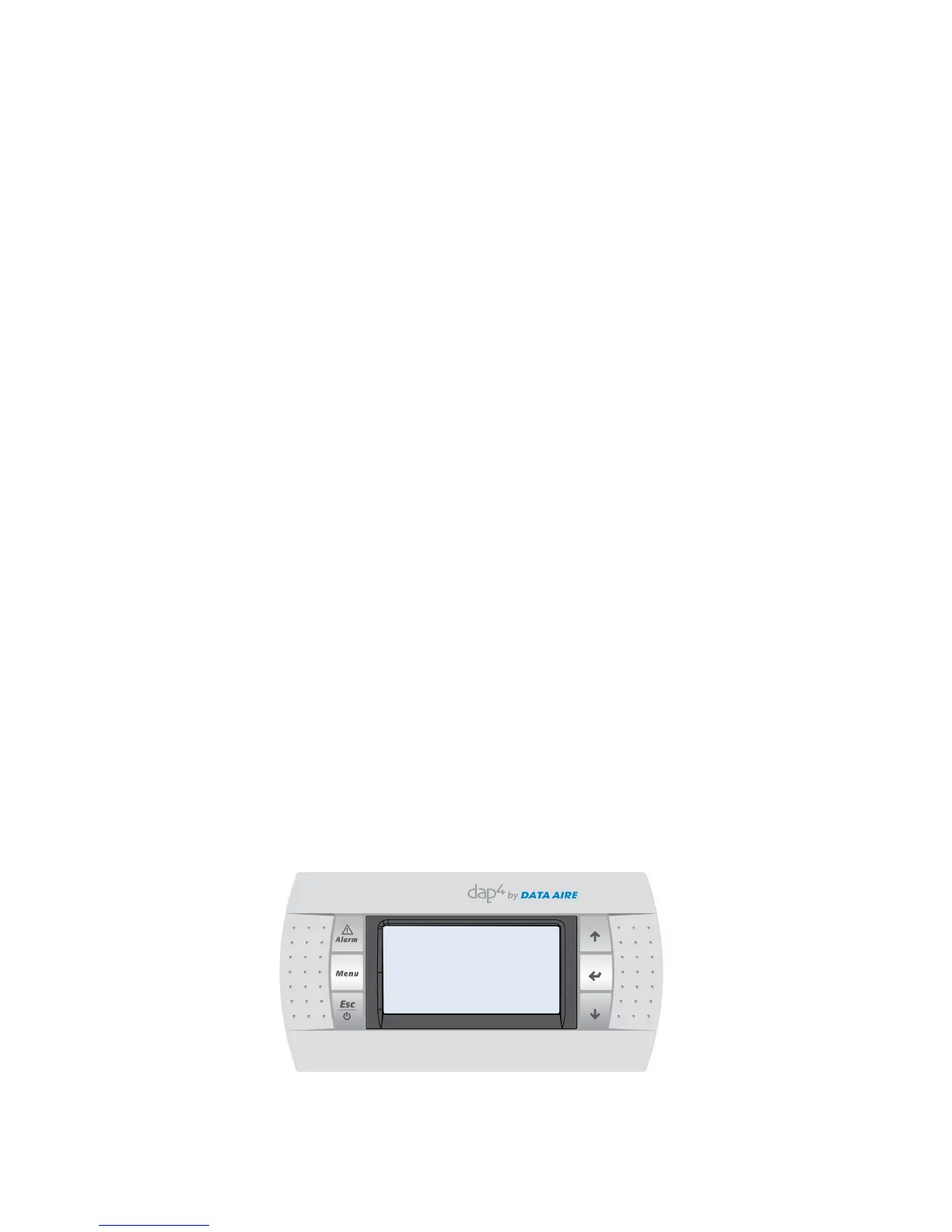

The following will be displayed (inputs are for reference only):

Available Selections:

Simple Setting: 0 – 300 (factory setting is 25)

Disch Air PID

Simple Settings: 25

Cntrol: PID

Band 5.8

Interaction Time: 234

Derivation Time: 23s

Output Period 0ms
