Data Aire dap 4 User Manual

59•dap4UserManual
The “Choose Name” allows one of the following to be selected by moving the cursor to the
Choose Name and pressing the UP or DOWN key:
Diff Pressure Suct Pressure Disch Pressure Outside Hum Outside Temp Zone Humidity
Zone Air Temp CW Flow Cond Wtr Flow Ret Air Temp Sply Air Temp CW Ret Temp
CW Sply Temp Cond Ret Temp Cond Sup Temp Power Frequency Ground Amps
Neutral Amps Output Amps C Output Amps B Output Amps A Input Amps C Input Amps B
Input Amps A Output V. B-C Output V. A-C Output V. A-B Input V. B-C Input V. A-C
Input V. A-B
Once a selection or selections have been made, move the cursor to the title block by pressing the
ENTER key
▼PresstheDOWNkeytoviewthenextscreen:

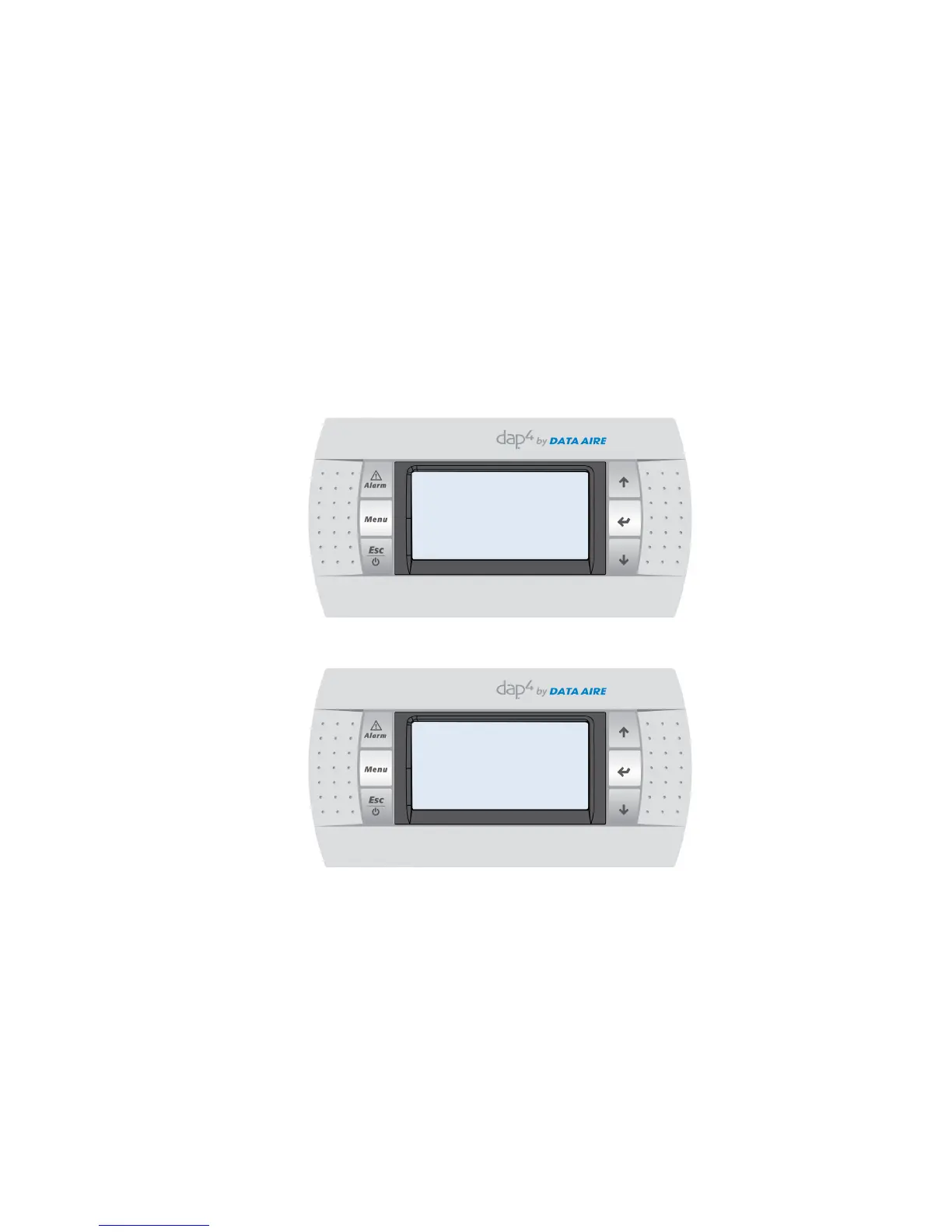

The following will be displayed (values are for reference only):
With Enable OFF
With Enable ON
The “Choose Name” allows one of the following to be selected by moving the cursor to the
Choose Name and pressing the UP or DOWN key:
Diff Pressure Suct Pressure Disch Pressure Outside Hum Outside Temp Zone Humidity
Zone Air Temp CW Flow Cond Wtr Flow Ret Air Temp Sply Air Temp CW Ret Temp
CW Sply Temp Cond Ret Temp Cond Sup Temp Power Frequency Ground Amps
Neutral Amps Output Amps C Output Amps B Output Amps A Input Amps C Input Amps B
Input Amps A Output V. B-C Output V. A-C Output V. A-B Input V. B-C Input V. A-C
Input V. A-B
Once a selection or selections have been made, move the cursor to the title block by pressing the
ENTER key
Optional Sensor #2
Enable: OFF
Choose Name
Optional Sensor #2
Enable: ON
Choose Name
Normal NTC
Offset 0.0
o
F
Value: -2.1
o
F

Data Aire dap 4 Specifications

General

Brand	Data Aire
Model	dap 4
Category	Control Unit
Language	English
