64•dap4UserManual

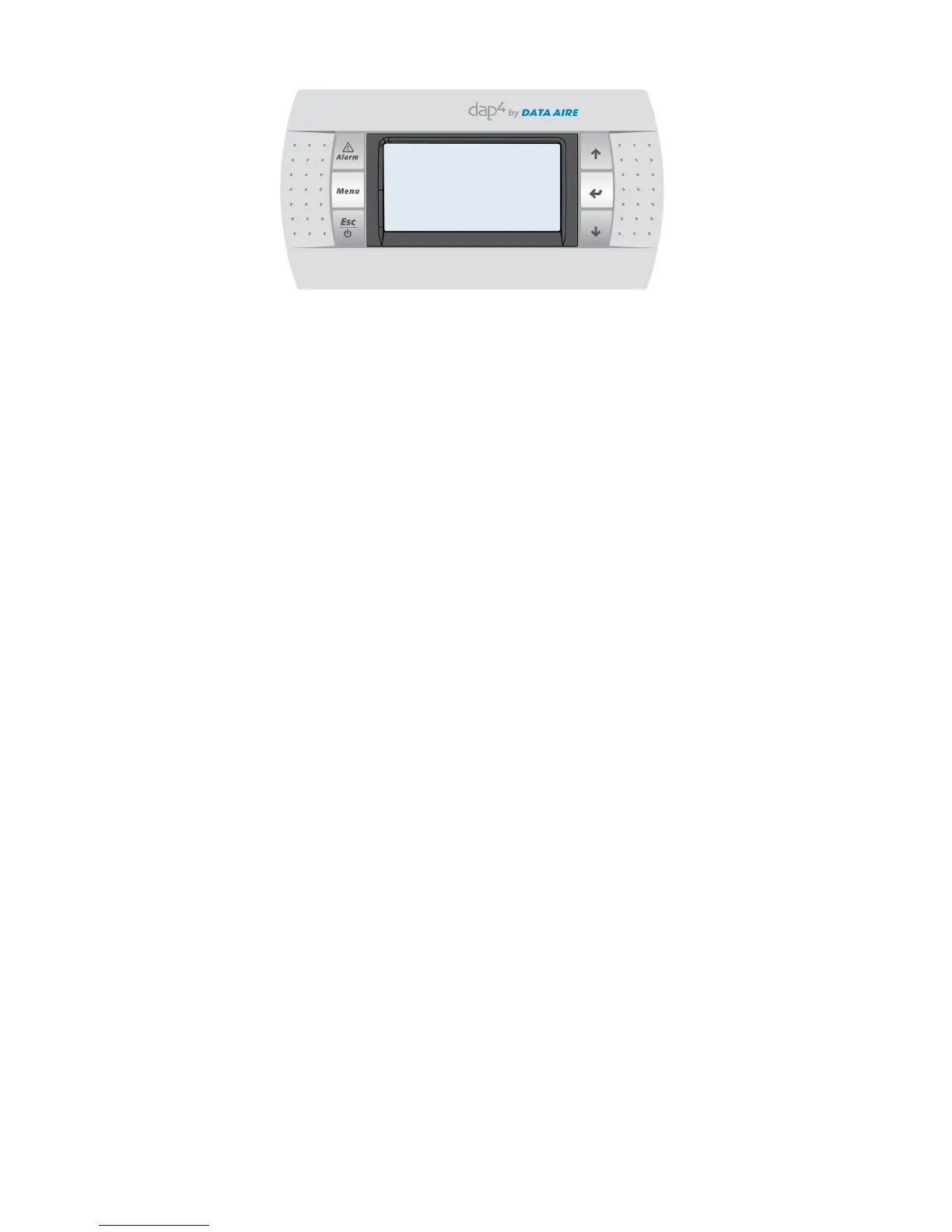

The following will be displayed (values are for reference only):
Move the cursor by pressing the ENTER key. Move the cursor to change the setting.
The following can be changed by pressing the DOWN key:
Channel–therearesix(6)selections(Y1,Y2,Y3,Y4,Y5andY6).ThereareveAnalog
outputs available. DO NOT ASSIGN THE SAME CHANNEL ON MORE THAN ONE ANA-
LOG OUTPUT.
Action: there are two choices; DIRECT AND REVERSE
Minimum: the range is from 0.0vdc to 10.0vdc
Maximum:therangeisfrom0.0vdcto10.0vdc
To return to another Input or Output screen, with the cursor in the title block, press the UP or
DOWN key to scroll through the selections
ToexitMenuL–CongureI/O,withthecursorinthetitleblock,presstheMenukey.Thescreen
will display the Menus.
▼PresstheEsckeytoreturntothenormaloperatingmode.
Analog Output Config
Channel: Y3
Action: DIRECT
Minimum 0.0vdc
Maximum: 0.0vdc
