DataCard SD460 Installation And Administrator's Guide

A-6 SD460 Laminating System

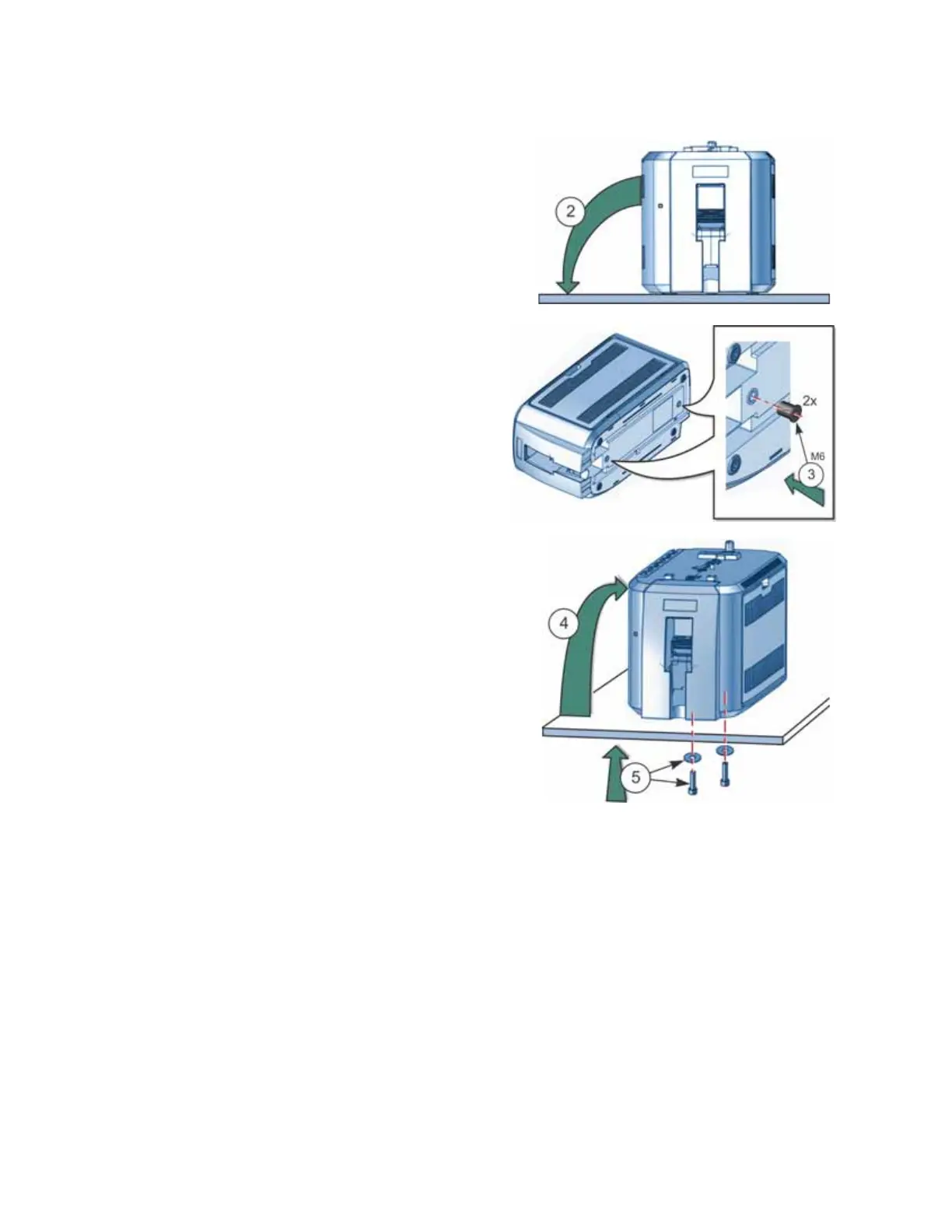

2. Carefully tip the laminator onto its left side (the
side without the access door).
3. Insert the M6 well nut threaded inserts into
the bolt-down openings on the bottom of
the laminator.
4. Return the laminator to its upright position
and position it over the holes that are drilled in
the mounting surface.
5. Secure the laminator to the mounting surface.
a. Place a flat washer on each of the screws
beneath the mounting surface.
b. Insert the M6 screws through the holes in
the mounting surface and into the well nuts
in the bottom of the laminator.
c. Tighten the screws securely.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
