DataCard SD460 Installation And Administrator's Guide

32 Elements of Card Design
Single-Track Option (JIS)
The default data format for a single-track magnetic stripe module is the JIS (Japanese Industrial
Standard) Type II format.
The maximum number of characters for the JIS format is 69 characters. These characters can
include spaces, numeric characters (0–9), uppercase alphabetic characters (A–Z), lowercase
alphabetic characters (a–z), and the following special characters:
! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ ] ^ _ ~ { | } ~

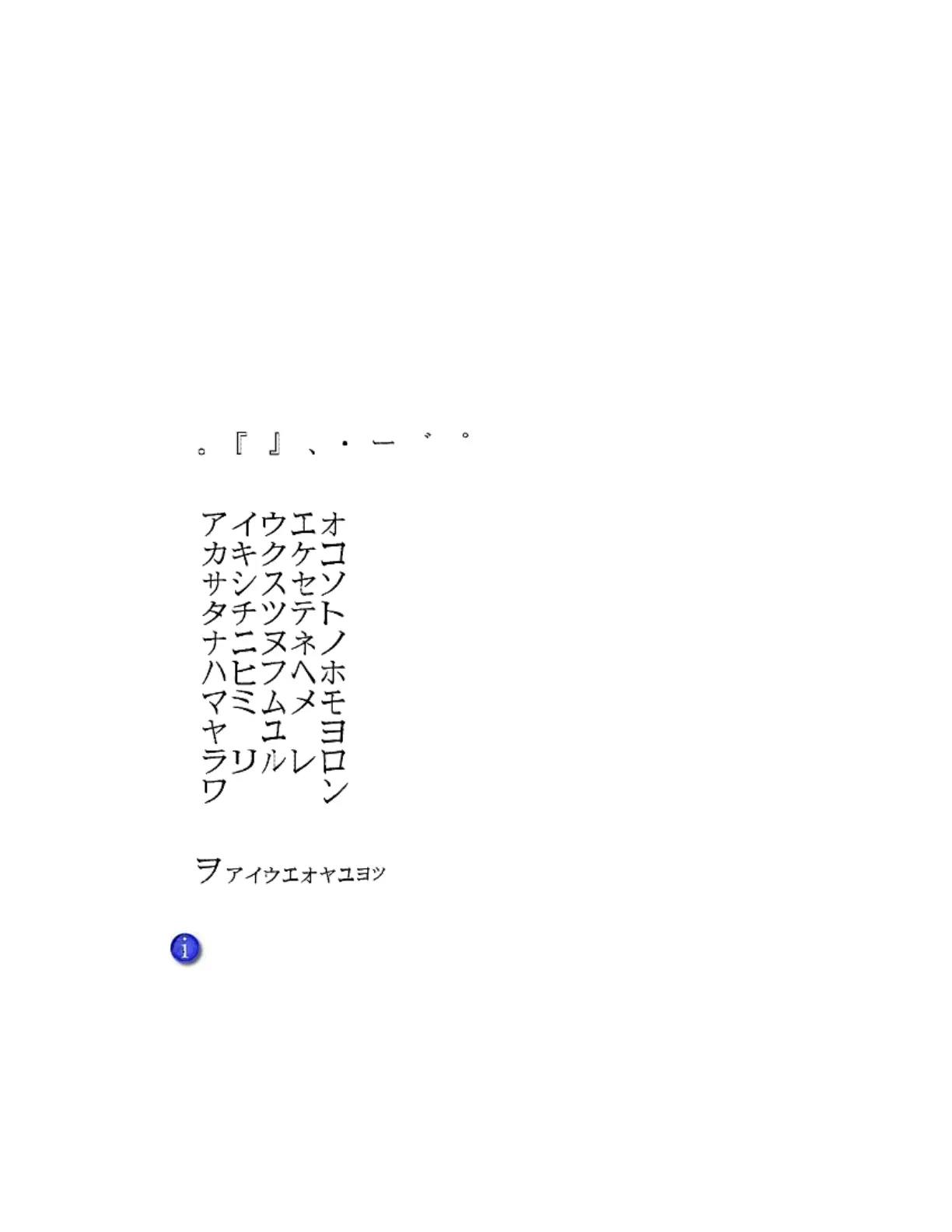

A PC running a Japanese edition of a supported Windows operating system also supports
Japanese-language special characters and 55 Katakana characters. They include the following:
 Special characters:
 45 Katakana characters:
 10 Katakana characters:
The magnetic stripe data uses shift-JIS, which embeds a hidden "shift-in" and "shift-
out" character each time the Japanese-language characters start and end. Each
transition between normal characters and shifted characters is surrounded by these
two control characters. They are encoded on the magnetic stripe. Thus, each hidden
character reduces the number of characters you can encode by one character.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
