DataCard SP55 User Manual

37
SP Series Info Central: Setup
Smart card setup

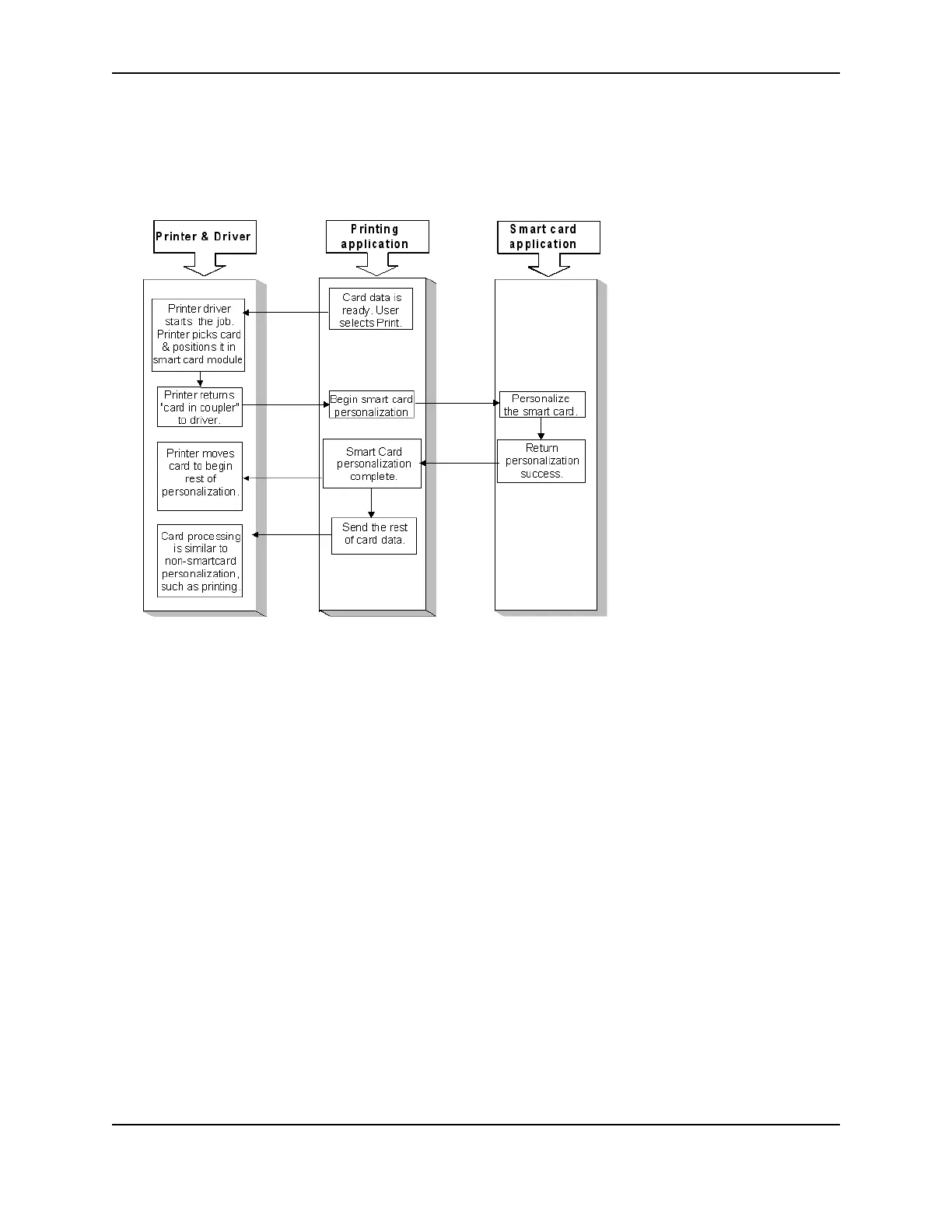

This section presents information about how to set up a system if you are personalizing smart cards. Smart card
processing is different from other types of personalization, because the “smart card” step of personalization is
controlled by an application (or application module) that is different from the rest of card personalization.
The data for smart card personalization is sent from the smart card application using a separate smart card cable.
Requirements
To personalize a smart card, you need to obtain or create the following:
• A direct local connection between the printer and the PC
• Smart card reader (coupler) in the printer OR a contact station in the printer plus an external reader
• A smart card cable for each smart card port used
• Card application that is customized to work with the SP Series printer and the smart card application (using the
Smart Driver™ SDK or an application such ID Works with the Smart Card Application Manager)
• Smart card application (which uses the SDK for the smart card and reader type)
• Smart cards that work with the reader in the printer
Smart card codes on the printer label
The printer label includes codes to identify the type and model of smart card module installed in the printer. The
model(s) of reader available might change and additional models might become available. (SP35 printers might
have identifiers that describe the reader, such as SC430.)

DataCard SP55 Specifications

General

Print Technology	Dye Sublimation
Print Resolution	300 dpi
Print Capabilities	Full-color, monochrome
Card Capacity	100 cards (input hopper), 30 cards (output hopper)
Card Sizes	CR80 (85.6 mm x 54 mm / 3.375" x 2.125")
Connectivity	USB
Power Requirements	100-240 VAC, 50/60 Hz
Operating System Support	Windows 7, 8, 10
