Elrepho 3000
place. A quarter turn of the cylinder to the left returns it to the
normal position.

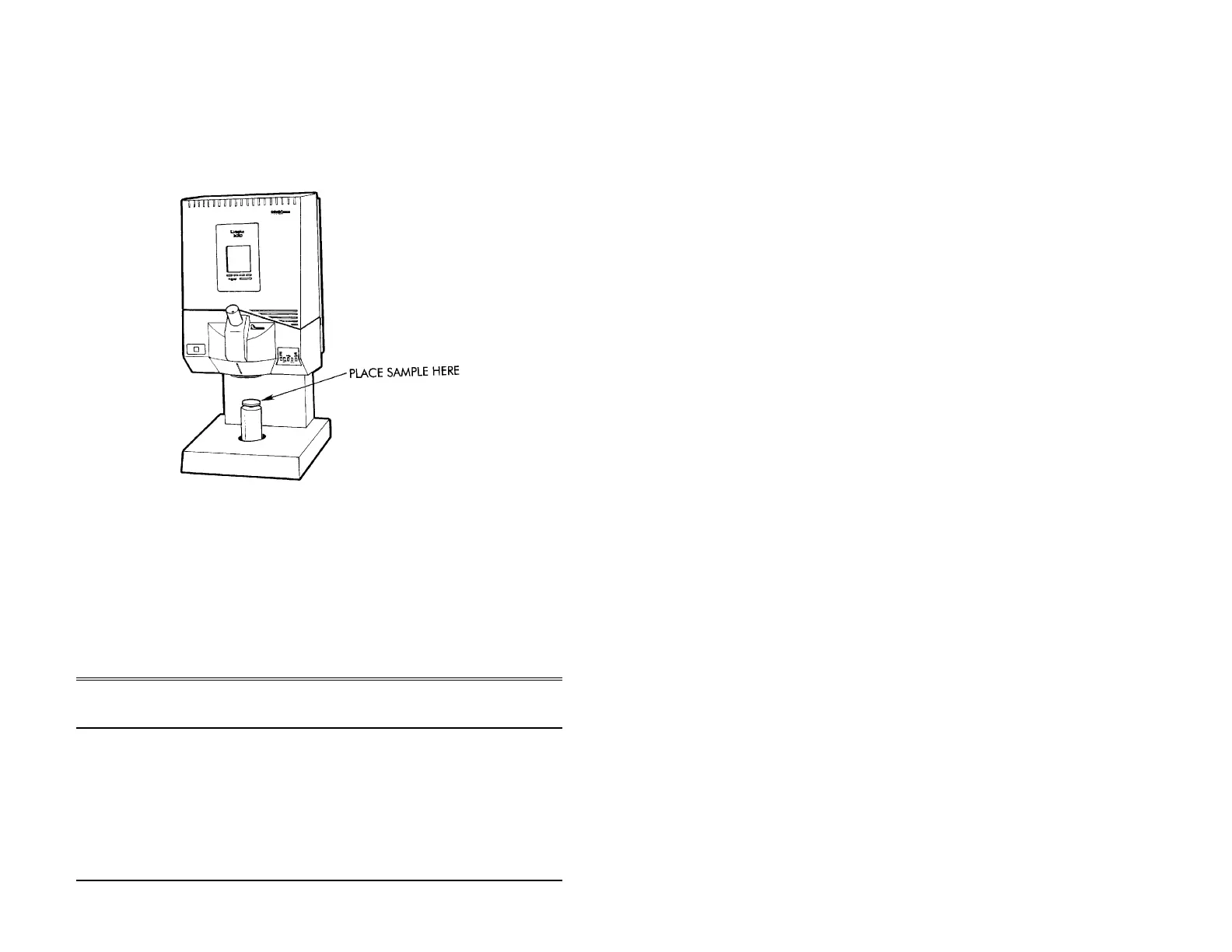

Figure 3: Sample Placement
It is important never to move a sample without releasing the tension
on the cylinder.
Installation
Electrical Requirements
AC Input Power: 95 - 265vac, 45 - 65Hz, 50VA
The Elrepho needs a distortion free dedicated power line capable of
carrying 10 amps. The neutral leg to earth ground must not exceed 2
volts with 0.1 ohm maximum resistance.
6 Datacolor International
