DataDirect Networks SFA12Ki - Figure 99. SFA12 KX;12 K-40 Configuration with 4 × SS8460 Enclosures

Disk Enclosure Cabling
96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 83

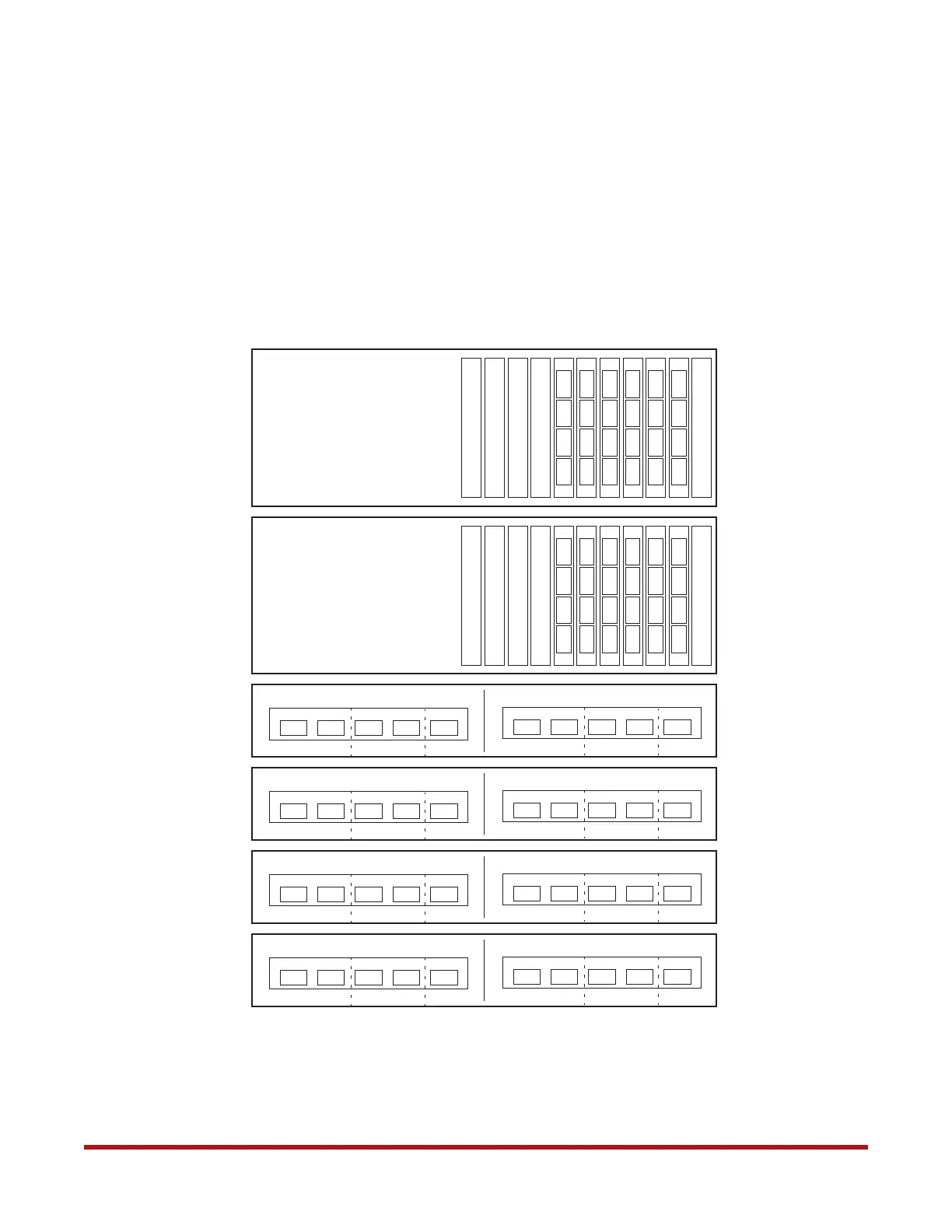

Figure 99. SFA12KX/12K-40 Configuration with 4 × SS8460 Enclosures
051031 021001
I/O Module A
Disk Enclosure 04
151131 121101
I/O Module B
052030 022000
I/O Module A
Disk Enclosure 03
152130 122100
I/O Module B
050040 020010
I/O Module A
Disk Enclosure 02
150140 120110
I/O Module B
042032 012002
I/O Module A
Disk Enclosure 01
142132 112102
I/O Module B
120 121 122 110 112 100 101 102
Controller 1
020 021 022 010 012 000 001 002
Controller 0
050 051 052 040 042 030 031 032
150 151 152 140 142 130 131 132
No. of HD MiniSAS to HD MiniSAS Cables Required (3-meter): 32
Zoning Configuration: 1
