96-30051-001 Rev. D3 DDN SFA12K (SFA OS 2.3.1) Hardware Installation & Configuration Guide | 93
Disk Enclosure Cabling

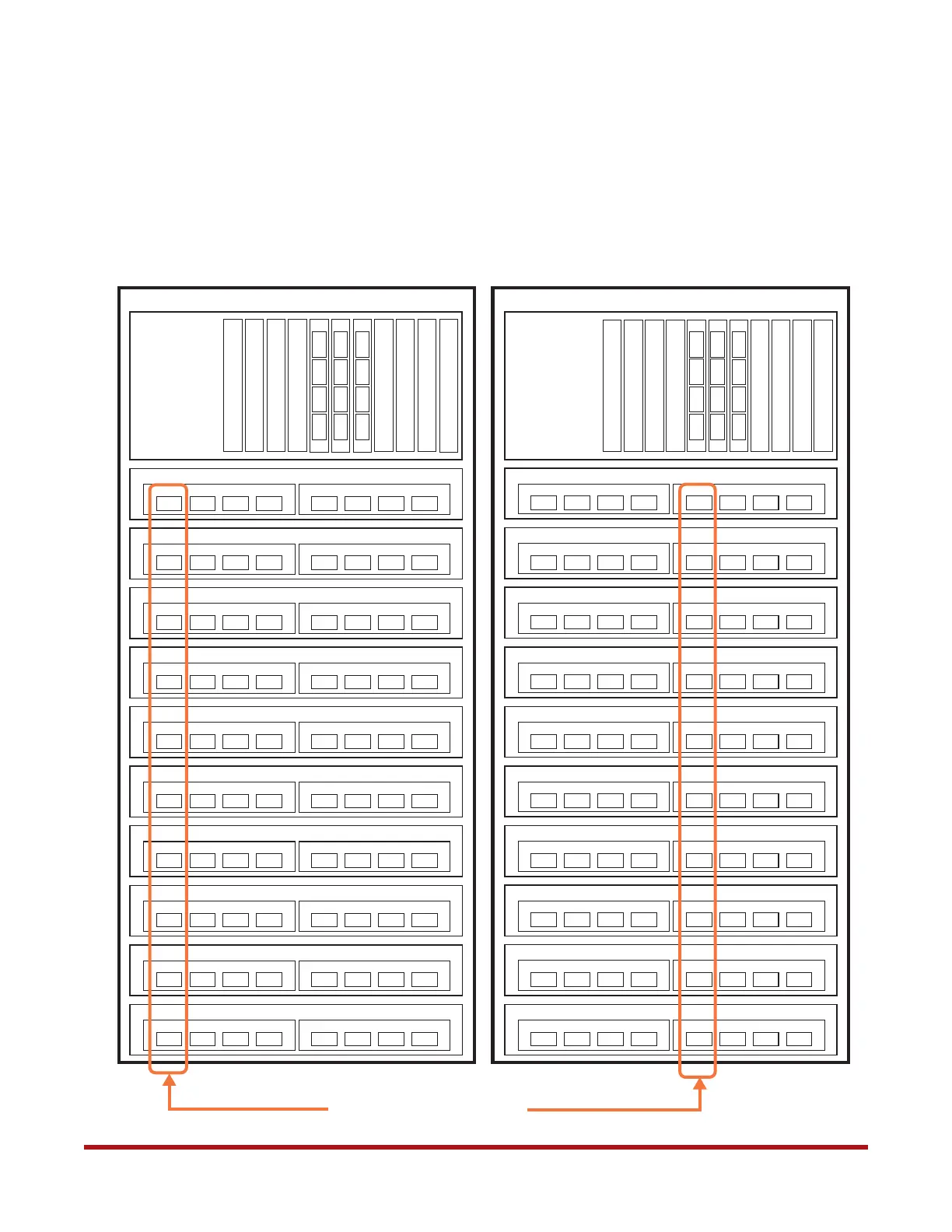

Figure 109. SFA12KXE/12K-20E Configuration with 20 × SS7000 Enclosures
060002 160102
I/O Module A I/O Module B
Disk Enclosure 01
060 160
I/O Module A I/O Module B
Disk Enclosure 02
061012 161112
I/O Module A I/O Module B
Disk Enclosure 03
061 161
I/O Module A I/O Module B
Disk Enclosure 04
062010 162110
I/O Module A I/O Module B
Disk Enclosure 05
062 162
I/O Module A I/O Module B
Disk Enclosure 06
063020 163120
I/O Module A I/O Module B
Disk Enclosure 07
063 163
I/O Module A I/O Module B
Disk Enclosure 08
064000 164100
I/O Module A I/O Module B
Disk Enclosure 09
064 164
I/O Module A I/O Module B
Disk Enclosure 10
065 022 165 122
I/O Module A I/O Module B
Disk Enclosure 11
065 165
I/O Module A I/O Module B
Disk Enclosure 12
066 001 166101
I/O Module A I/O Module B
Disk Enclosure 13
066 166
I/O Module A I/O Module B
Disk Enclosure 14
067021 167121
I/O Module A I/O Module B
Disk Enclosure 15
067 167
I/O Module A I/O Module B
Disk Enclosure 16
068003 168103
I/O Module A I/O Module B
Disk Enclosure 17
068 168
I/O Module A I/O Module B
Disk Enclosure 18
069013 169113
I/O Module A I/O Module B
Disk Enclosure 19
069 169
I/O Module A I/O Module B
Disk Enclosure 20
No. of Cables Required:
3-meter HD Mini-SAS to Mini-SAS: 10
6-meter HD Mini-SAS to Mini-SAS: 10
3-meter Mini-SAS to Mini-SAS for Enclosure Expansion: 20
020 021 022 010 012 013 000 001 002 003
Controller 0
120 121 122 110 112 113 100 101 102 103
Controller 1
Use 6-meter cables to connect
these ports to the controller
installed in the other rack
Zoning Configuration: 0
