floating relay
contact
I²C
max. 5 m
RS485
max. 1000 m
Reader
I/O-Box
Reader
I/O-Box
I
2
C max. 5m
ISTY 2x2x0,8
 /
~
– /
~

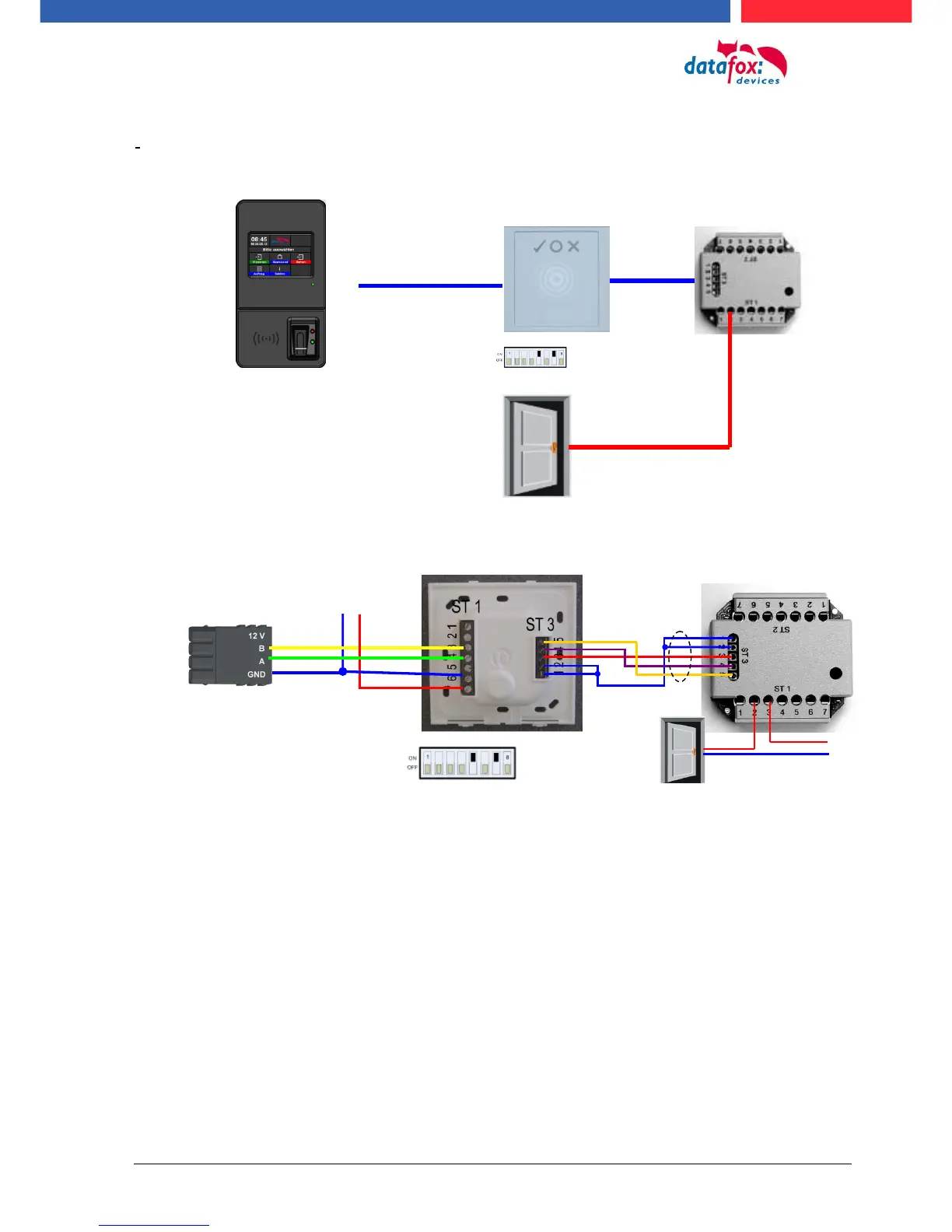

Connection example one door and I/O Box:
:
Power supply 12 V DC for reader
- + 3A
