Handbuch Datafox EVO 3.5 Pure Seite 61 Datum: 06.08.2018 Version: 04.03.07.XX

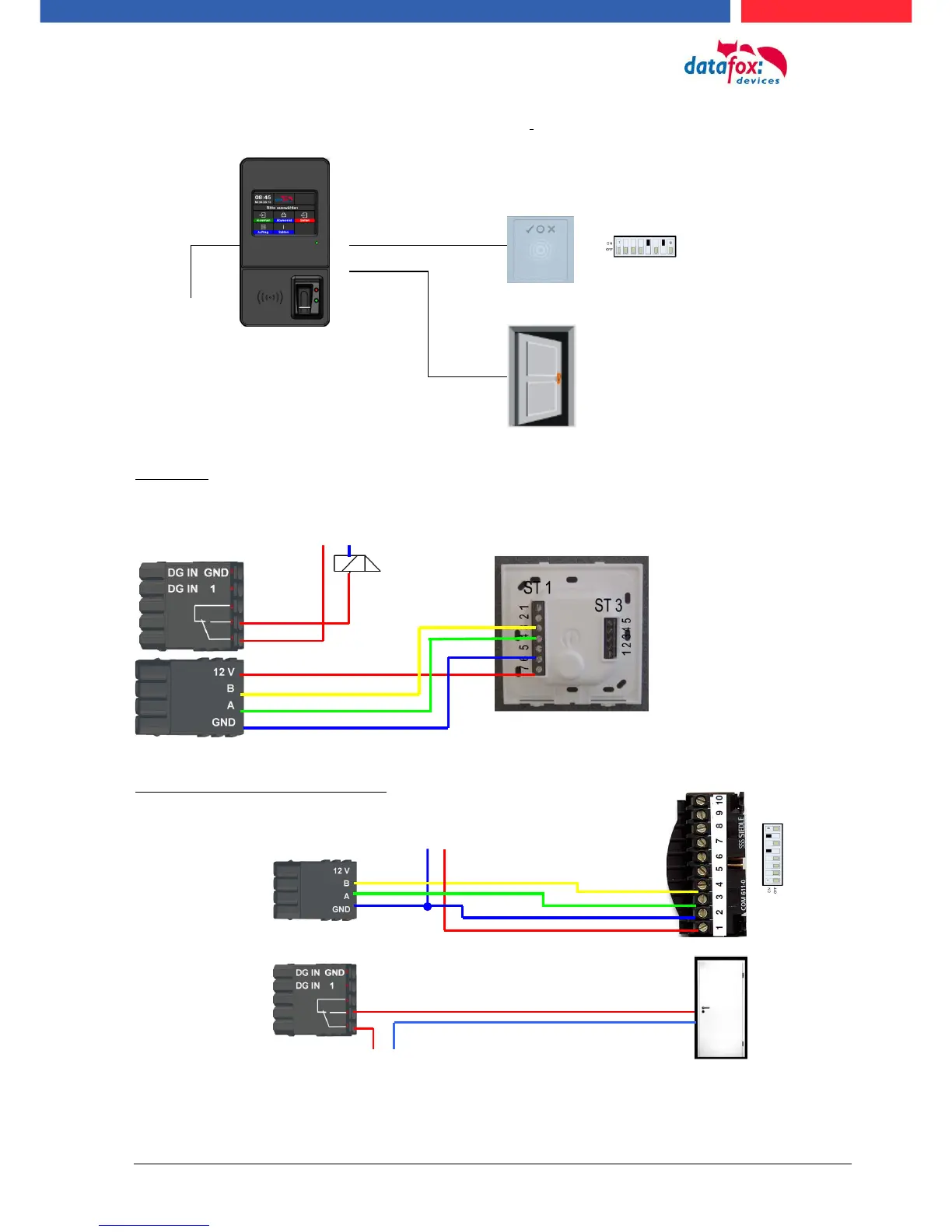

Connecting example with one door and without I/O-Box:
Wire plan:
Wire plan for Siedle access reader:
TCP/IP
RS485
Türöffner
Busadresse
max. 42 V; 2A
Power supply for door opener
+ -
+ - max. 42V; 2A
Power supply for door opener
Bus Nr. 1
Siedle-access reader
Power supply 12 V DC for reader
- + 3A
