Datalogic DX8200A Reference Manual

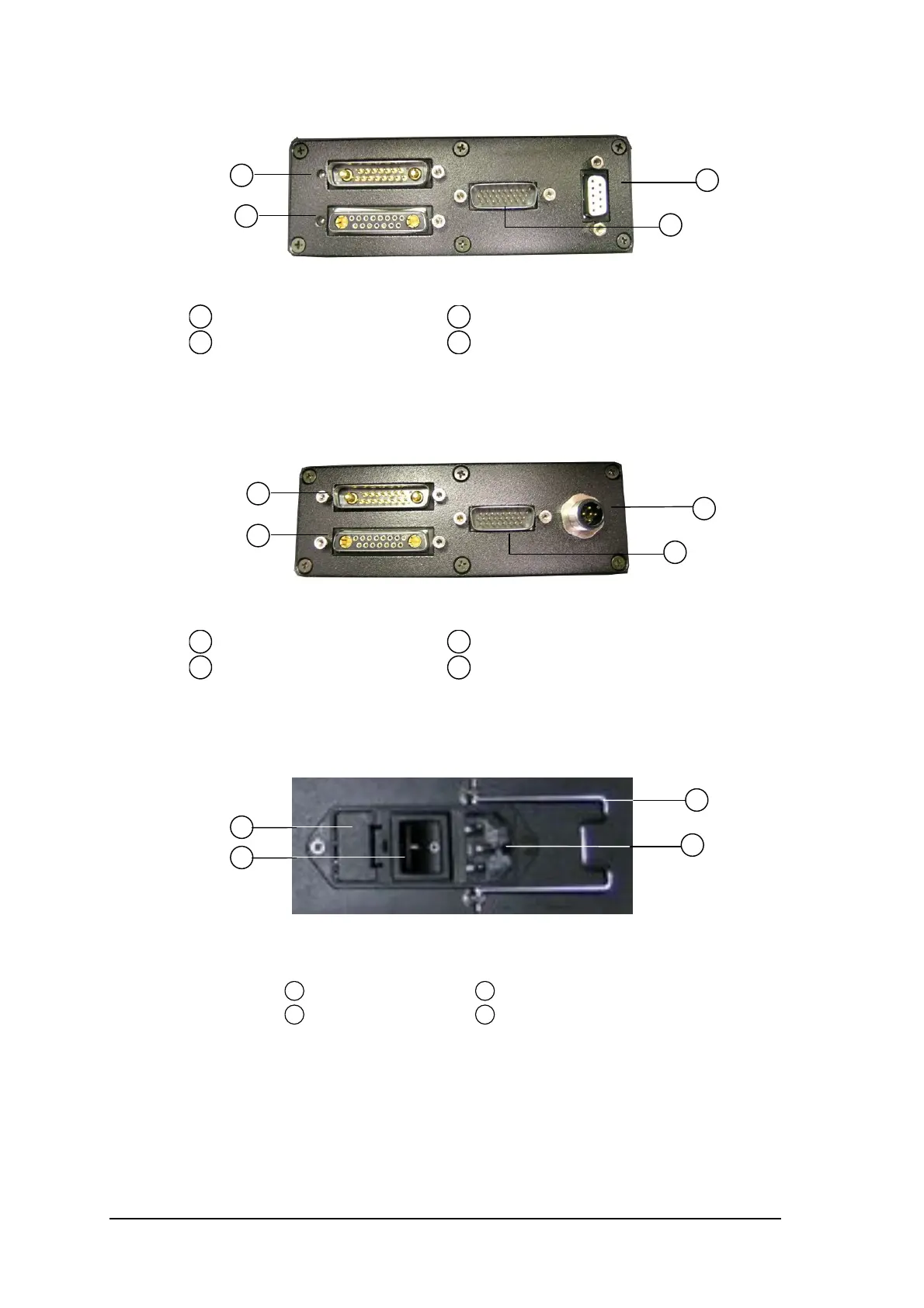

Figure F – Connector Panel for Profibus Models
Lonworks 17-pin male connector
Lonworks 17-pin female connector
Profibus 9-pin female connecto
r
1
2
4
Serial interface and I/O 26-pin connector
3
Figure G – Connector Panel for DeviceNet Models
Lonworks 17-pin male connector
Lonworks 17-pin female connector
DeviceNet 5-pin male connector
1
2
4
Serial interface and I/O 26-pin connector
3
1
2
4
3
1
2
4
3
4
1
2
3
Figure H –Input Power Module (VAC Models only)
Line Fuse
1
Line Switch
2
Power Inlet
3
Cord Retaining Clamp
4
xi

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
