Setting Up the Reader
6 Gryphon™ I GBT4400 2D
Setting Up the Reader
Follow the steps below to connect and get your reader up and
communicating with its host.
1. Configure the Base Station starting on this page.
2. Charge the Batteries (see page 13).
3. Link to the Base Station (see page 19).
4. Select the Interface Type (see page 20).
5. Configure the Reader starting on page 32 (optional,
depends on settings needed).
Positioning the Base Station
The base charger/station may be set up in desk application to
hold the reader in two different positions, either a horizontal
or standing position, in order to provide the most comfortable
use depending on needs.
Changing the Base Station Position
The base station is configured by installing one of two sets of
mechanical parts that come with the cordless kit. The default
mounts (shown below) provide three options: vertical (wall)
mounting, standing (45°), or horizontal mounting with a
higher mechanical retention of the scanner. Use the other
mounts only for horizontal mounting, with lower retention of
the scanner. The different parts may be interchanged to cus-
tomize retention preferences.
A tool such as a rigid pen or a flat screwdriver can be used
to change the mounts. Do not allow it to touch the con-
tacts.

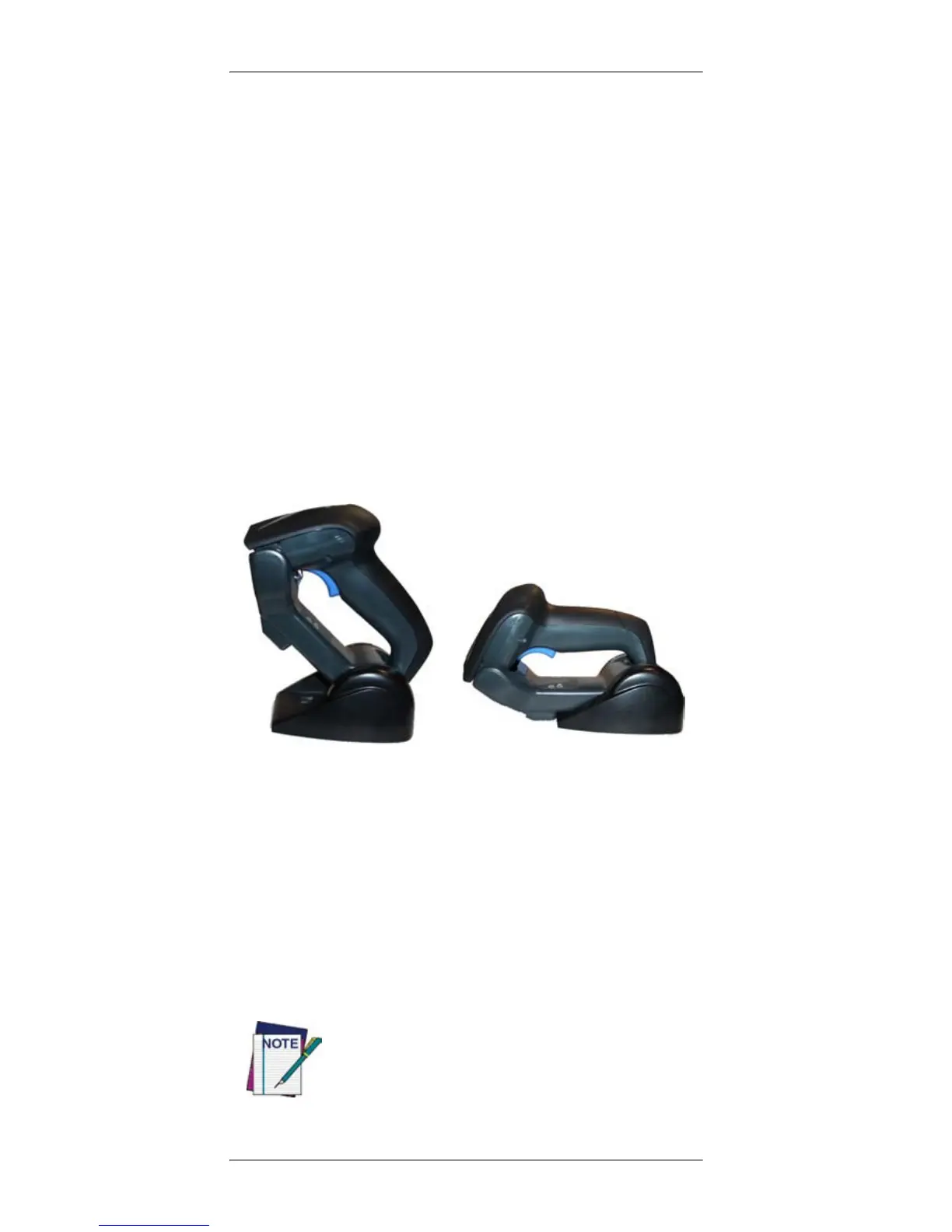

Standing
Horizontal

Datalogic Gryphon I GBT4400 2D Specifications

General

Scanner Type	2D Imager
Connectivity	Bluetooth
IP Rating	IP52
Print Contrast Ratio (Minimum)	25%
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Drop Resistance	1.8 m (6 ft) to concrete
Weight	245 g / 8.64 oz
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Light Source	Red LED
Image Sensor	CMOS
Decode Capability	1D / 2D / Postal / Stacked codes
Scanning Technology	Imaging
Resolution	752 x 480 pixels
Skew Angle	+/- 65°
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
Power Supply	5 VDC +/- 5%
Beeper	Yes
Indicators	LEDs, Beeper
Supported Barcodes	All standard 1D and 2D barcodes
