Connecting the Base Station
8 Gryphon™ I GBT4400 2D

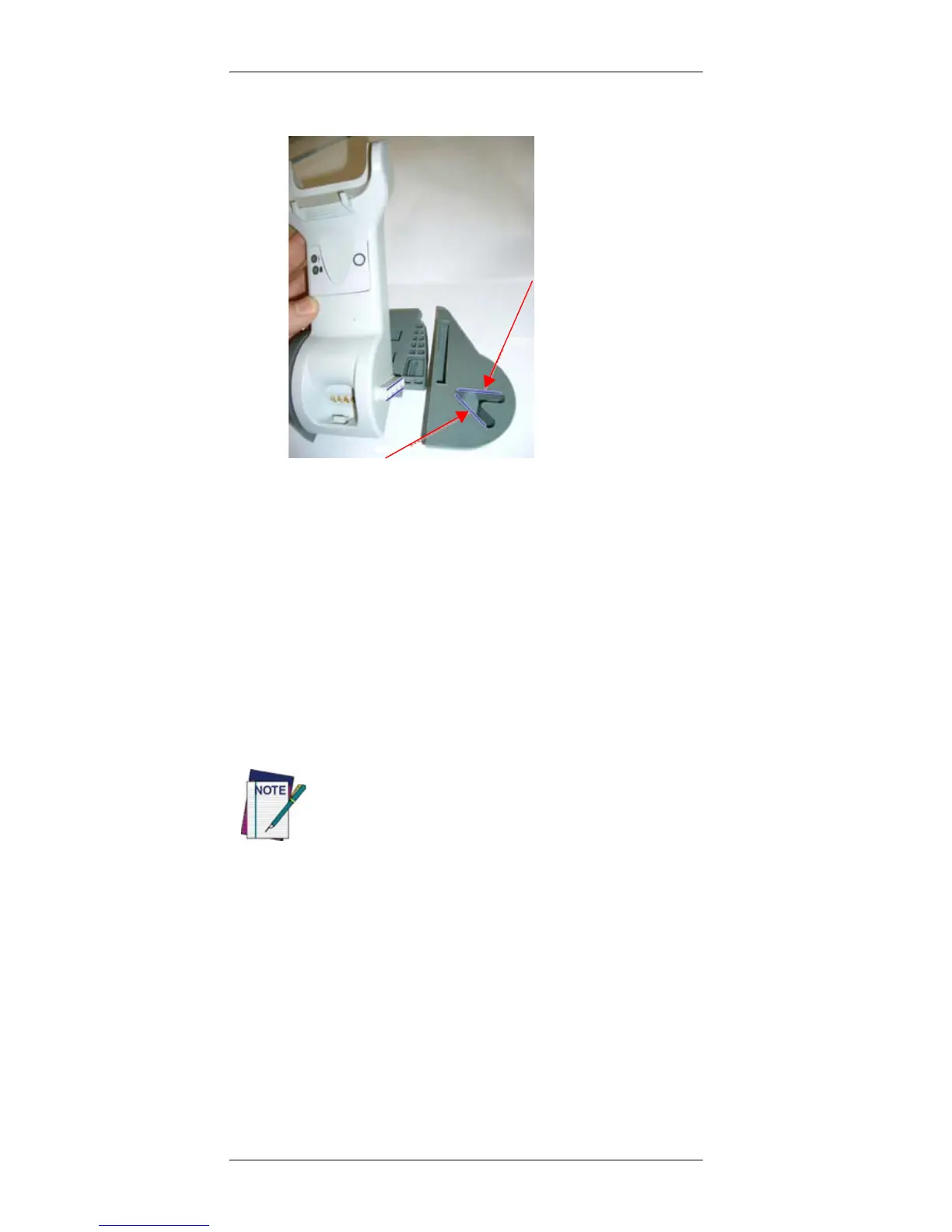

3. The stand can now be repositioned in either horizon-
tal or standing position.
Connecting the Base Station
Figure 1 on page 9 shows how to connect the Base Station to
a terminal, PC or other host device. Turn off the host before
connection and consult the manual for that equipment (if
necessary) before proceeding. Connect the interface cable be-
fore applying power to the Base Station.
Base Station Connection and Routing: Fully insert the Power Ca-
ble and Interface (I/F) Cable connectors into their respective
ports in the underside of the Base Station (see Figure 1). Then
connect to an AC Adapter, and plug the AC power cord into
the (wall) outlet.
The Gryphon 2D GBT can also be Powered by the Terminal.
The external power supply is recommended but not neces-
sary. When powered by the Terminal, the battery charger is
automatically set as Slow charge.
Horizontal
Standing

Datalogic Gryphon I GBT4400 2D Specifications

General

Scanner Type	2D Imager
Connectivity	Bluetooth
IP Rating	IP52
Print Contrast Ratio (Minimum)	25%
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Drop Resistance	1.8 m (6 ft) to concrete
Weight	245 g / 8.64 oz
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Light Source	Red LED
Image Sensor	CMOS
Decode Capability	1D / 2D / Postal / Stacked codes
Scanning Technology	Imaging
Resolution	752 x 480 pixels
Skew Angle	+/- 65°
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
Power Supply	5 VDC +/- 5%
Beeper	Yes
Indicators	LEDs, Beeper
Supported Barcodes	All standard 1D and 2D barcodes
