Datalogic Gryphon I GBT4400 2D User Manual

Connecting the Base Station
Quick Reference Guide 9

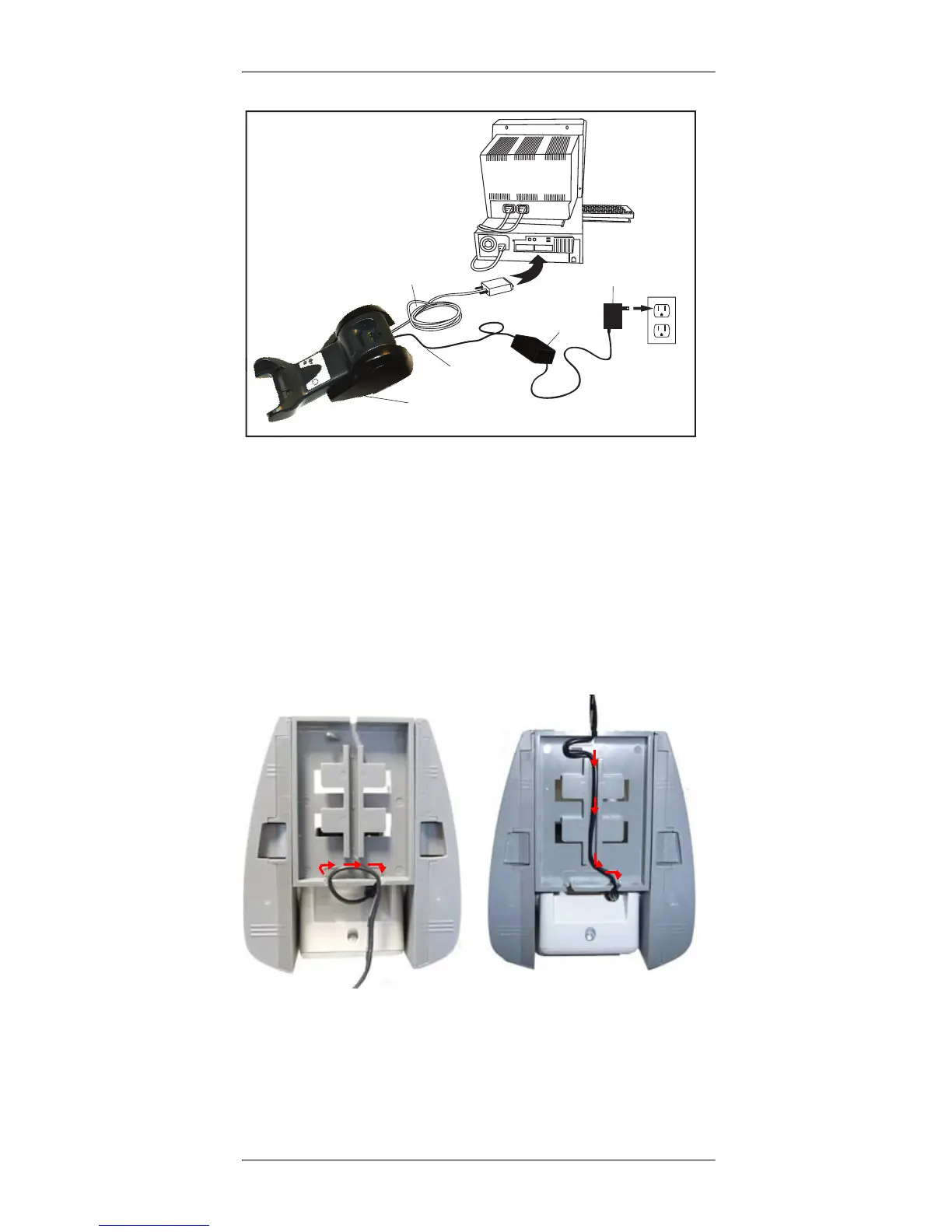

Figure 1. Connecting the Base Station
Securing the DC Power Cord (Optional)
The DC power cord for the adapter can be secured to the bot-
tom of the base in order to maximize the mechanical retention
of the cable itself. The routing of the power cord can be
changed to accommodate the base station positioning: hori-
zontal, stand or wall mounting. The cables can be looped
around to the front of the Base Station, or fed directly out the
back of the Base Station, as shown in
Figure 2.
Figure 2. Options for routing the DC cord
Please refer to the arrows depicted on the bottom of the base
when placing the cables, detailed in Figure 3.
Base
Station
I/F Cable
AC/DC
Adapter
DC Power
Cord
Wall plug
Connector

Datalogic Gryphon I GBT4400 2D Specifications

General

Scanner Type	2D Imager
Connectivity	Bluetooth
IP Rating	IP52
Print Contrast Ratio (Minimum)	25%
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Drop Resistance	1.8 m (6 ft) to concrete
Weight	245 g / 8.64 oz
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Light Source	Red LED
Image Sensor	CMOS
Decode Capability	1D / 2D / Postal / Stacked codes
Scanning Technology	Imaging
Resolution	752 x 480 pixels
Skew Angle	+/- 65°
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
Power Supply	5 VDC +/- 5%
Beeper	Yes
Indicators	LEDs, Beeper
Supported Barcodes	All standard 1D and 2D barcodes
