Datalogic Gryphon I GBT4400 2D User Manual

Power Off
20 Gryphon™ I GBT4400 2D
Power Off

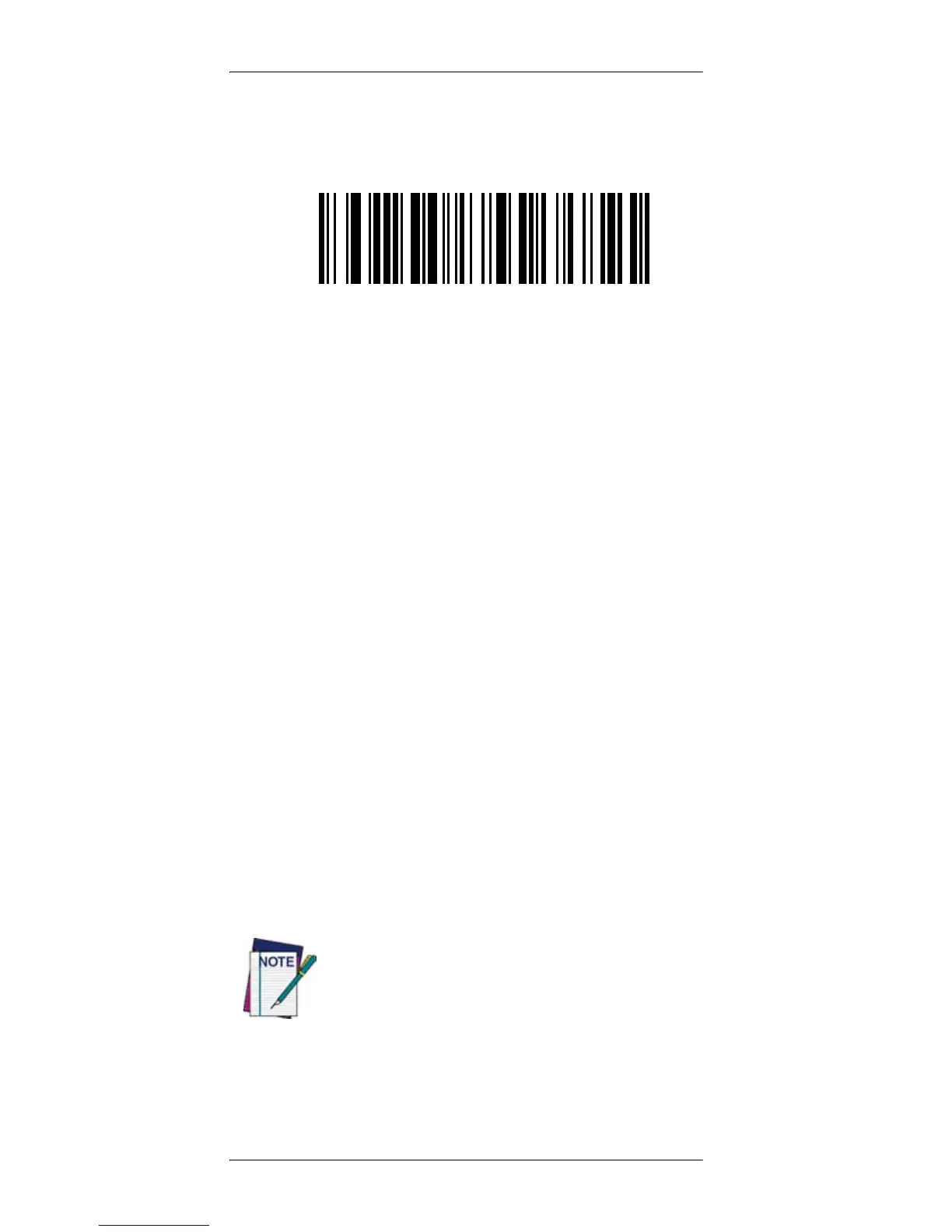

Scan the bar code below to shut off power to the BT handheld
until the next trigger pull
PowerOff
Selecting the Interface Type
Upon completing the physical connection between the reader
and its host, proceed directly to
Interface Selection on page 20
for information and programming for the interface type the
reader is connected to (for example: RS-232, Keyboard
Wedge, USB, etc.) and scan the appropriate barcode to select
your system’s correct interface type.
Interface Selection
Each reader model will support one of the following sets of
host interfaces:
General Purpose Models: RS-232, RS-232 OPOS, USB, Key-
board Wedge, Wand.
Retail Point of Sale Models : RS-232, RS-232 OPOS, USB,
IBM 46XX.
Information and programming options for each interface type
are provided in this section. For defaults and additional infor-
mation associated with each interface, proceed to the corre-
sponding chapter in the Gryphon™ 4400 PRG
Configuring the Interface
Scan the programming bar code which selects the appropriate
interface type for the system the reader will be connected to.
Unlike some other programming features and options,
interface selections require that you scan only one pro-
gramming barcode label. DO NOT scan an ENTER/EXIT bar-
code prior to scanning an interface selection barcode.
Some interfaces require the scanner to start in the dis-
abled state when powered up. If additional scanner con-
figuration is desired while in this state, pull the trigger
and hold for 5 seconds. The scanner will change to a state
that allows programming with barcodes.

Datalogic Gryphon I GBT4400 2D Specifications

General

Scanner Type	2D Imager
Connectivity	Bluetooth
IP Rating	IP52
Print Contrast Ratio (Minimum)	25%
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Drop Resistance	1.8 m (6 ft) to concrete
Weight	245 g / 8.64 oz
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Light Source	Red LED
Image Sensor	CMOS
Decode Capability	1D / 2D / Postal / Stacked codes
Scanning Technology	Imaging
Resolution	752 x 480 pixels
Skew Angle	+/- 65°
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
Power Supply	5 VDC +/- 5%
Beeper	Yes
Indicators	LEDs, Beeper
Supported Barcodes	All standard 1D and 2D barcodes
