Datalogic Gryphon I GBT4400 2D User Manual

Connecting the Base Station
10 Gryphon™ I GBT4400 2D

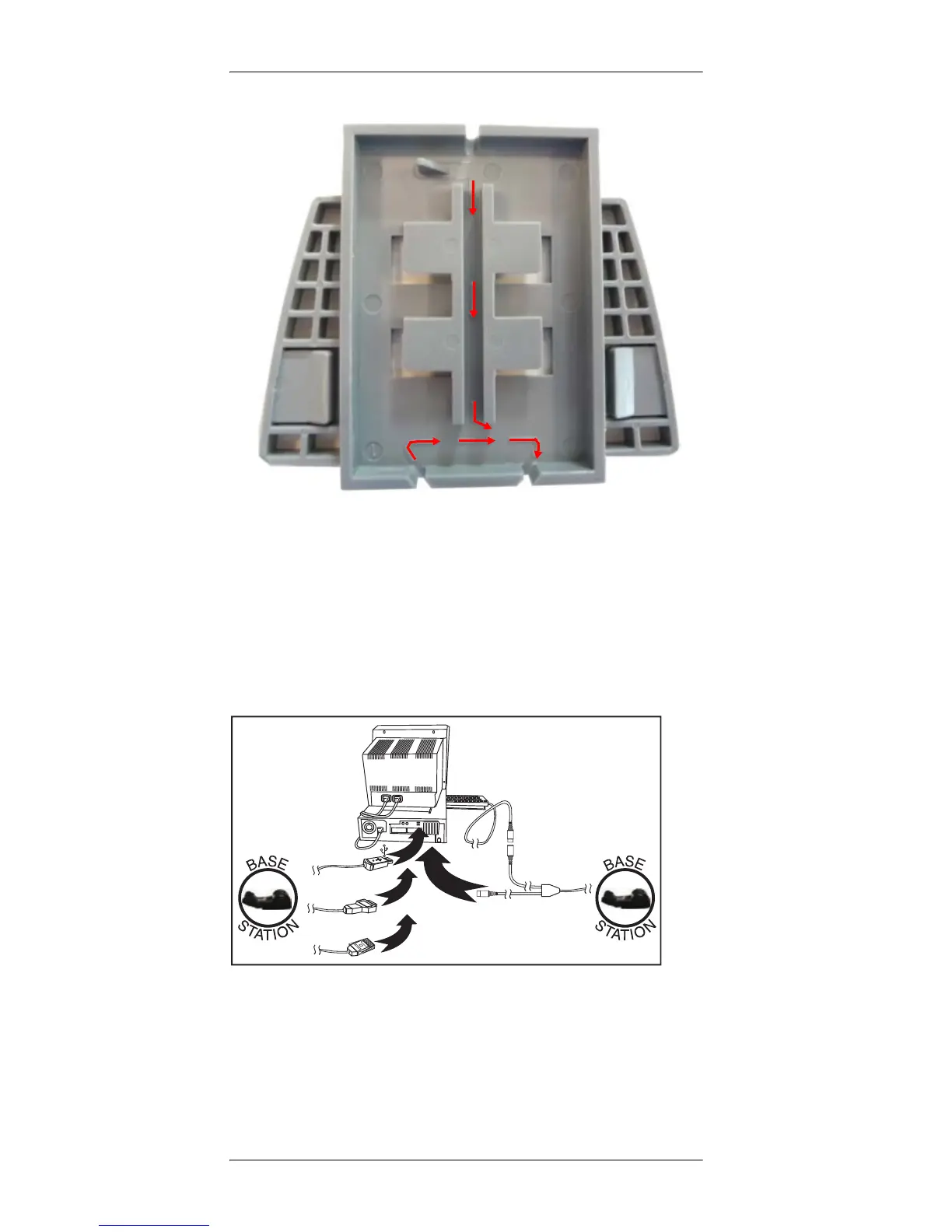

Figure 3. Arrows showing routing
Host Connection:
Verify before connection that the reader’s ca-
ble type is compatible with your host equipment. Most con-
nections plug directly into the host device as shown in Figure
4 on page 10. Keyboard Wedge interface cables have a ‘Y’ con-
nection where its female end mates with the male end of the
cable from the keyboard and the remaining end at the key-
board port on the terminal/PC.
Figure 4. Connecting to the Host
Power Connection:
Plug the AC Adapter in to an approved AC
wall socket with the cable facing downwards (as shown in Fig-
ure 1) to prevent undue strain on the socket.
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
W
a
n
d
or...
or...
or...

Datalogic Gryphon I GBT4400 2D Specifications

General

Scanner Type	2D Imager
Connectivity	Bluetooth
IP Rating	IP52
Print Contrast Ratio (Minimum)	25%
Interface	USB, RS-232, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Drop Resistance	1.8 m (6 ft) to concrete
Weight	245 g / 8.64 oz
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Light Source	Red LED
Image Sensor	CMOS
Decode Capability	1D / 2D / Postal / Stacked codes
Scanning Technology	Imaging
Resolution	752 x 480 pixels
Skew Angle	+/- 65°
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
Power Supply	5 VDC +/- 5%
Beeper	Yes
Indicators	LEDs, Beeper
Supported Barcodes	All standard 1D and 2D barcodes
