Wand Signal Speed

Product Reference Guide

93

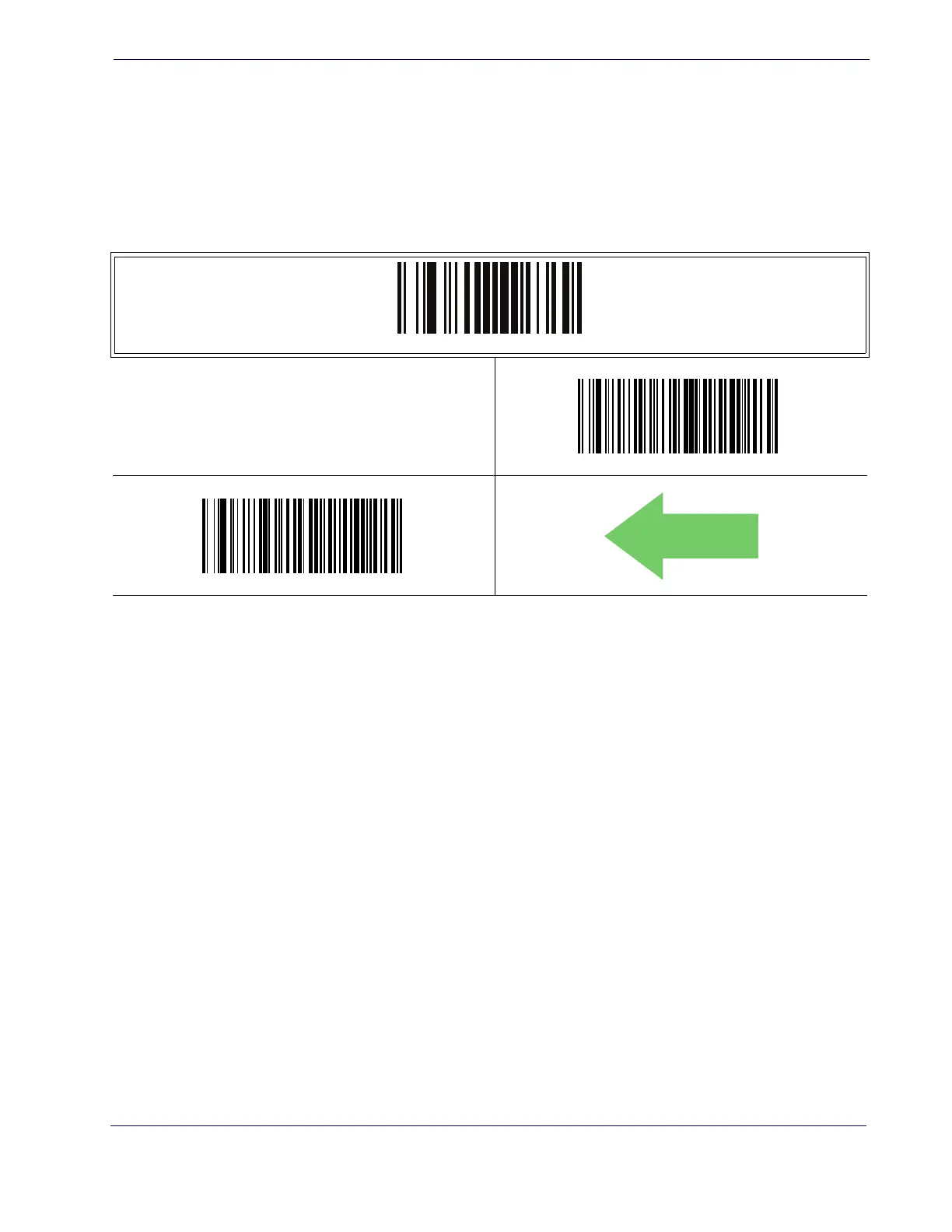

Wand Signal Speed

This feature specifies the speed of the Wand output signal per nominal bar or space.

Choices are:

• 330 microseconds

• 660 microseconds

ENTER/EXIT PROGRAMMING MODE

Wand Signal Speed = 330ms

Wand Signal Speed = 660ms

DEFAULT
