Symbologies

230 QuickScan

TM

QD2100

Codabar — cont.

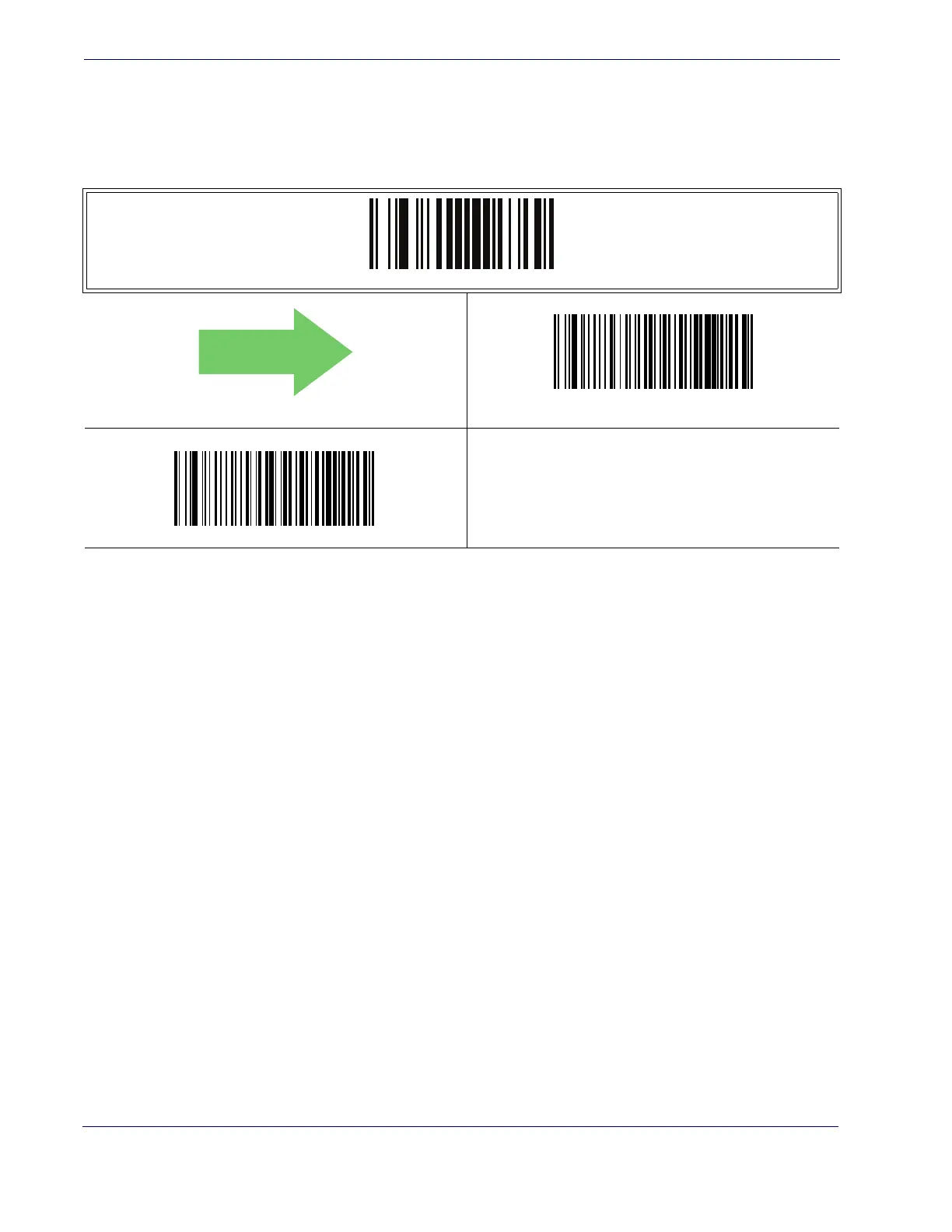

Codabar Start/Stop Character Match

When enabled, this option requires that start and stop characters match

ENTER/EXIT PROGRAMMING MODE

DEFAULT

Codabar Start/Stop Character Match = Don’t Require

Match

Codabar Start/Stop Character Match = Require Match

.
