General Features

26 QuickScan

TM

QD2100

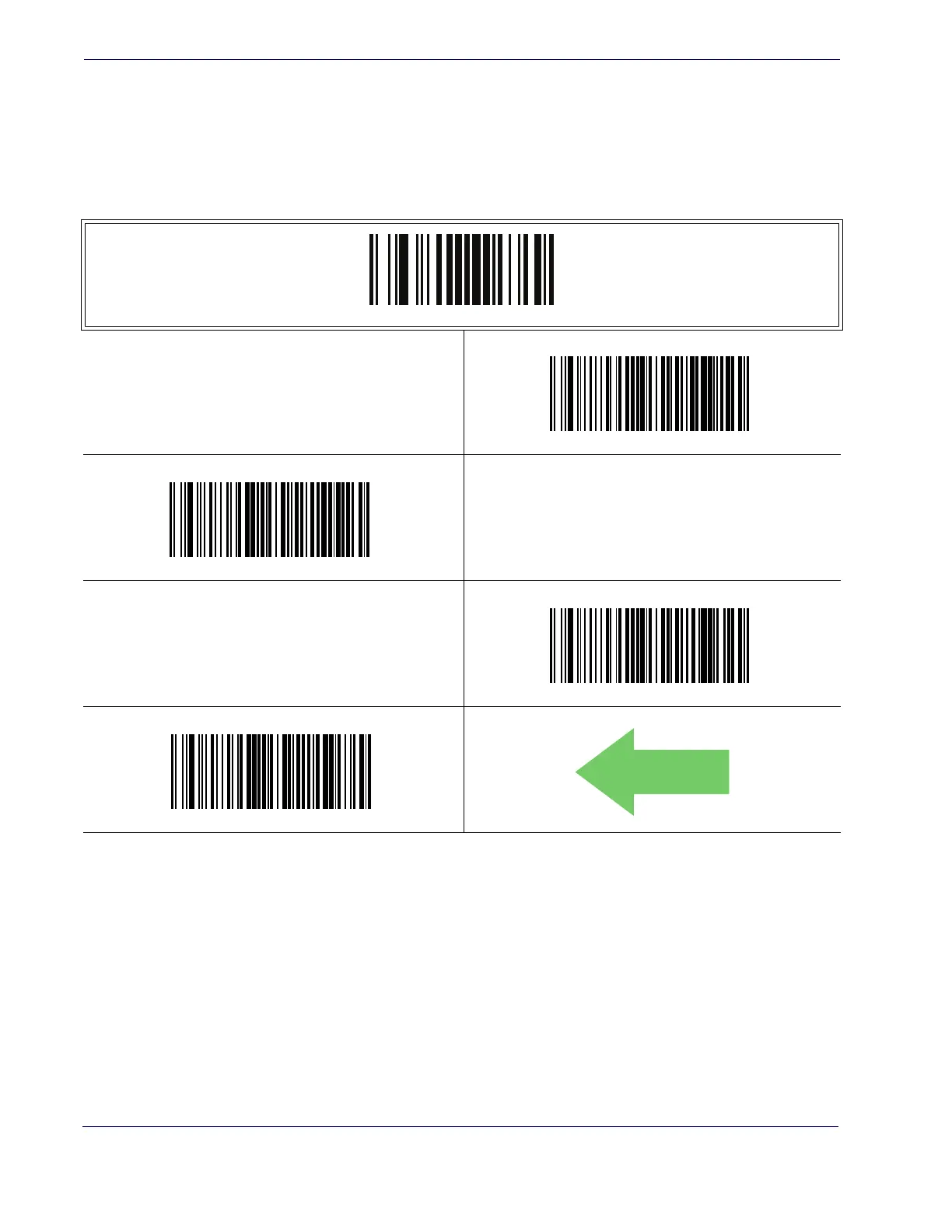

Good Read Beep Volume

Selects the beeper volume (loudness) upon a good read beep. There are three selectable

volume levels.

ENTER/EXIT PROGRAMMING MODE

Good Read Beep Volume = Beeper Off

Good Read Beep Volume = Low

Good Read Beep Volume = Medium

Good Read Beep Volume = High

DEFAULT
