USB Keyboard Speed

Product Reference Guide

79

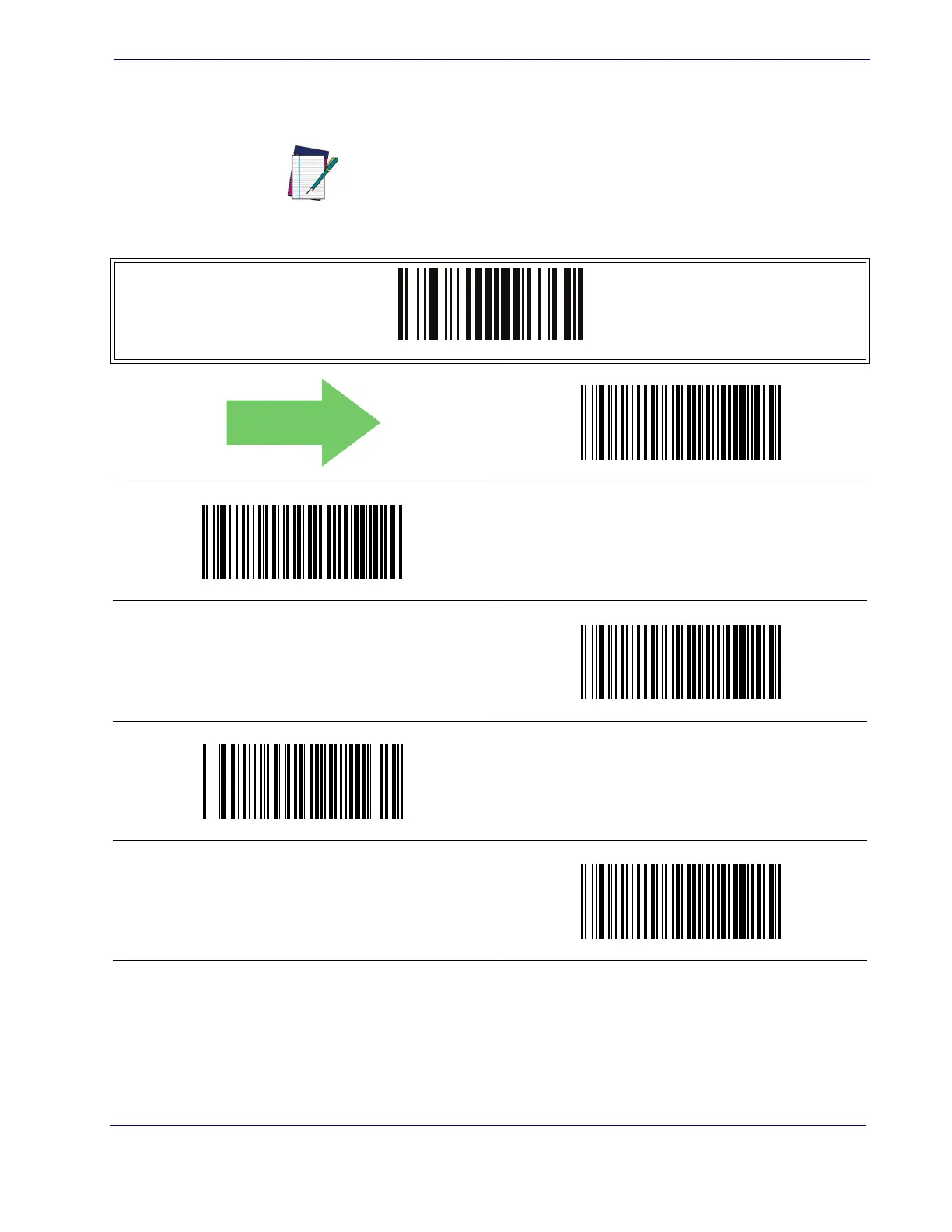

USB Keyboard Speed

This option specifies the USB poll rate for a USB keyboard.

NOTE

ENTER/EXIT PROGRAMMING MODE

DEFAULT

USB Keyboard Speed = 1ms

USB Keyboard Speed = 2ms

USB Keyboard Speed = 3ms

USB Keyboard Speed = 4ms

USB Keyboard Speed = 5ms

This feature applies ONLY to the USB Keyboard interface.
