Interfaces

16 QuickScan

TM

QD2100

USB Suspend Mode

This setting enables/disables the ability of USB interfaces to enter suspend mode.

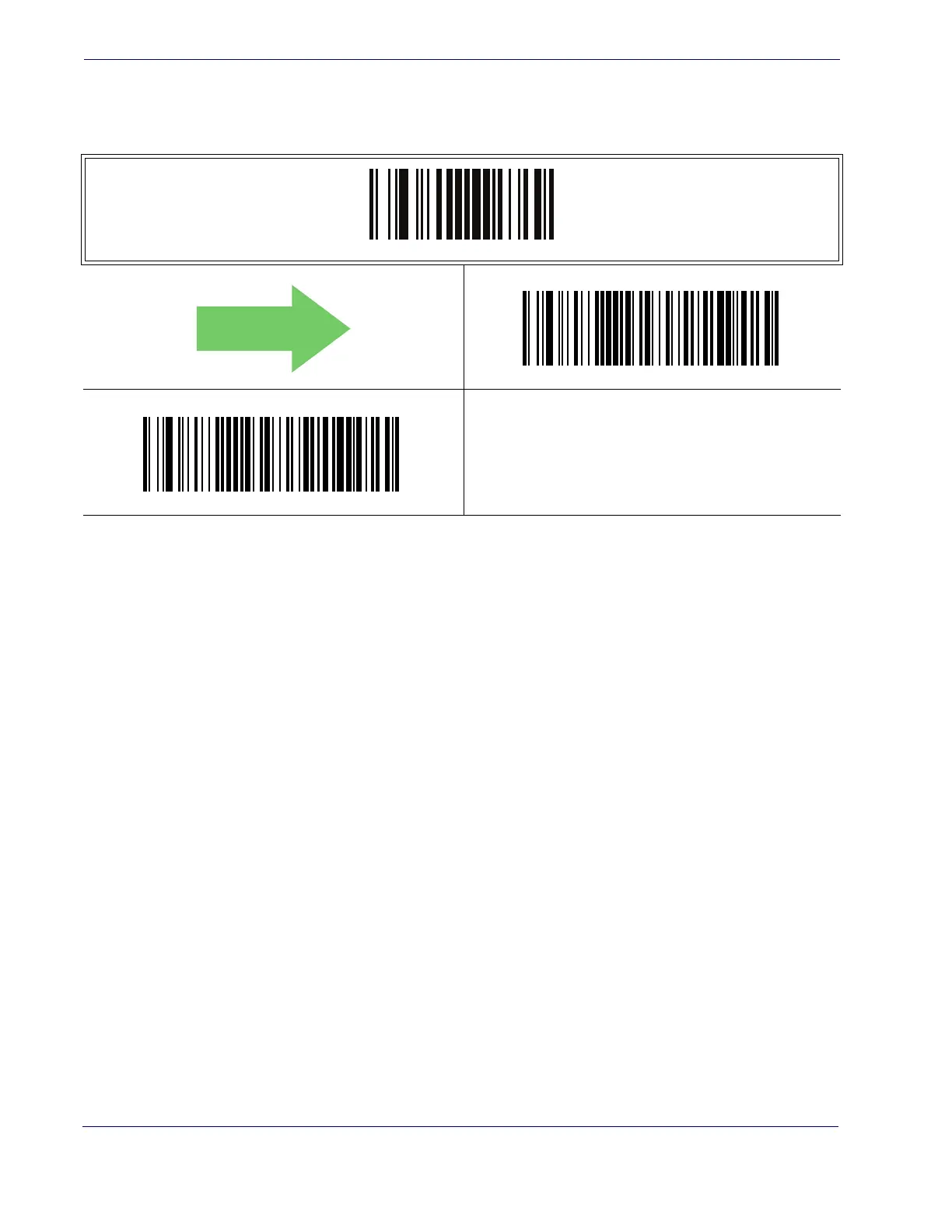

ENTER/EXIT PROGRAMMING MODE

DEFAULT

USB Suspend Mode = Disable

USB Suspend Mode = Enable
