Data Editing
106 QuickScan
TM
QD2100
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf-
fix) by scanning the appropriate bar code in the section Label ID Control on page 108.
Reference Figure 6 for Label ID positioning options if multiple identification features are
enabled.
3. Scan a bar code to select the symbology for which you wish to configure a custom Label
ID
from the section Label ID Symbology Selection, starting on page 109.
4. Determine the desired character(s) (y
ou may choose up to three) which will represent the
Label ID for the selected symbology.
5. Turn to the ASCII Character Set on the inside back cover of this manual and find the
equivalent hex digits associated with your choice
of Label ID. For example, if you wish to
select an equal sign (=) as a Label ID, the chart indicates its associated hex characters as
3D. Turn to Keypad, starting on page 359 and scan the bar codes representing the
hex characters determined. For the example giv
en, the characters ‘3’ and ‘D’ would be
scanned. More examples of Label ID settings are provided in Ta ble 18.
NOTE
If you make a mistake before the last character, scan the CANCEL bar
co
de to abort and not save the entry string. You can then start again at
the beginning.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

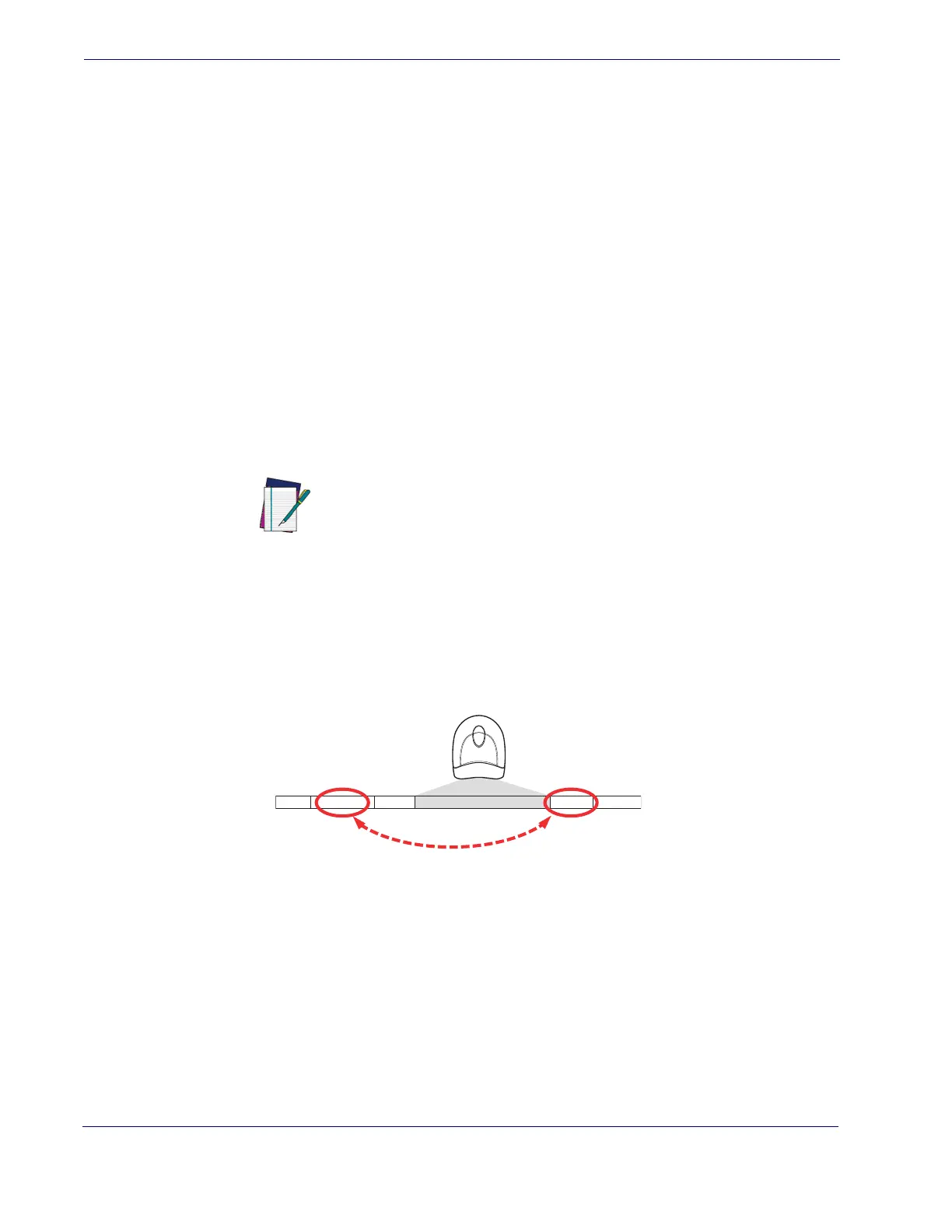

Figure 6. Label ID Position Options
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
To Next Page
