Appendix B – Sample Programs

158 Class Series Programmer’s Manual

Private Sub Printer_Click()

CommonDialog1.ShowPrinter

End Sub

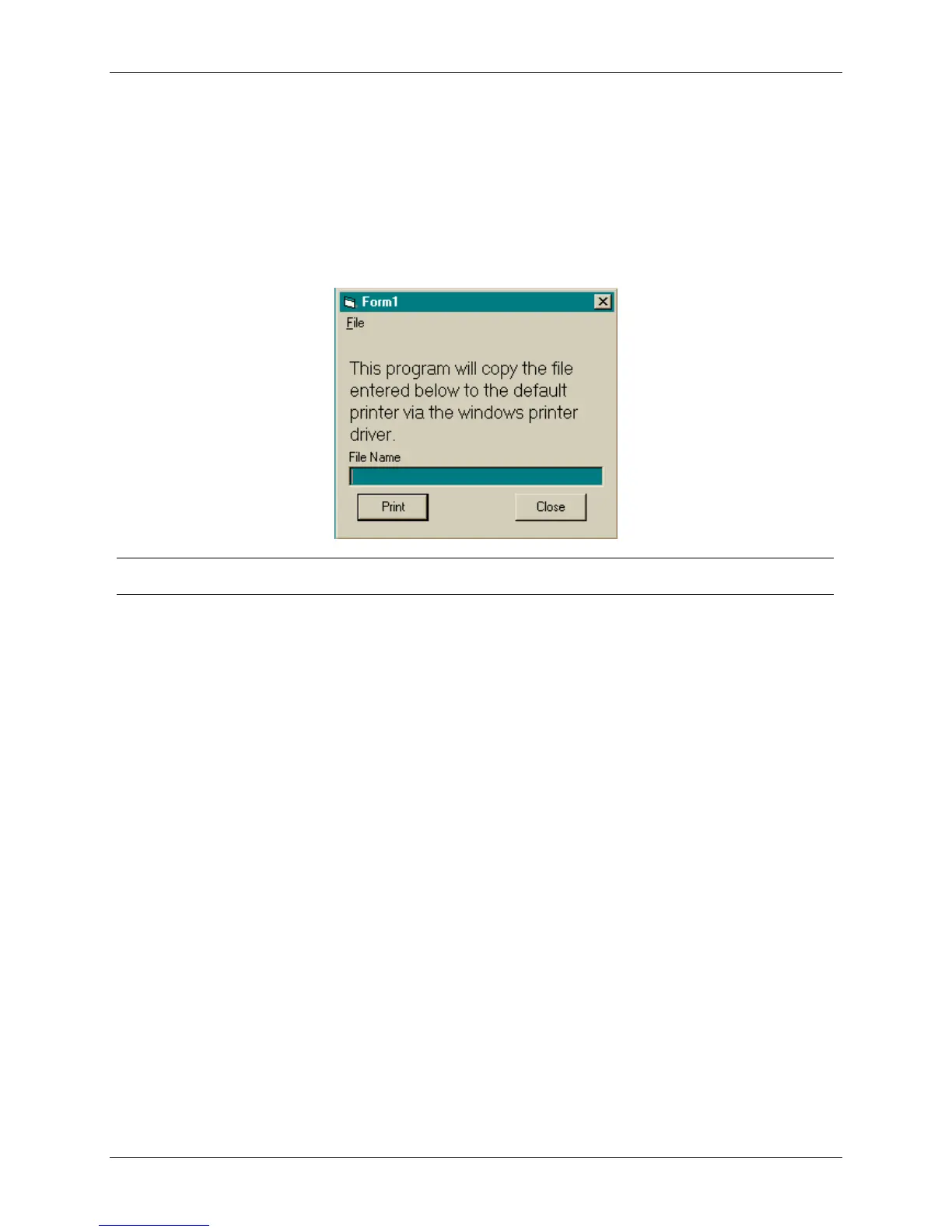

This will create the form pictured below:

 Note: It may be necessary to remove and reinsert the common dialog control due to Windows

registry

issues.
