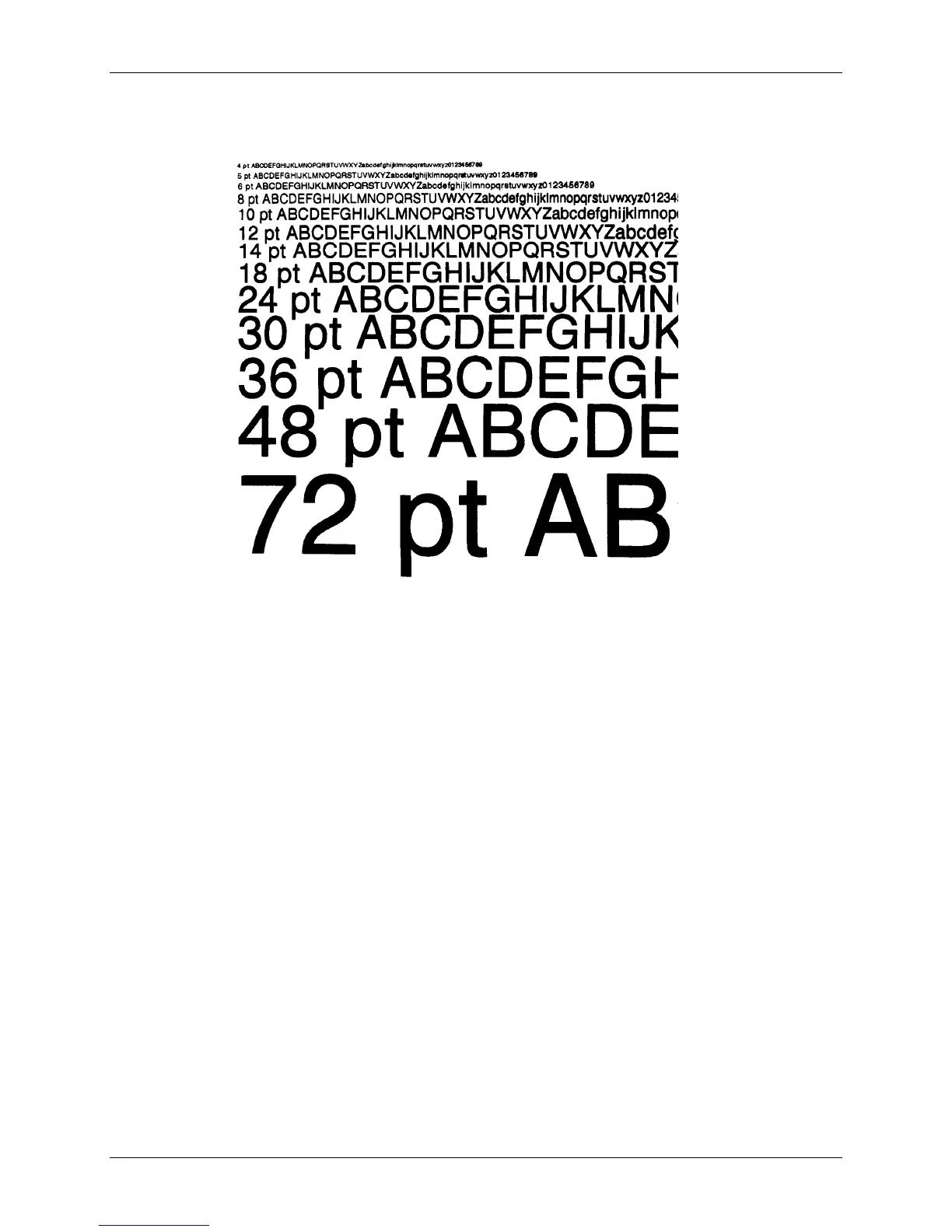

Appendix C – Available Fonts

164 Class Series Programmer’s Manual

9: Identifies the Internal CG Triumvirate font. Point sizes are selected by the number in the Format

Record header eee height field, see Table C-6.
