Appendix Q – ILPC Programming Examples
Class Series Programmer’s Manual 259

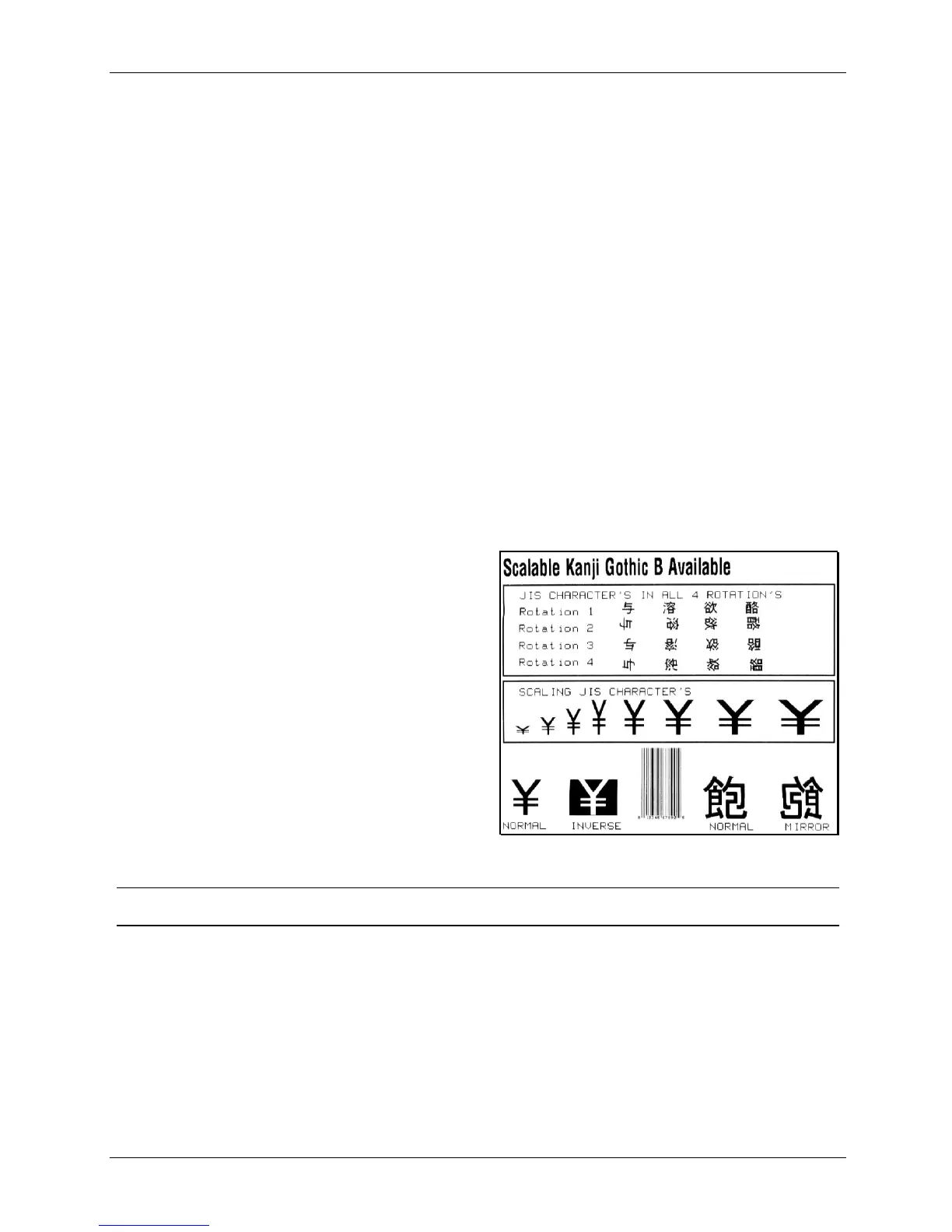

Sample Kanji Gothic B DPL file (binary addressing) and the resulting label:
<02>L<CR>
D11<CR>
ySPM<CR>
1911S0003100010P020P015Scalable Kanji Gothic B Available<CR>
1B110000020017001234567890<CR>
yUJS<CR>
1X1100001900010b0392011000020002<CR>
112200002800030JIS CHARACTER’S IN ALL 4 ROTATION’S<CR>
112200002600030Rotation 1<CR>
1911U4002650150P012P012<4D><3F><21><21><21><21><4D><4F><21><21><21><21><4D><5F><21><21>
<21><21><4D><6F><00><00><CR>
112200002400030Rotation 2<CR>
2911U4002600150P012P012<4D><3F><00><00><CR>
2911U4002600205P012P012<4D><4F><00><00><CR>
2911U4002600250P012P012<4D><5F><00><00><CR>
2911U4002600300P012P012<4D><6F><00><00><CR>
112200002200030Rotation 3<CR>
3911U4002330315P012P012<4D><6F><21><21><21><21><4D><5F><21><21><21><21><4D><4F><21><21>
<21><21><4D><3F><00><00><CR>
112200002000030Rotation 4<CR>
4911U4001950165P012P012<4D><3F><00><00><CR>
4911U4001950215P012P012<4D><4F><00><00><CR>
4911U4001950265P012P012<4D><5F><00><00><CR>
4911U4001950315P012P012<4D><6F><00><00><CR>
1X1100001100010b0392007500020002<CR>
112200001650030SCALING JIS CHARACTER’S<CR>
1911U4001200020P010P020<21><6F><00><00><CR>
1911U4001200050P020P020<21><6F><00><00><CR>
1911U4001200080P030P020<21><6F><00><00><CR>
1911U4001200110P040P020<21><6F><00><00><CR>
1911U4001200145P040P030<21><6F><00><00><CR>
1911U4001200190P040P040<21><6F><00><00><CR>
1911U4001200250P040P050<21><6F><00><00><CR>
1911U4001200320P040P060<21><6F><00><00><CR>
112200000050010NORMAL INVERSE<CR>
112200000050245 NORMAL MIRROR<CR>
1911U4000250010P040P040<21><6F><00><00><CR>
1911U4000250245P040P040<4B><30><00><00><CR>
A5<CR>
1911U4000250090P040P040<21><6F><00><00><CR>
A1<CR>
M<CR>
1911U4000250390P040P040<4B><30><00><00><CR>
M<CR>
E<CR>
 Note: The notation “<xx>” in this DPL file should be interpreted by the reader as representing the hexadecimal
value of the byte sent to the printer.
