Appendix Q – ILPC Programming Examples

264 Class Series Programmer’s Manual

1911UH001200110P040P020<AC><AC><00><00><CR>

1911UH001200145P040P030<AC><AC><00><00><CR>

1911UH001200190P040P040<AC><AC><00><00><CR>

1911UH001200250P040P050<AC><AC><00><00><CR>

1911UH001200320P040P060<AC><AC><00><00><CR>

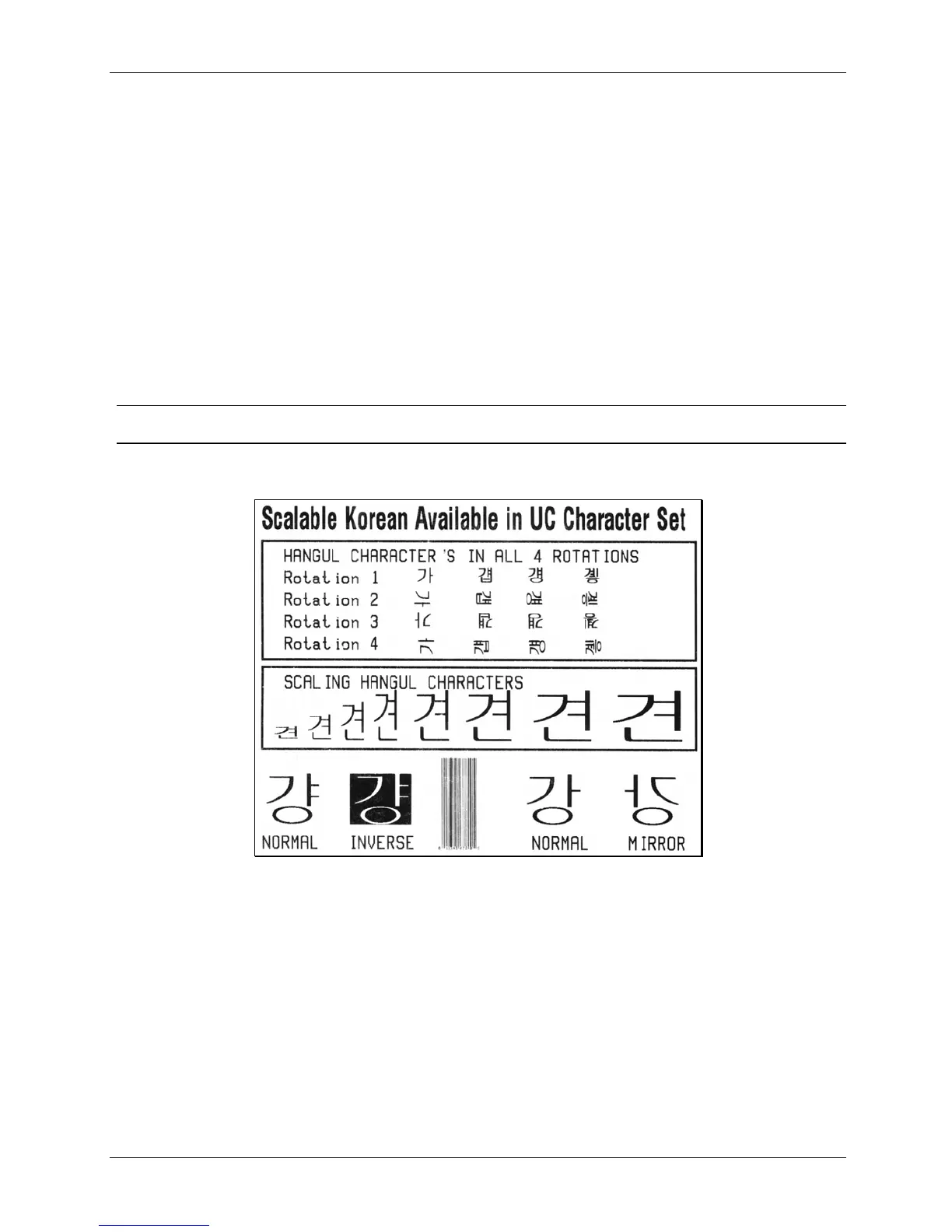

112200000200010NORMAL INVERSE<CR>

112200000200245 NORMAL MIRROR<CR>

1911UH000450010P040P040<AC><4D><00><00><CR>

1911UH000450245P040P040<AC><15><00><00><CR>

A5<CR>

1911UH000450090P040P040<AC><4D><00><00><CR>

A1<CR>

M<CR>

1911UH000450390P040P040<AC><15><00><00><CR>

M<CR>

E<CR>

 Note: The notation “<xx>” in this DPL file should be interpreted by the reader as representing the hexadecimal

value of the byte sent to the printer.
