Datamax A-Class A-6310 User Manual

136 A-Class
COM C (J4)
Serial Port C (see Section 2.2.2.2) functions as an RS-232 interface or as a dedicated
device interface, according to the jumper settings indicated below:
COM C Jumper Setting Functions
Position
Function
JMP 12 JMP 13 JMP 14 JMP 15
RS-232 Communications On On On On
RFID Off On On On
Remote Display On On Off On
;
Jumper settings will override most printer menu settings.
COM D (J3)
Serial Port D is an RS-232 communications interface (see Section 2.2.2.2).

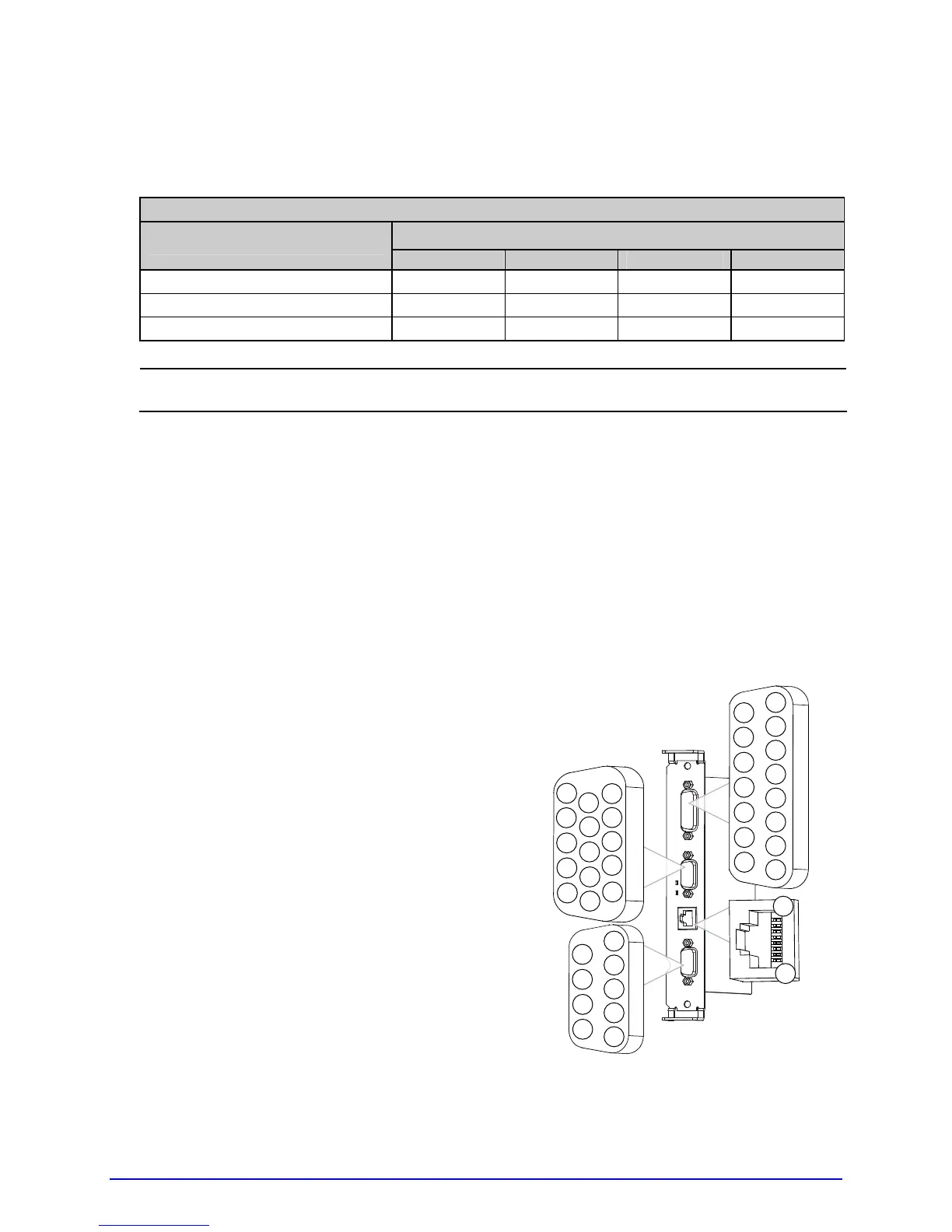

Applicator Interface CCA Cable Connections
Depending on the application and port pin connections, you may need the following hardware
to complete the interface connections:
•
GPI/O A (J1)
– DB15 Male connector (e.g.,
Star Tech C15PCM) and
shielded cabling.
• GPI/O B (J2)
– High Density DB15 Male VGA
connector (e.g., Star Tech
C15HPSM) and shielded
cabling.
• COM C (J4)
– DB9 Male connector (e.g.,
Star Tech C9PSM) and
shielded cabling.
• COM D (J3)
– RJ45 Plug (e.g., Belkin
R6G088) and cabling
(shielding optional).
J2
J1
9
5
4
3
2
1
8
7
6
J4
1
6
11
5
4
3
2
9
8
7
10
15
14
13
12
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
8
1
J3
