Datamax M-Class User Manual

M-Class 129

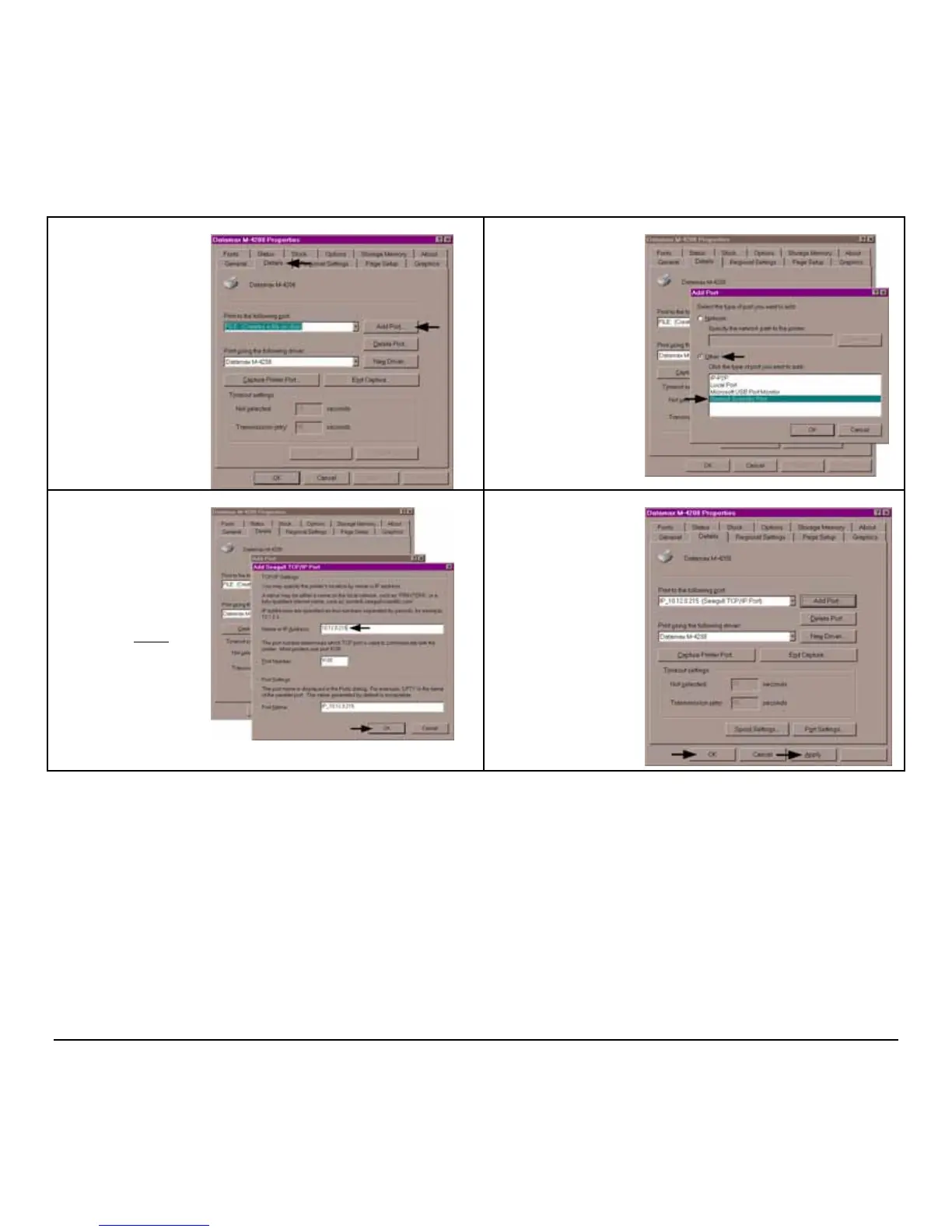

15
Click on the ‘Details’
tab and then click ‘Add
Port’.
16
In the ‘Add Port’
window, Select ‘Other’
and “Seagull Scientific
Port” and then click
‘OK’.
17
In the ‘Name or IP
Address:’ field enter the
IP address of your
printer. The ‘Port
Number’ and ‘Port
Name’ fields do not
need to be changed.
When finished click
“OK’
18
Click ‘Apply’ and then
click ‘OK’.
The driver and port
installation is now
complete. The printer
can be selected through
any window’s
application.

Datamax M-Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi, 300 dpi
Print Speed	6 IPS (152 mm/s)
Interface	USB, Serial, Ethernet, Parallel
Media Sensor	Reflective and Transmissive
Supported Media Types	Labels, Tags
Media Thickness	0.0025" (0.0635 mm)
