Diagnostics Calibration Procedure
6 - 16 0070-10-0441 Passport 2®/Passport 2 LT™ Service Manual
6.4.7.7 Overpressure Test (Adult, Pediatric, Neonate)
The purpose of this test is to verify the hardware overpressure sensor is functioning properly.
1. Connect the dummy cuff / test chamber to the side panel fitting.
2. Rotate the control knob to highlight the specified overpressure test. Once the
overpressure test is highlighted press the control knob to activate the test.
NOTE: Due to safety conditions the unit must be reset after each
Overpressure Size as been tested.

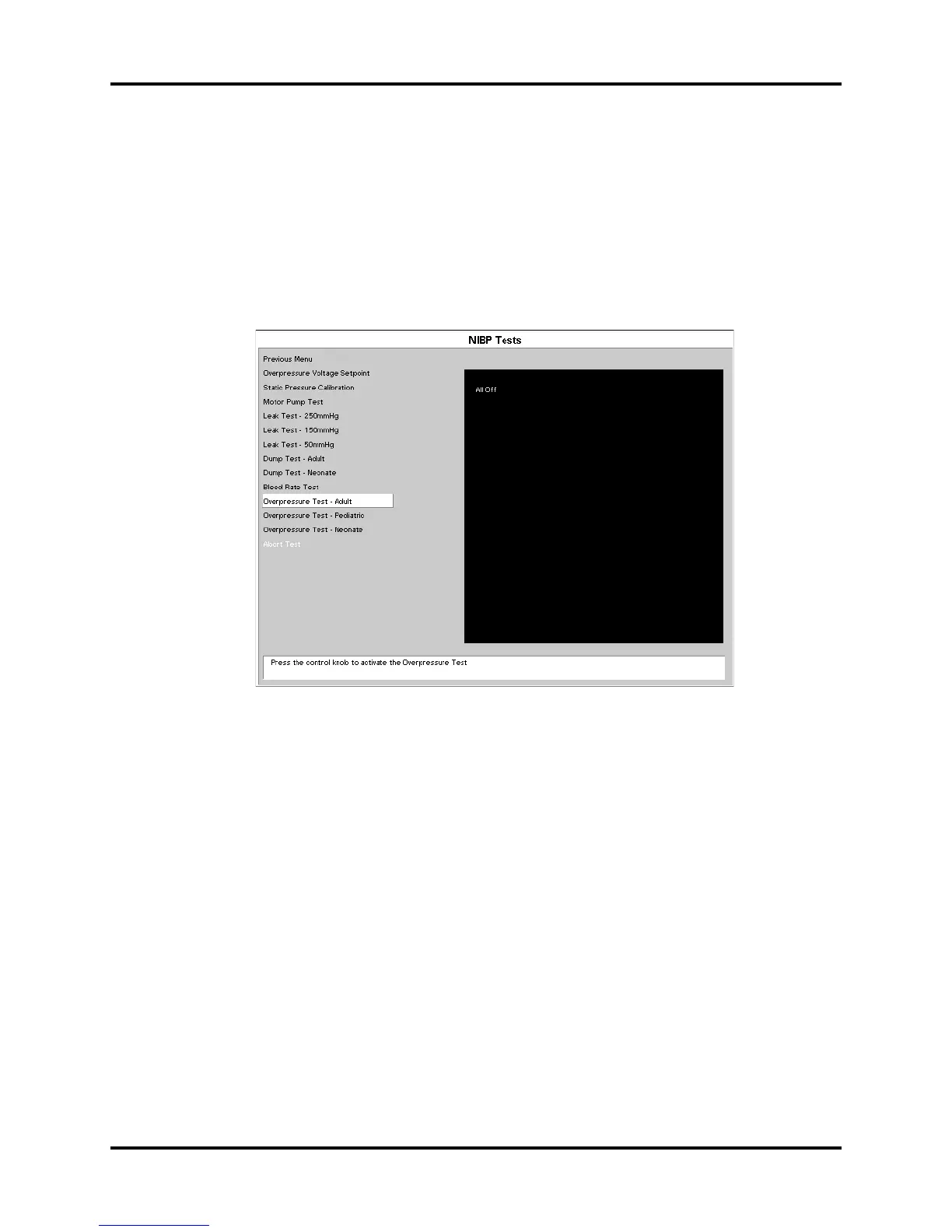

FIGURE 6-18
Software Trip points
Specifications: Adult < or = 300 mmHg
Pediatric < or = 200 mmHg
Neonate < or = 150.0 mmHg
Hardware Trip points
Specifications: Adult < or = 330 mmHg
Pediatric < or = 220 mmHg
Neonate < or = 165 mmHg
3. Press the PRINT key to record the test result on the local printer.
