DEC VT1000 - The Video Terminals Components

2 Overview of the Terminal
1.1 The Video Terminal’s Components

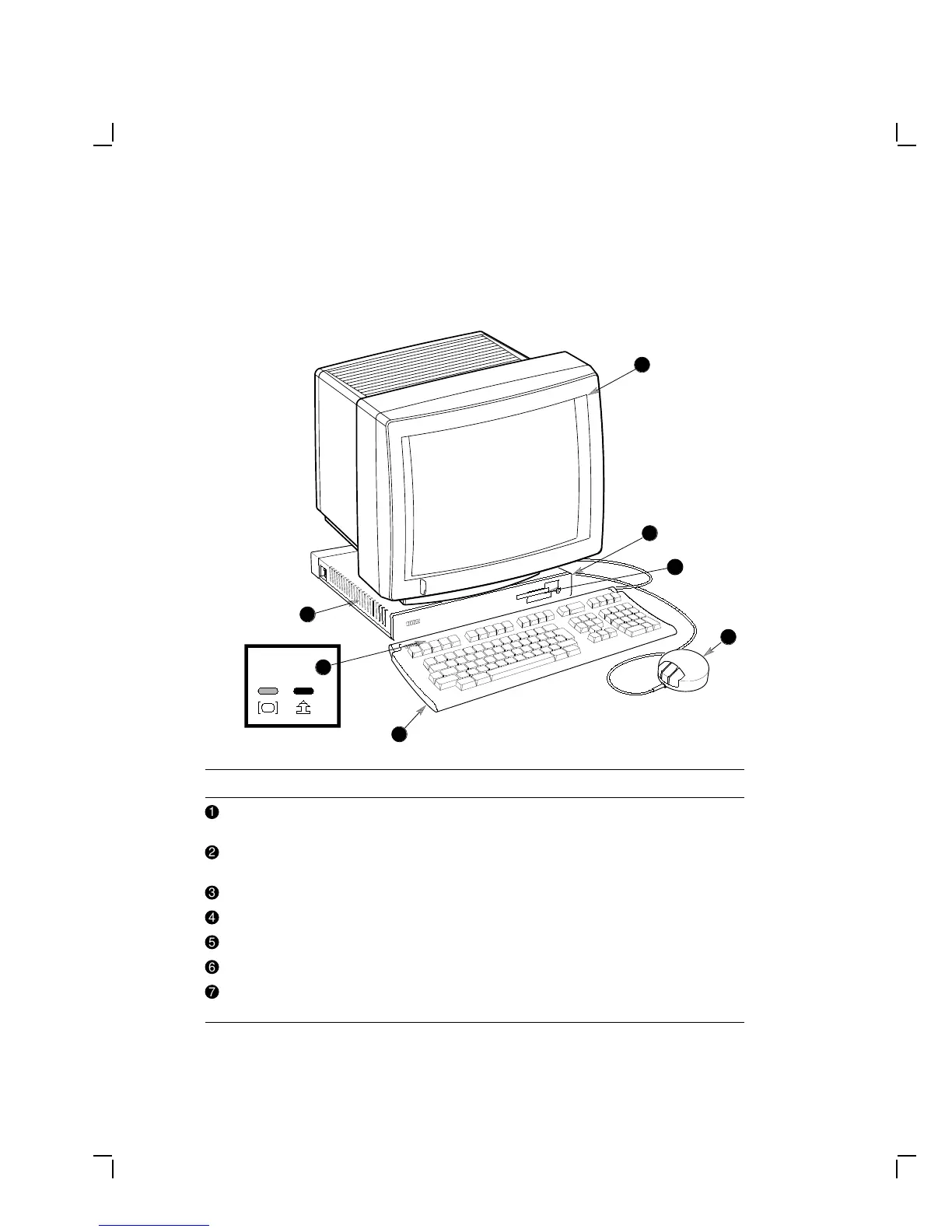

The video terminal includes the following components:
MA-0509-90.DG
Keyboard
LEDs
7
6
5
4
3
2
1
Item Name Description
! Monitor VR150, VR262, VR315, VR319, or VRE01
electroluminescent (EL) flat panel
" System board LED Red LED, visible through the ventilation slots
on the side of the system box
# Terminal logo VT1000, VT1200, or DECimage 1200
$ Mouse —
% Keyboard LK400 series
& Keyboard LEDs Hold and lock indicators
' Power supply LED Green LED, visible through the ventilation slots
on the side of the system box
