Removing and Replacing FRUs 53
4.3 Image Board (DECimage 1200 Only)
CAUTION
The image board and the SIMM cards can be damaged by
electrostatic discharge. Handle the image board by its cover
or strap. Avoid contact with any components or circuitry within
the system box.

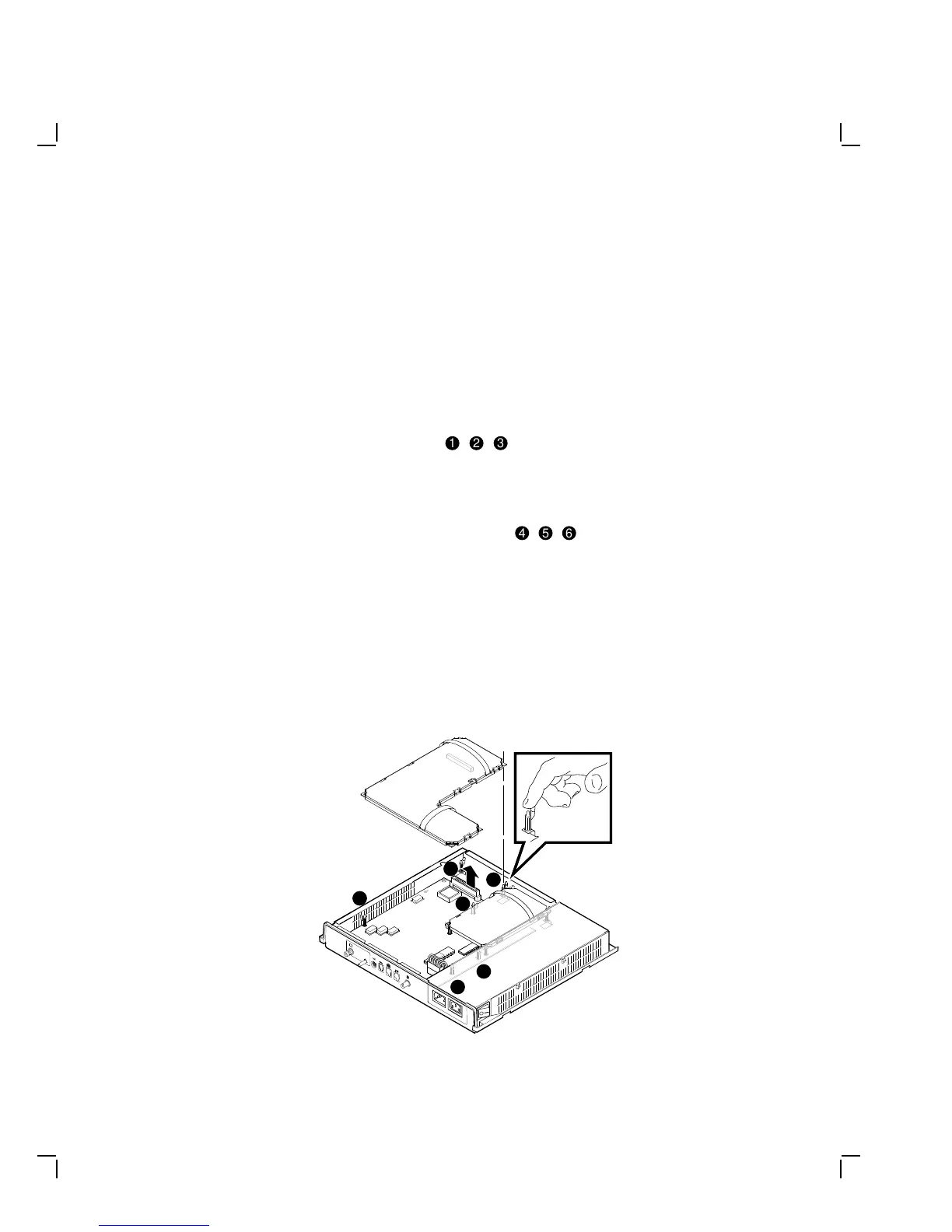

To remove the image board:
1. Release three standoff clips (
!
,
"
,
#
) by gently pushing each clip
away from the image board and lifting up on the edges of the board.
2. Hold the short strap on the image board and gently pull up to loosen
the board from the standoffs.
3. Release the other three standoff clips (
$
,
%
,
&
) as in step 1.
4. Grasp the long strap of the image board and pull up firmly to release
the image board connector from the system logic board.
5. Place the board on top of the power supply’s metal cover, with the
strap side down. Use the metal cover as a work surface to remove and
replace SIMM cards.
6. Remove the SIMM card(s) from the old RAM controller board or image
board and install them on the new image board (Section 4.4).
To install the image board, reverse steps 1 through 4.
22%
GSF_1362_89.DG
1
2
3
4
5
6
38%
MA-0252-90.DG
1
2
3
4
6
5
