Overview of the Terminal 3

1.1.1 System Box

The system box provides the connectors for power, system communication,

the keyboard, monitor, mouse, and a serial printer. The system box is

368 mm (14.5 in.) deep

394 mm (15.5 in.) wide

57 mm (2.25 in.)

high. A cover panel attaches to the rear of the system box to conceal the

connectors and cables.

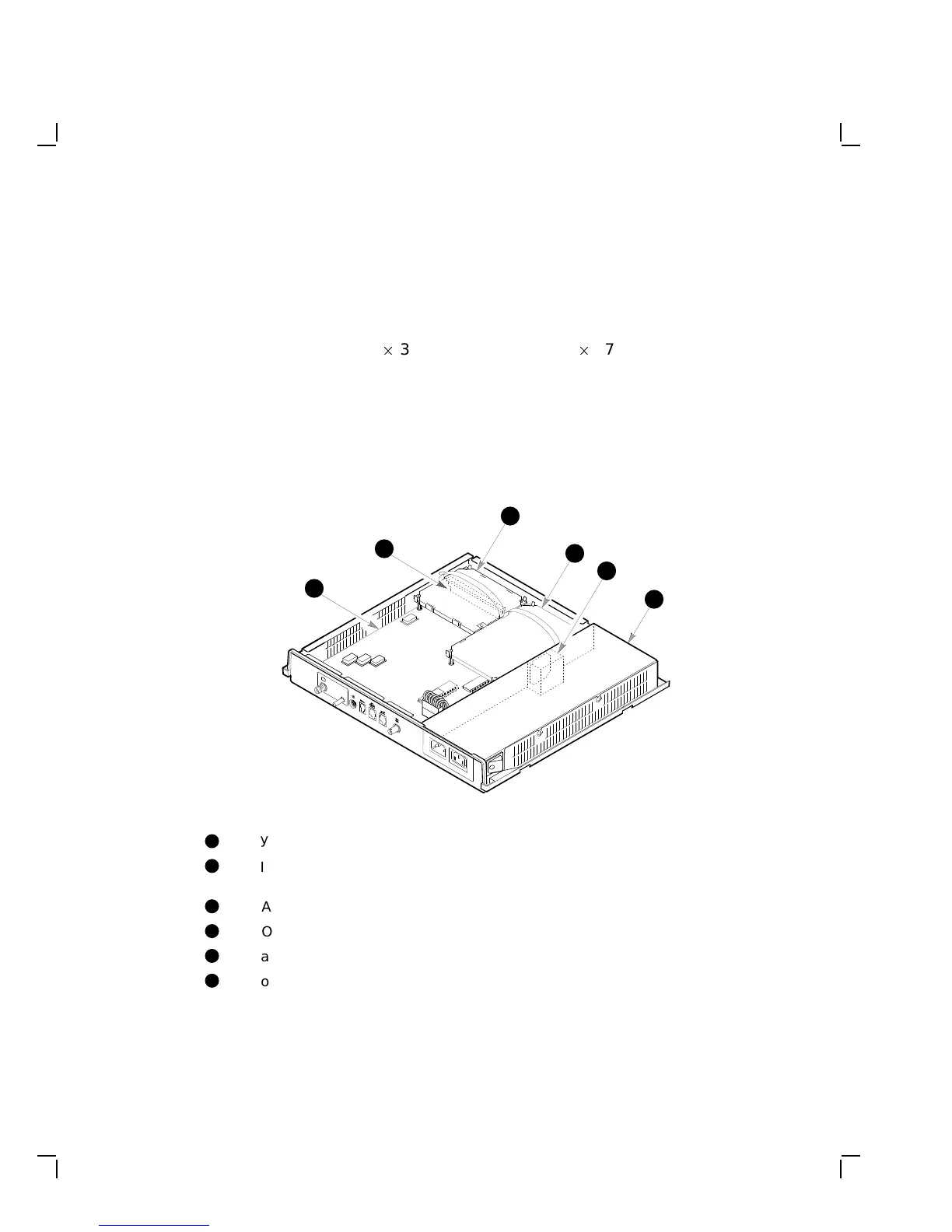

VT1000 and VT1200 System Box FRUs

The system box contains the following ﬁeld replaceable units (FRUs).

Part numbers follow each FRU. Appendix B lists all part numbers.

22%

GSF_1362_89A.DG

System logic board

54-19783-01

SIMM card (installed on the other side of the

RAM controller board)

VX10X-MD

RAM controller board (optional in VT1000) 54-19807-01

ROM memory board (VT1000/VT1200) 54-19803-01 (VX10A)

Fan 70-26582-01

Power supply H7109-A
