Testing 15
GSF_1688_89.DG
From
Pin
1
2
3
To
Pin
6
5
4

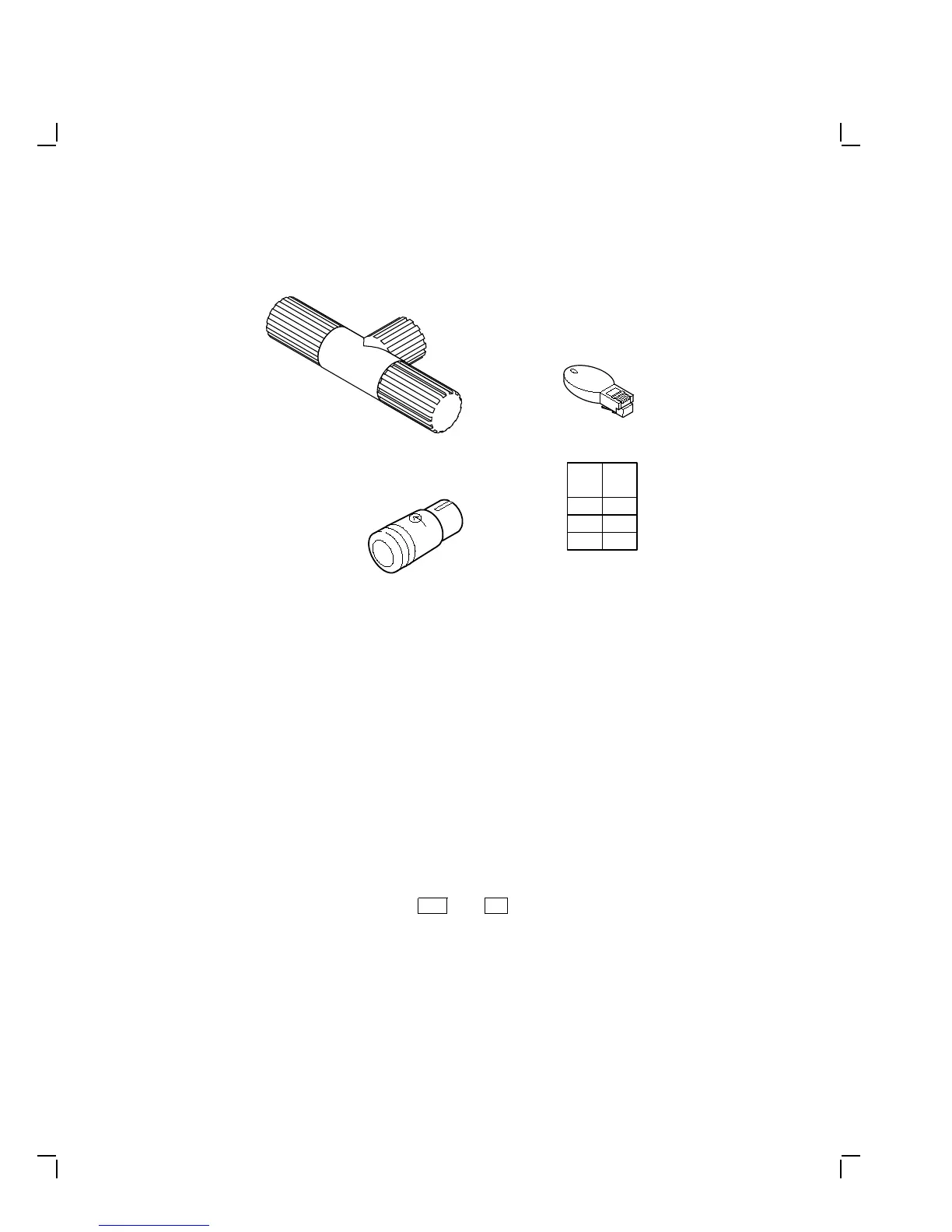

6-Pin Loopback Connector
Ethernet T-Connector
with Terminators
Mouse Loopback Connector
MA-0511-90.DG
To run menu-driven diagnostics:
The terminal must complete the power-up self-tests and display the
Terminal Manager window. You run menu-driven diagnostic tests from
the terminal’s Diagnostics dialog box. Use the following procedure to
display the Diagnostics dialog box and choose tests:
NOTE
Running the menu-driven diagnostic tests resets the terminal and
quits all session activity.
1. Turn on the terminal. After the power-up self-tests are complete, the
Terminal Manager window appears.
2. Press and hold down the
Shift
and
Ctrl
keys on the keyboard.
3. With your other hand, move the mouse until the pointer is on the
Session menu name in the Terminal Manager’s menu bar.
4. Click and hold the left mouse button, known as mouse button 1 (MB1).
The Session pull-down menu appears.
To Next Page
