5.3.2 Position of the appliance
Caution
When installing appliances, respect the IP21 protection rating.

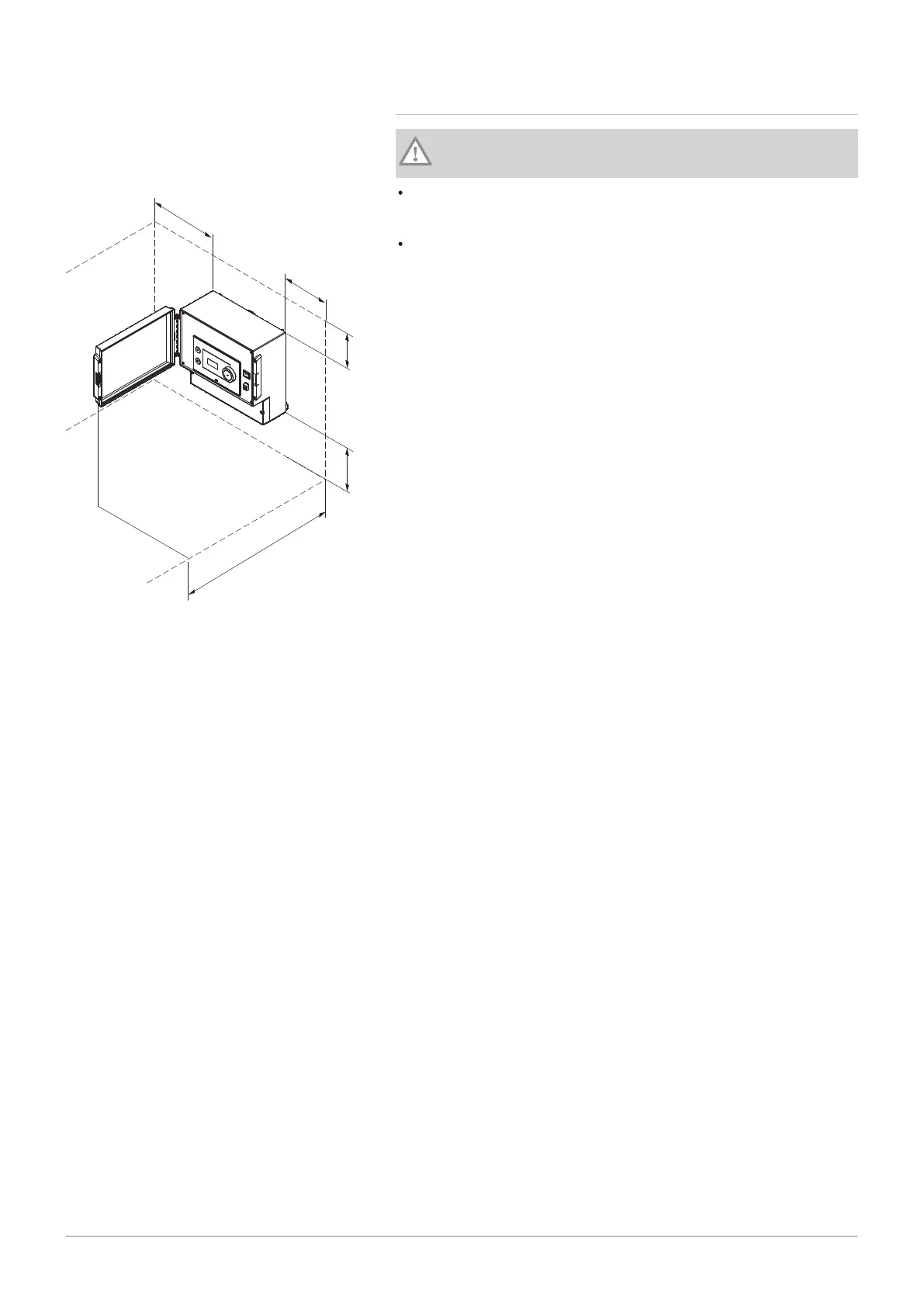

Allow sufficient space around the housing to allow access and facilitate
maintenance. The minimum recommended dimensions are shown in the
illustration in mm.
As standard, the control panel access door opens to the left. If the door's
opening direction is reversed, ensure there is sufficient space on the
right-hand side.
Fig.8
MW-1001102-1
50
20
463
20
20
0
5 Before installation
7703592 - v02 - 14062018 15
