7 Installer instructions

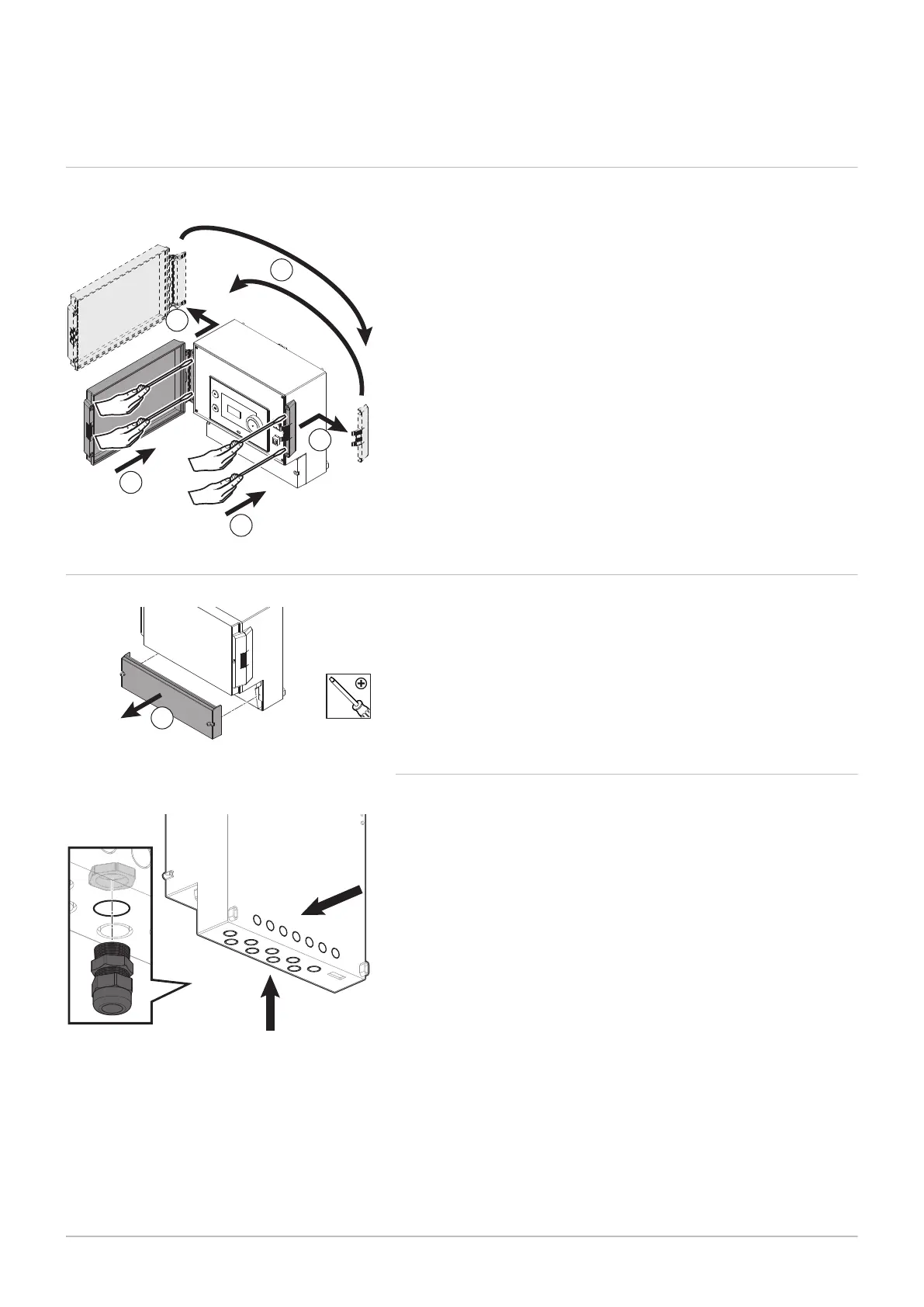

7.1 Reversing the opening direction of the box door
The access door is delivered from the factory to open to the left It is
possible to reverse the opening direction of the door:
1. With the door open, use a screwdriver to unclip the door and the
support.
2. To remove them, push towards the back of the box.
3. Reverse the support and the door.
4. Clip both elements back into place.
7.2
Accessing the connection terminal block
1. Remove the lower cover by unscrewing the two screws.
7.2.1 Cable routing
A-B
Routing of the cables to the connection terminal blocks, through
the cable glands
1
1
2
2
3
MW-1001103-1
Fig.15
MW-1001104-1
1
Fig.16
MW-1001098-1
A
B
