6.4.1 Electrical connections
For this configuration, the AD249 and AD134 packages should be installed
for the Mod-BUS connection.
1. Make the connections on the slave box.
Tab.14
1 Domestic hot water circulation loop pump
2 DHW booster pump
3 Domestic hot water temperature sensor, high position
4 Domestic hot water temperature sensor, low position
5 Flow temperature sensor after mixing valve
6 Pump for heating circuit with mixing valve
7 Three-way mixing valve
8 "Room Unit" programmable room thermostat
9 Safety thermostat with manual reset, for underfloor heating
10 Flow temperature sensor after mixing valve
11 Pump for heating circuit with mixing valve
12 Three-way mixing valve
13 "Room Unit" programmable room thermostat
14 Safety thermostat with manual reset, for underfloor heating
15 Flow temperature sensor after mixing valve
16 Pump for heating circuit with mixing valve
17 Three-way mixing valve
99 Bridging
2. Make the Mod-BUS connection to the two generators.
6.4.2 System configuration
For this hydraulic configuration, certain parameters must be adapted.
1. Select the Cascade Producer Manager Algicon.
2. Select Enable master func.
3. Select Yes.
4. Select the Cascade Producer Manager Algicon.

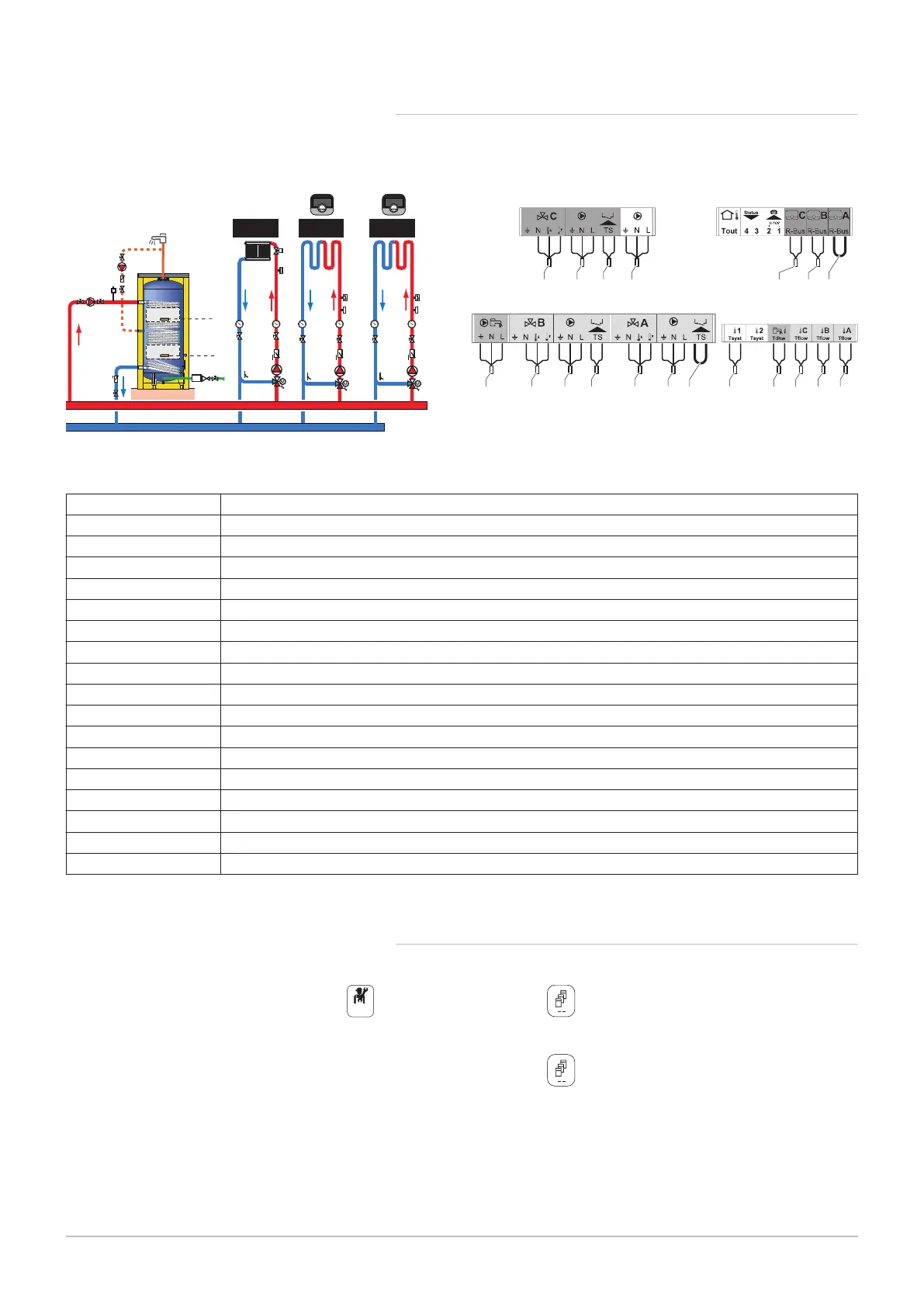

Fig.14
2
1
12 7
17
3 4 15 10 5
MW-1001114-1
99611 9
16 14
13 8
99
12
11
10
9
6
7
5
3
1
4
2
17
16
15
14
8 13
CIRCA CIRCB CIRCC
On
