DeDietrich VM Diematic Evolution - Description of the CB-05 Connection PCB; Standard Delivery; Accessories & Options

Circuit A Circuit B Circuit C
(with AD249 op
tion)
AUX circuit
(with AD249 op
tion)
Domestic hot wa
ter circuit
Domestic hot water produc
tion
Yes Yes Yes Yes Yes
Domestic hot water produc
tion, electric only
Yes Yes Yes No No
Stratified tank (2 sensors) No No No No Yes
Deactivation Yes Yes Yes Yes Yes
4.3.2

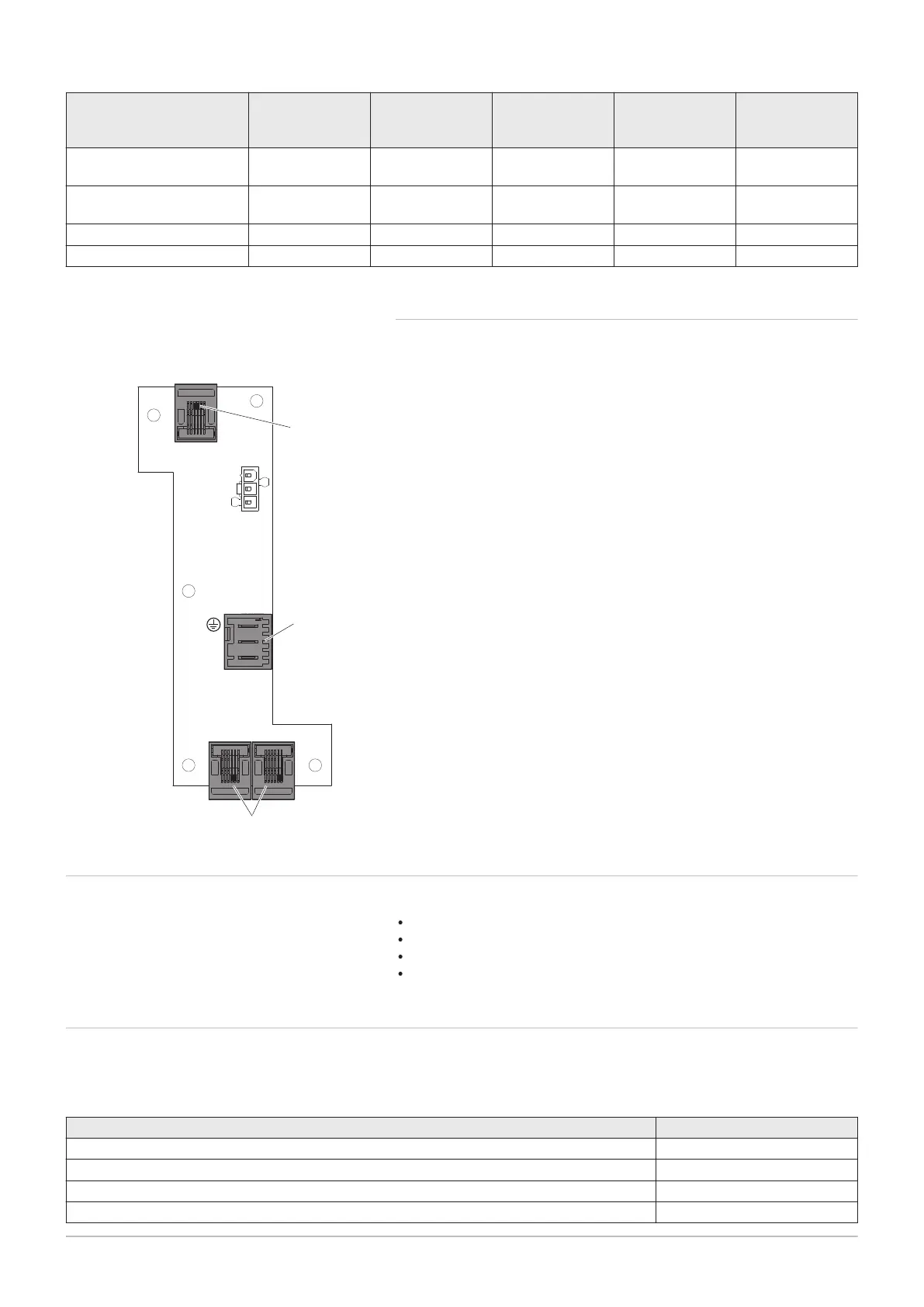

Description of the CB–05 connection PCB
The connection PCB connects the power supply and the S-Bus to the box.
1 Electrical power supply
2 S-BUS connection to the EEC-01 PCB
3 S-BUS connection to other boxes or generators
4.4 Standard delivery
The delivery includes:
the housing
the connectors
the cable glands
the installation, use and maintenance manual
4.5
Accessories & options
Various options are available, depending on the configuration of the
installation and the country.
Tab.2
Description Package
S-Bus cable with terminals, 1.5 m AD308
S-Bus cable with terminals, 12 m AD309
S-Bus cable with terminals, 20 m AD310
S-Bus terminals AD321
Fig.6
MW-1001100-1
1
2
3
L
N
4 Description of the product
12 7703592 - v02 - 14062018
