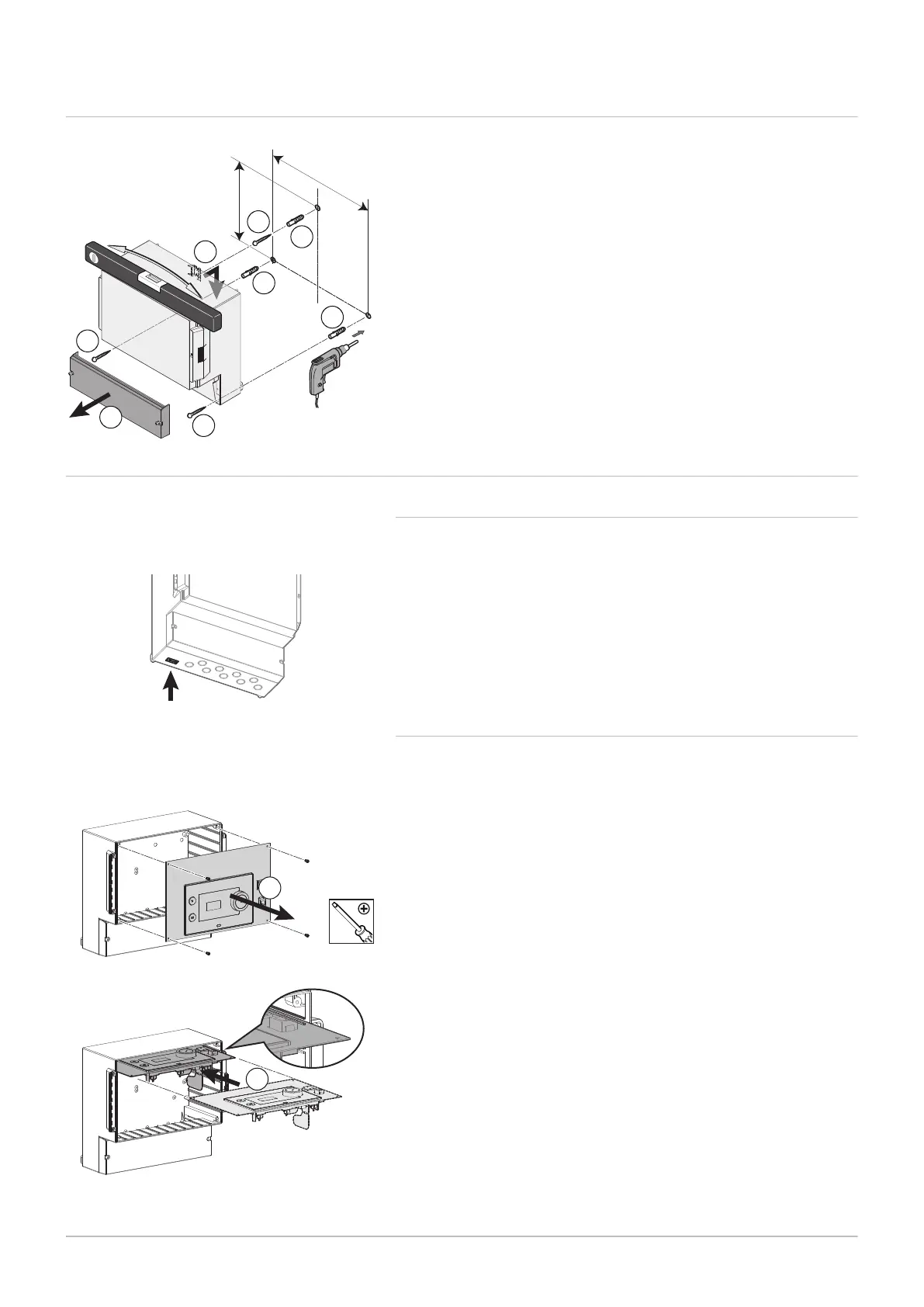

7.3 Fit the housing to the wall
1. Drill three holes in the wall and insert the dowels.
2. Fit the upper screw, leaving 3 mm between the wall and the head of
the screw.
3. Hang the housing on the wall on the locating screw.
4. Remove the cover from the housing.
5. Fit the two lower screws.
7.4 Connecting the box to a generator or to another box
7.4.1 Connect an S-BUS cable
To connect a S-BUS cable with RJ-11 connectors, proceed as follows:
1. Connect the cable to one of the sockets on the lower part of the box.
For lengths greater than 20 metres, use a straight RJ12-type cable.
The length of the bus cable must not exceed 100 metres.
7.4.2 Connect a Mod-BUS cable
To connect a Mod-BUS cable with mini-DIN connectors, proceed as
follows:
1. Remove the front panel of the box by unscrewing the four screws.
2. Place the front panel in the maintenance position by sliding it into the
upper grooves on the box.
