6

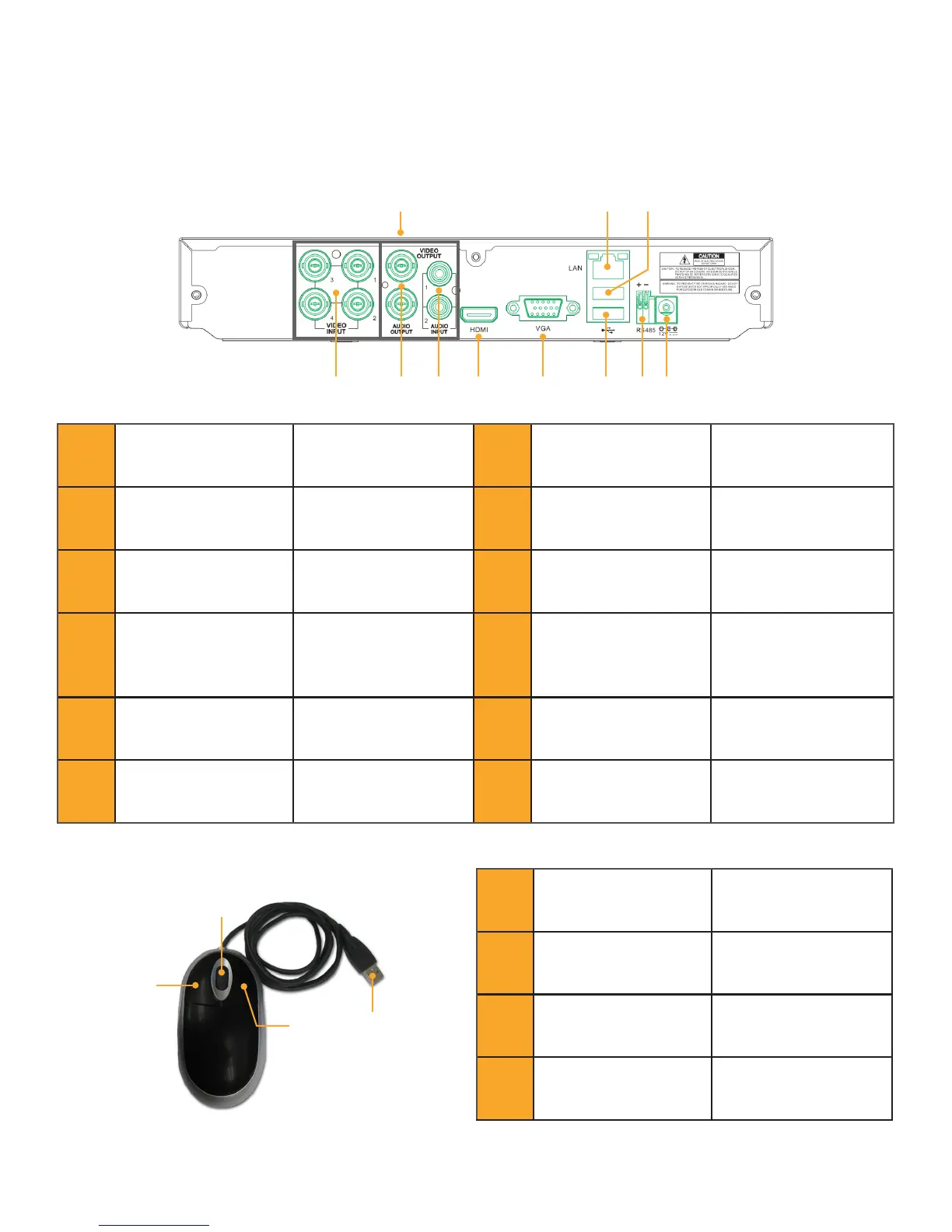

Buttons and Connections
DVR Back
*May not be exactly as shown
1
4
2
3
5 6 7 8 9 10 11
1 Video Output
Accepts up to
two monitors
7 HDMI Input Connect HDMI cable
2 LAN Connection Connects to router 8 VGA Input Connect VGA cable
3 USB Mouse Port
Connect to USB Input
(before power up)
9 USB Port
Connect USB drive
for backup
4 Camera Connect
Camera connections
(4/8 or16 Channels)
10 PTZ Input
Connects to two-wire
PTZ camera
(not included)
5 Audio Output
Connects to speaker or
audio input
11 Power Connection Connect power adapter
6
Audio Input Accepts a microphone
and/or audio-supported
camera (not included)
Mouse
1
2
3 4
1 Select
Click to select
highlighted object
2 Scroll Wheel No function for DVR
3 Deselect
Click to exit current
menu. Opens submenu
in LIVE view
4 USB Connection
Connect to top USB
port on back of DVR
